Product Overview

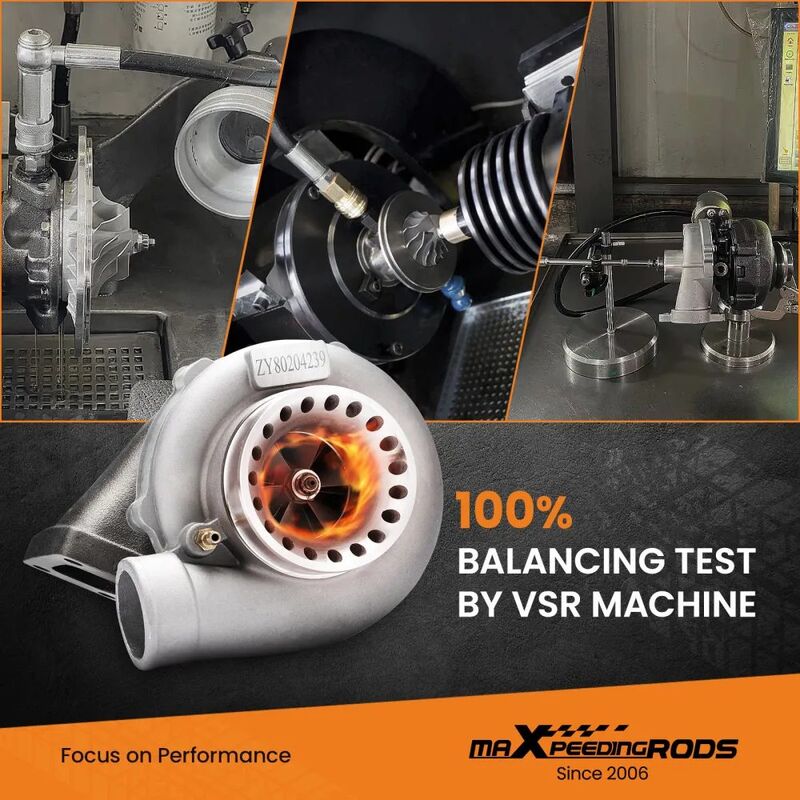

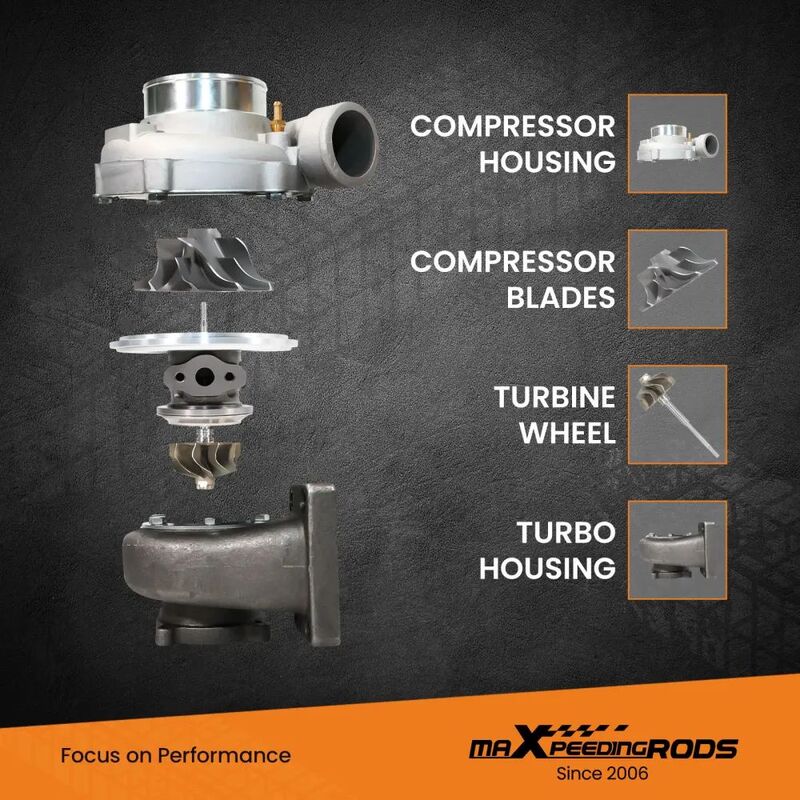

Feature Product Material 1. Turbine Housing: Ductile Iron QT450-10 - Temperature Resistant Up To 700℃ 2. Steel turbine Wheel: K418 Alloy - High Oxidation Stability And Resistance Up To 900℃ 3. Compressor Housing: ZL104 Aluminum With Lightweight 4. Compressor Wheel/Blades: Cast Aluminium Blades - Superior Air Tightness & Corrosion Resistance Product Performance 1. Cost-effective Turbo Increase 20-40% Power For Your Car 2. Rich Experience In Turbo Production And Own Factory 3. High-Speed Oil Seal Ring And Precision Clearance 4. Built For Durability And Strength Technology Advantage: 1. 100% Balancing Test By TURBOTECHNICS VSR3 2. G3-Min-Flow VNT Turbo Testing 3. Advanced Actuator Tester/Programmer
Specifications
| Turbine Side |
Exhaust |

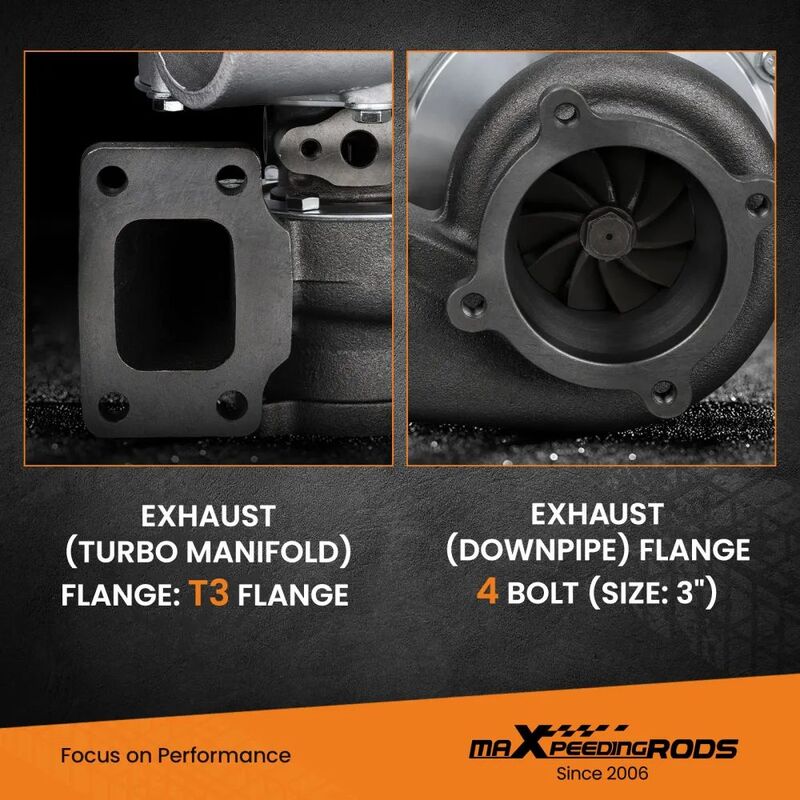

| Inlet Flange |
T3 |
| Flange Exhaust Outlet Flange |
4-Bolt |
| Turbine Trim |
84.2 |
| Turbine A/R |
0.63 |
| Turbine Inducer Diameter |
68mm |
| Turbine Exducer Diameter |
62.4mm |
| Compressor Side |
Compressor |
| Trim |
56.9 |
| Compressor A/R |
0.7 |
| Compressor Inducer Diameter |
61.5mm |
| Compressor Exducer Diameter |
81.5mm |
| Compress Inlet Size(Air intake) |
4 |
| inch (103.5mm) Compressor Outlet Size |
2.5 |
| inch (63.6mm) Bearing Type |
Wet |
| Float Thrust bearing |
270 |

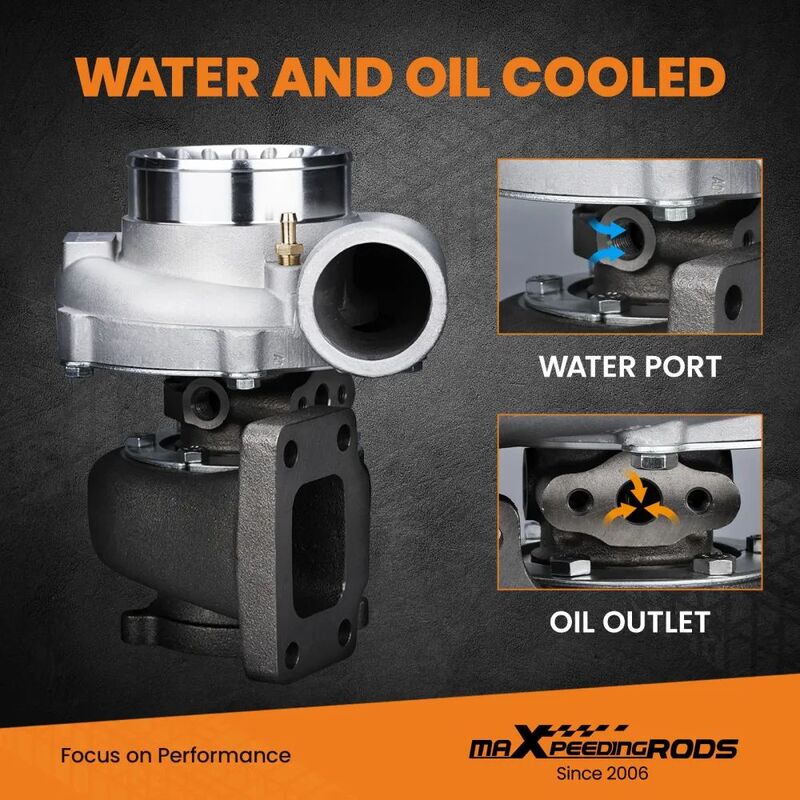

| degree Cooling Type |
Water + |

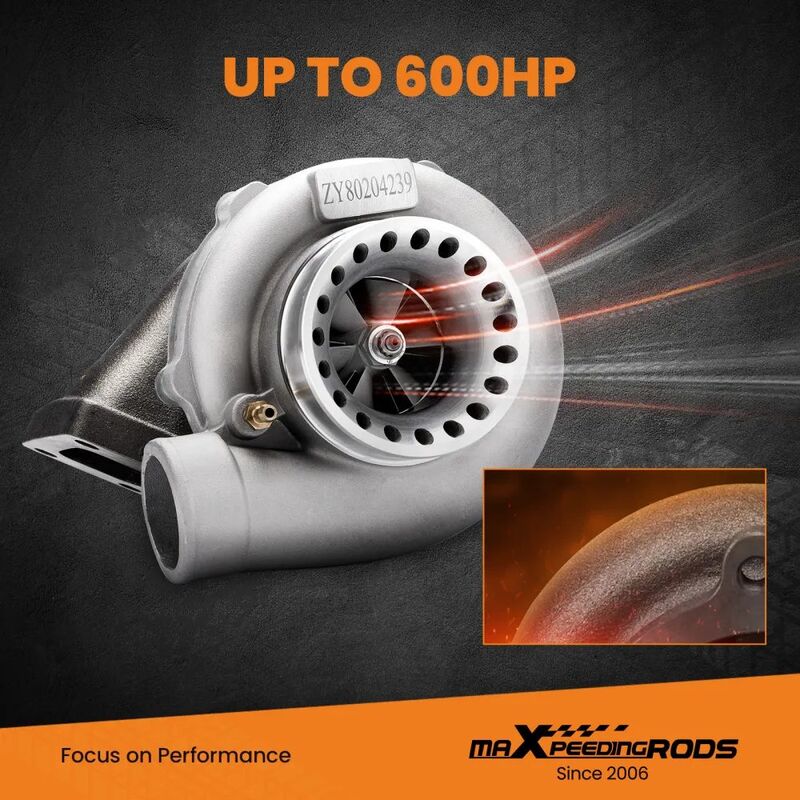

| Oil Cooling Horse Power |
Up |
| to 600HP Turbo Type |
Individual Universal |
Important Notes
1. Please Confirm That There Is Enough Space In Your Car To Install This Turbo Before Purchasing. 2. Lack Of Oil Will Cause The Turbocharger Shaftplay And Damage, Please Adjust The Oil Pressure And Ensure That The Turbocharger Is Fully Lubricated
Vehicle Fitment

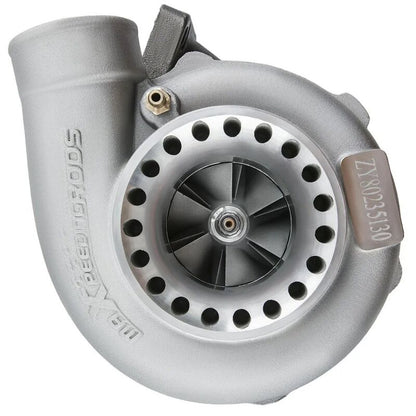

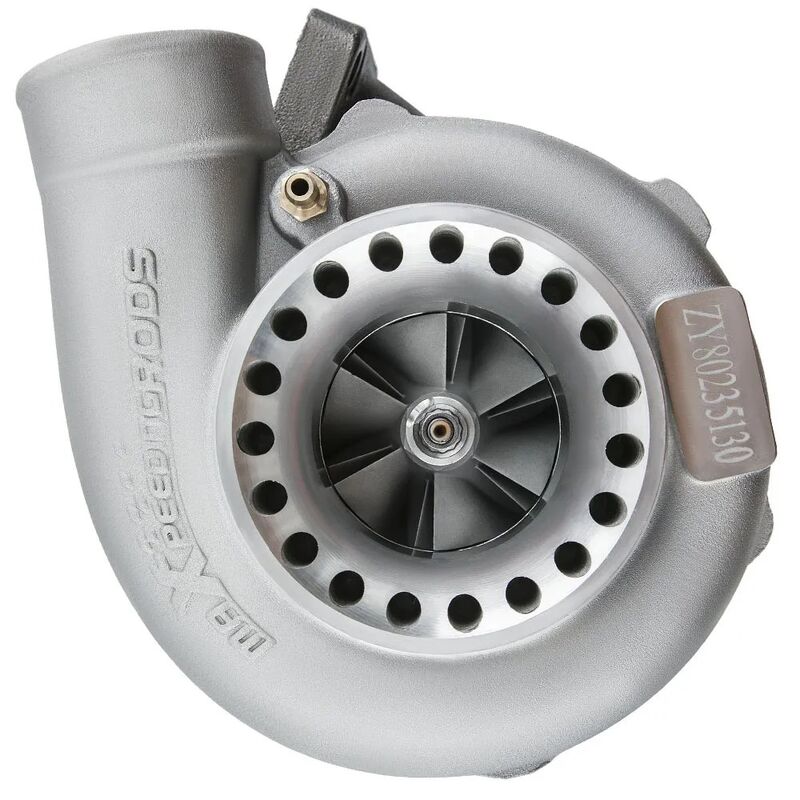

- MAX PEEDING RODS Anti-Surge Compressor Turbocharger Bearing Up To 600HP For GT35 GT3582 Turbo
- Fit For Charger T3 AR.70/63
What’s Included
1 x Turbocharger 2 x Flange gaskets 2 x Oil feed/drain gaskets 1 x Manual 1 x Brochure 1 x Sticker
Package Details
-
Package size (L × W × H): 30 × 30 × 30 cm
-
Packaged weight: 9 kg
-
Shipping volume: 0.027 m³
