Product Overview

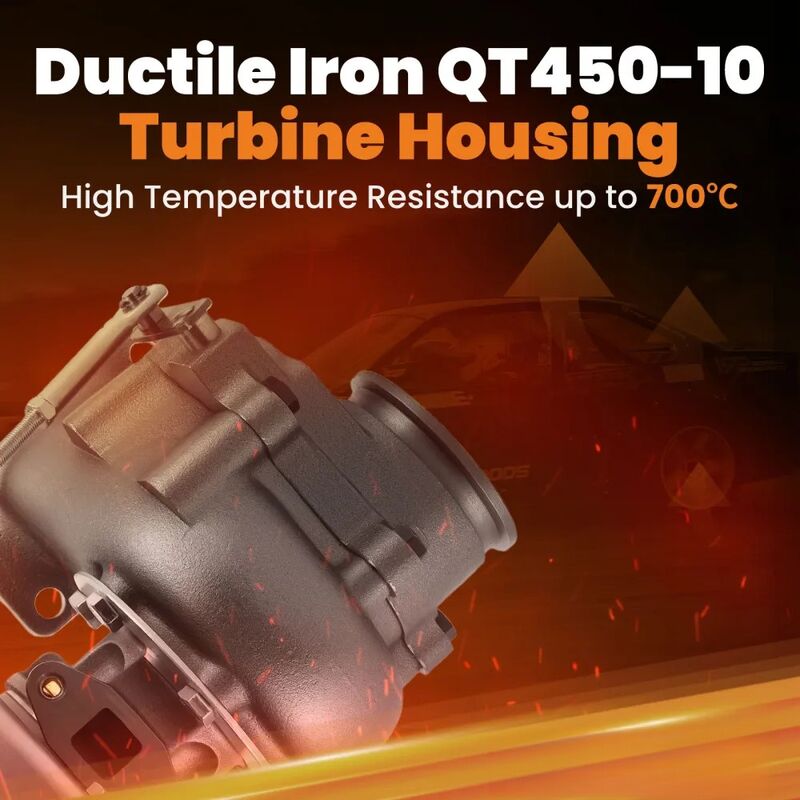

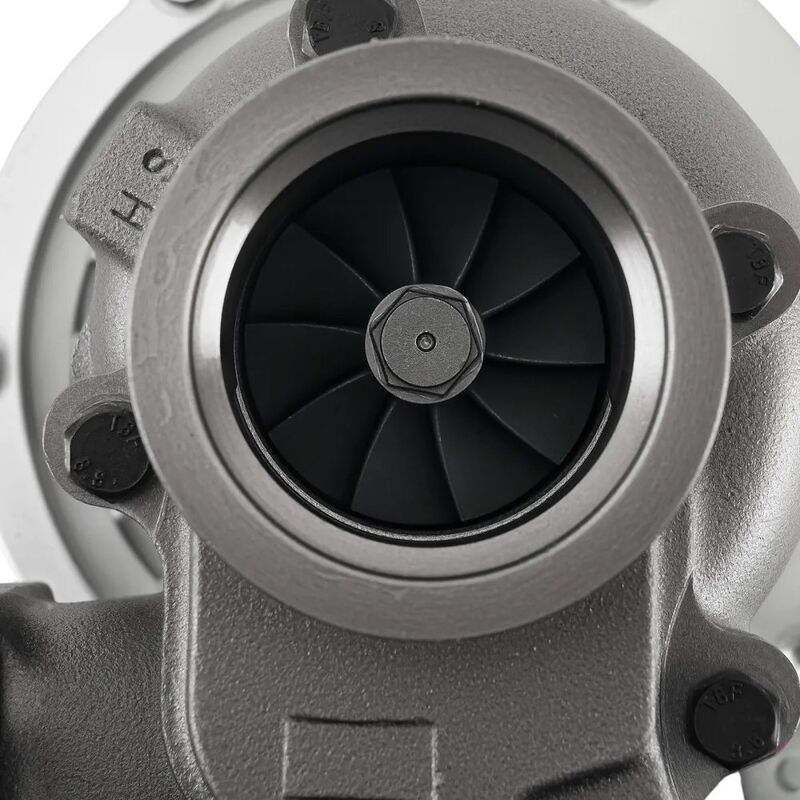

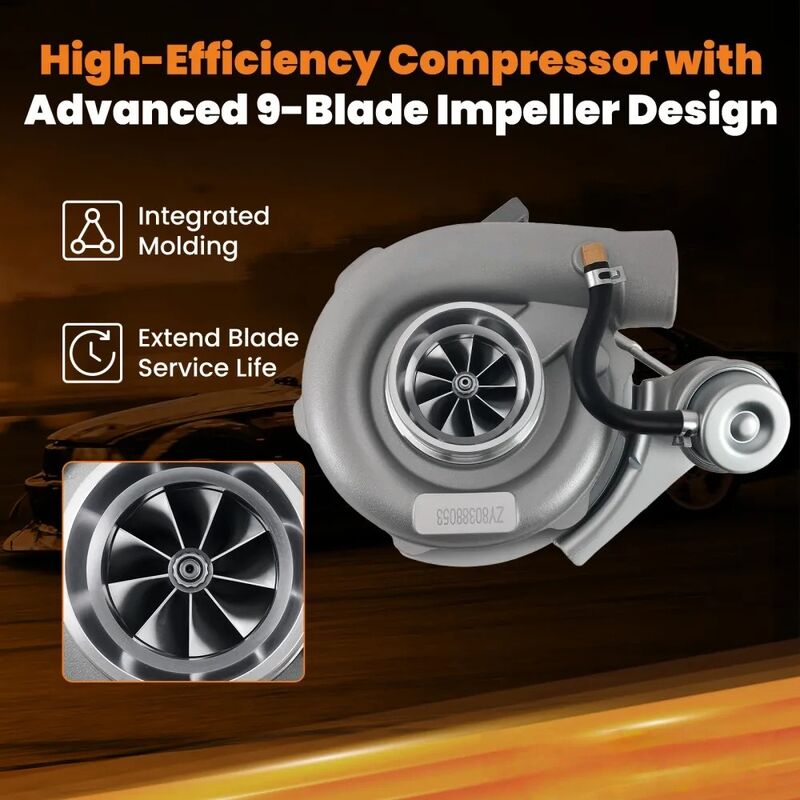

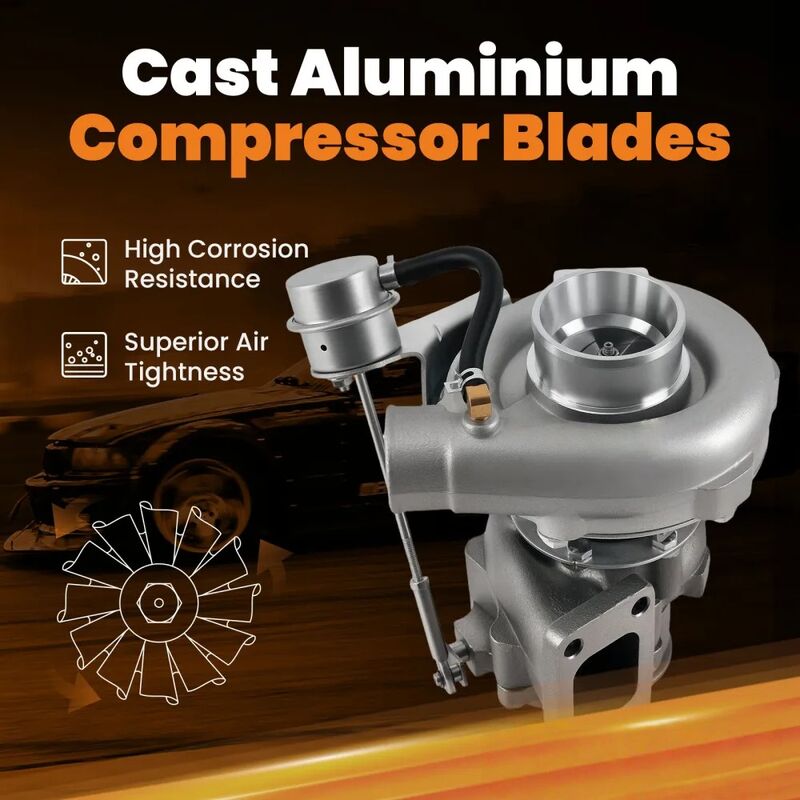

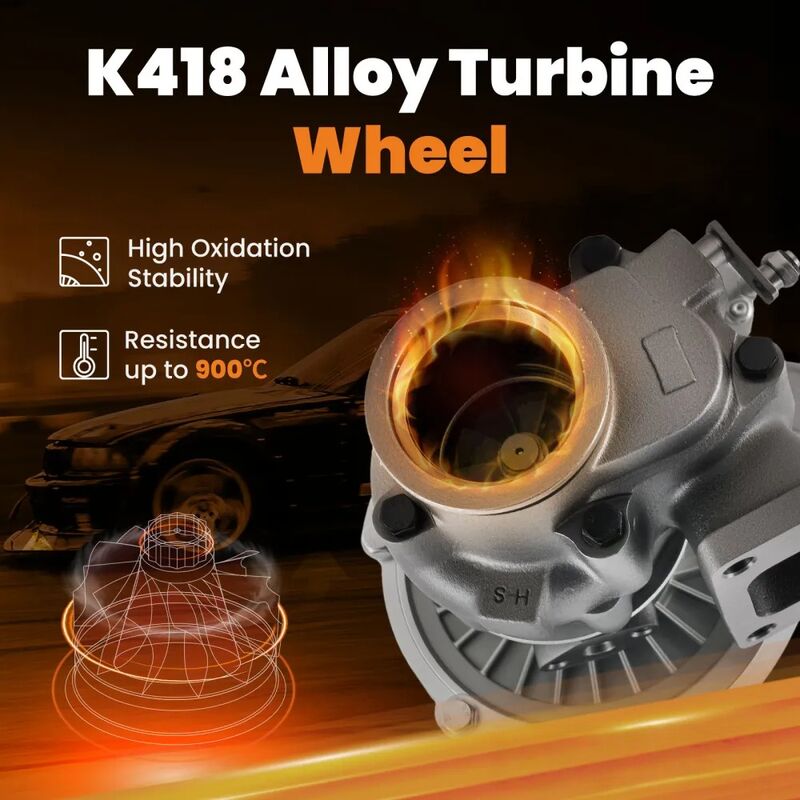

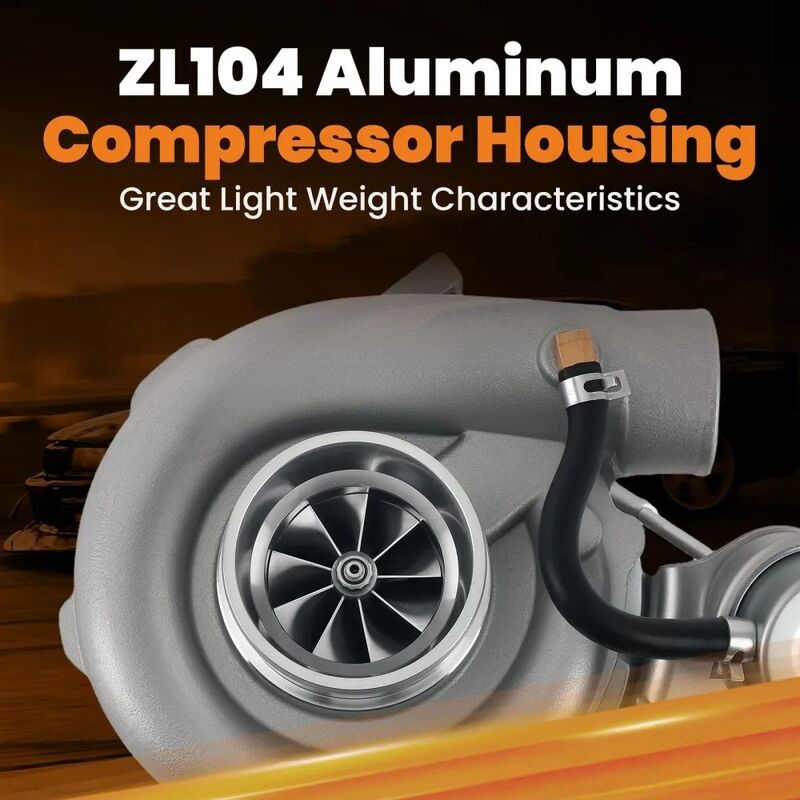

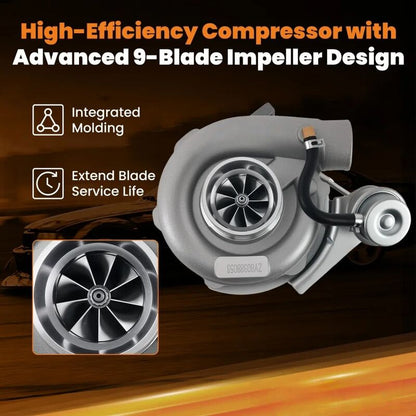

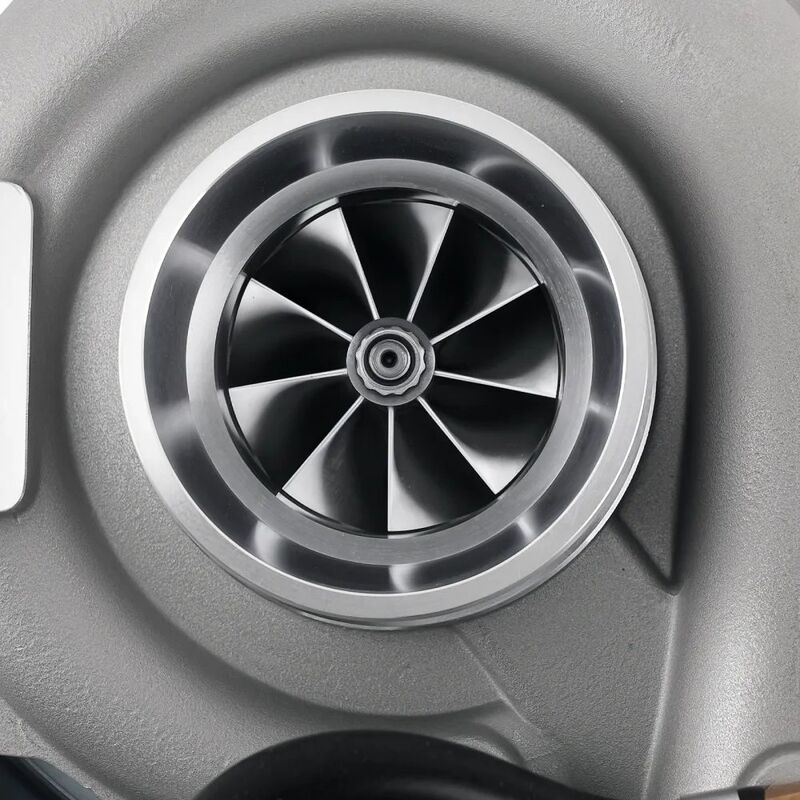

Feature 1. Turbine Housing: Ductile Iron QT450-10 - Temperature Resistant Up To 700℃ 2. Steel Turbine Wheel: K418 Alloy - High Oxidation Stability And Resistance Up To 900℃ 3. Compressor Housing: ZL104 Aluminum With Lightweight 4. Compressor Wheel/Blades: Cast Aluminium Blades - Superior Air Tightness & Corrosion Resistance
Specifications
| Exhaust Inlet (Turbo Manifold) Flange |
T3 4 |
| bolt Flange Patterns Exhaust Outlet Flange |
V-Band |
| Flange (ID/OD |
2.5"/3.1") |
| Turbine Trim |
74.2 |
| Turbine Inducer Diameter |
64.8 |
| mm Turbine Exducer Diameter |
55.8mm |
| Turbine A/R |
0.63 |
| Turbine Exhaust Outlet |
79mm |
| Turbine Exhaust Inlet |
44.7mm（Length）/85.8mm（Width） |
| Compressor Outlet |
78 |
| mm Compressor Inlet |
51.5 |
| mm Compressor Trim |
48.1 |
| Compressor Inducer Diameter |
52.7mm |
| Compressor Exducer Diameter |
76 |
| mm Compressor A/R |
0.5 |
| Bearing |
Journal |
| Bearing Horse Power |
Capable |
| Of Boosting Horse Power Up To 420HP Cooling Type |
Oil |
| Cooled Oil Inlet |
M12 |
| x 1.25 & 2 x M8 x 1.25 Oil Outlet |
2 |
| x M8 x 1.25 Wastegate |
With |
| Wastegate Thrust Bearings |
270 |
| Degrees Turbo Type |
Individual GGTT3GEN2-VL |
Important Notes
This turbo is an universal application turbo, some modification may be required based on individual vehicle. Please check the details carefully before purchasing
Vehicle Fitment
- Fit For 1.5L to 2.5L any 4/6 cylinder engine Note This turbo is an universal application turbo, some modification may be required based on individual vehicle. Please check the details carefully before purchasing.

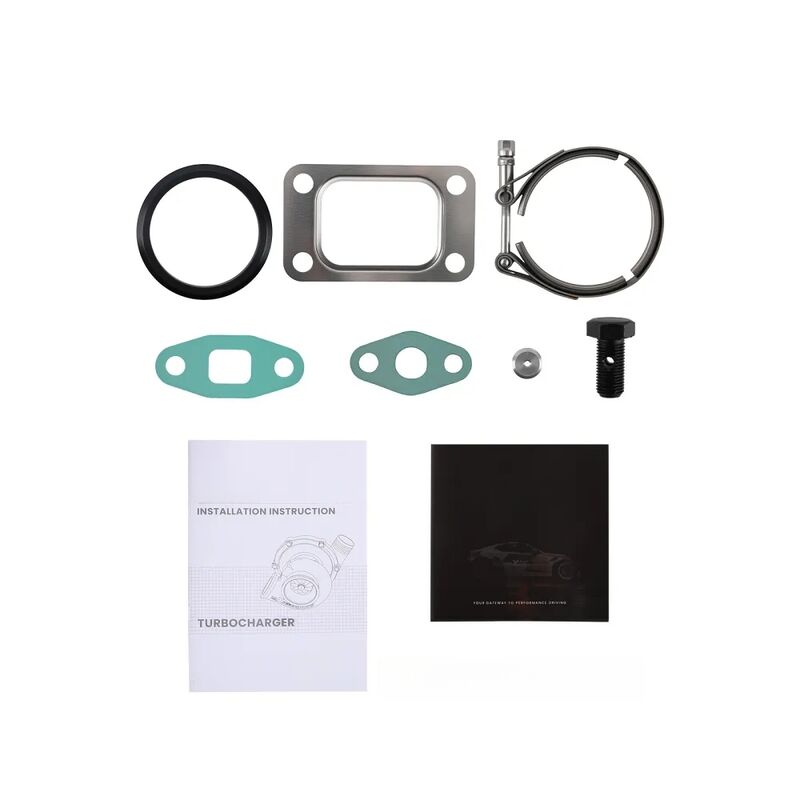

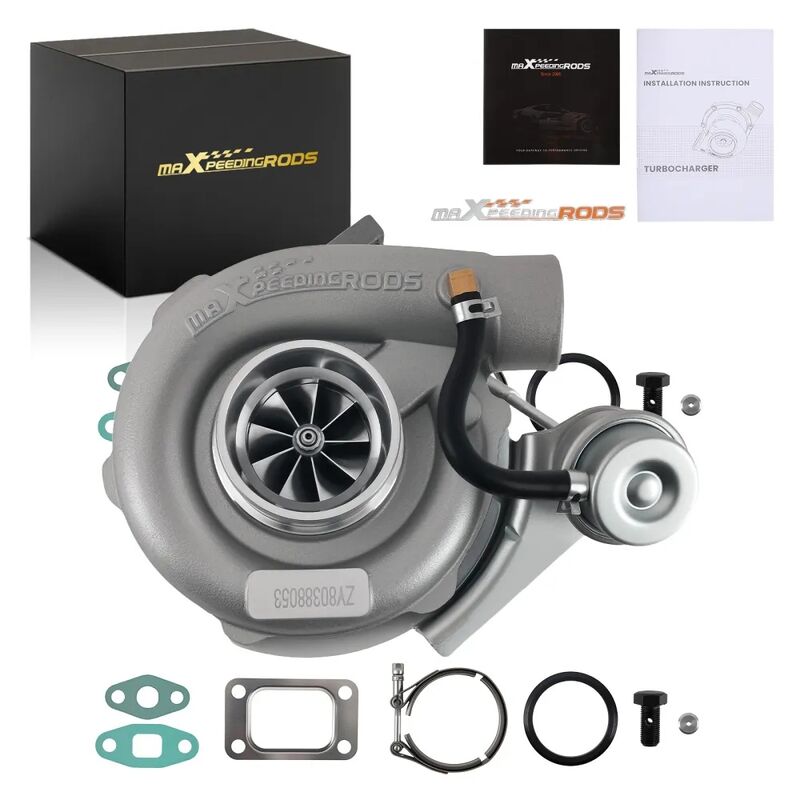

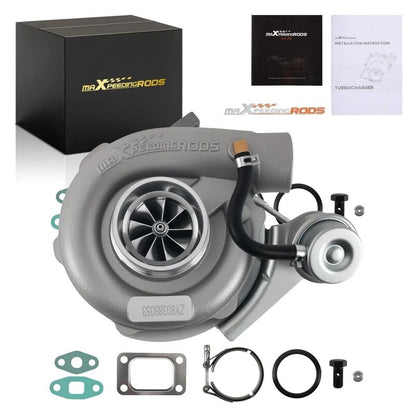

What’s Included
1 x Turbocharger kit
Package Details
-
Package size (L × W × H): 30 × 30 × 30 cm
-
Packaged weight: 9.5 kg
-
Shipping volume: 0.027 m³
