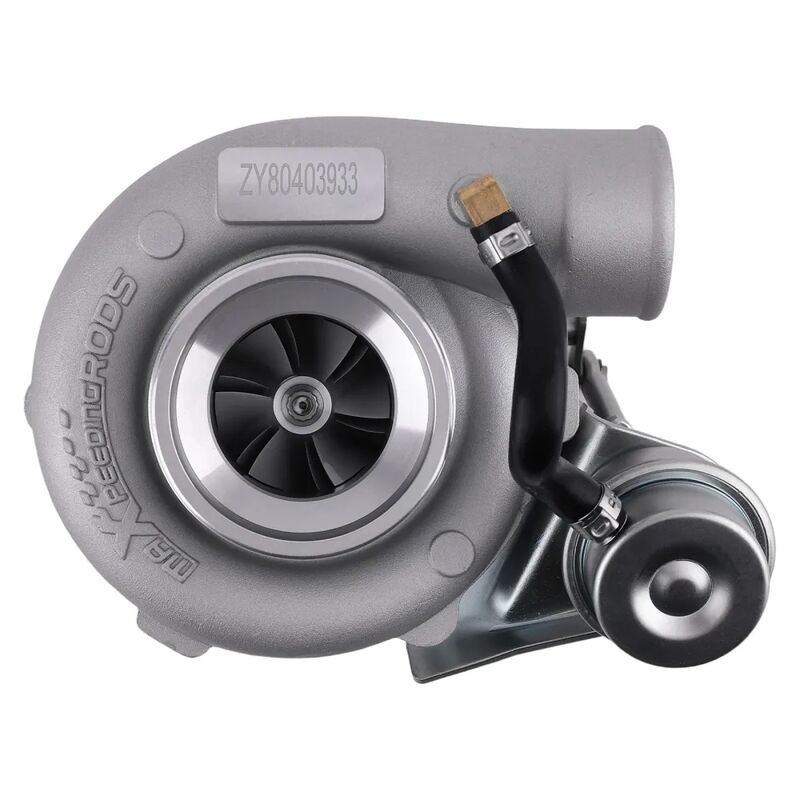

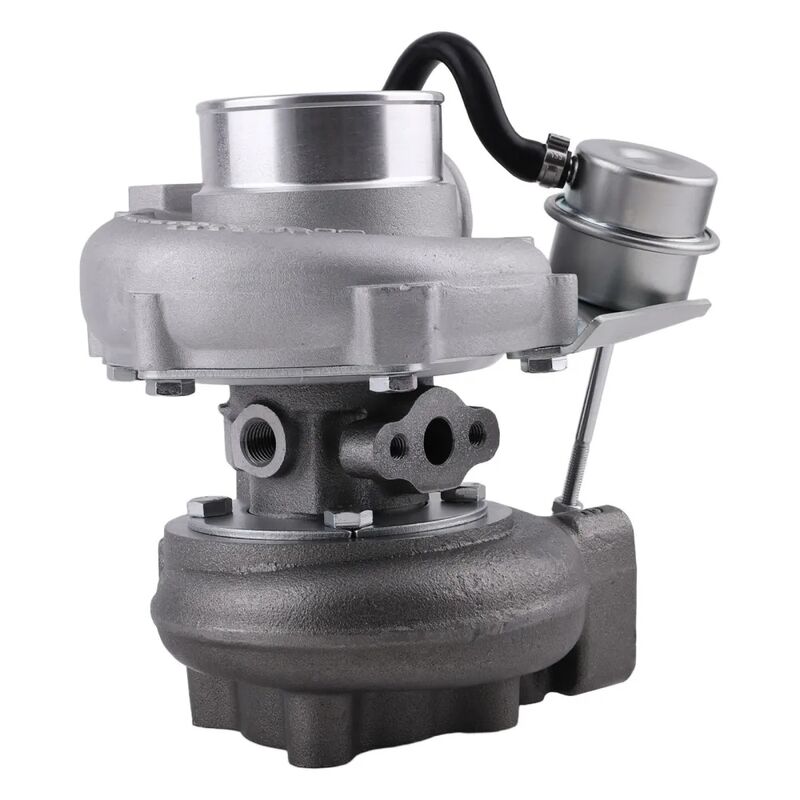

Product Overview

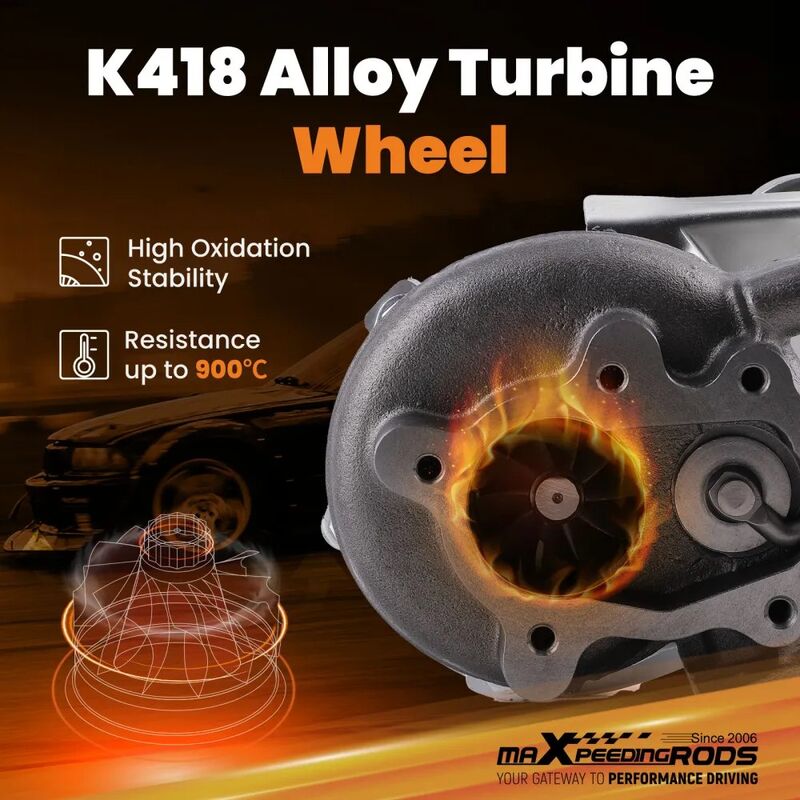

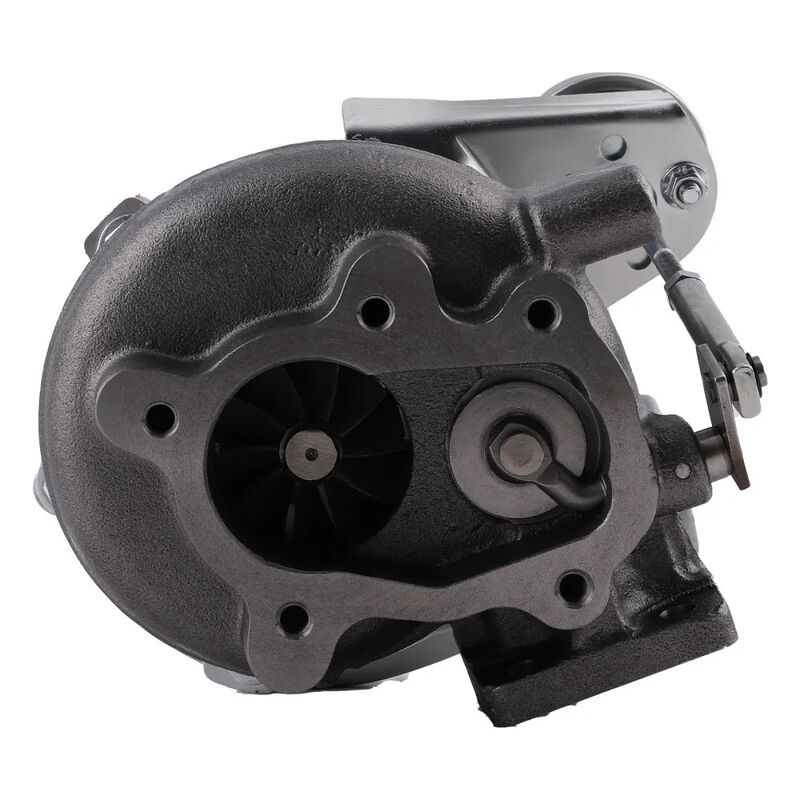

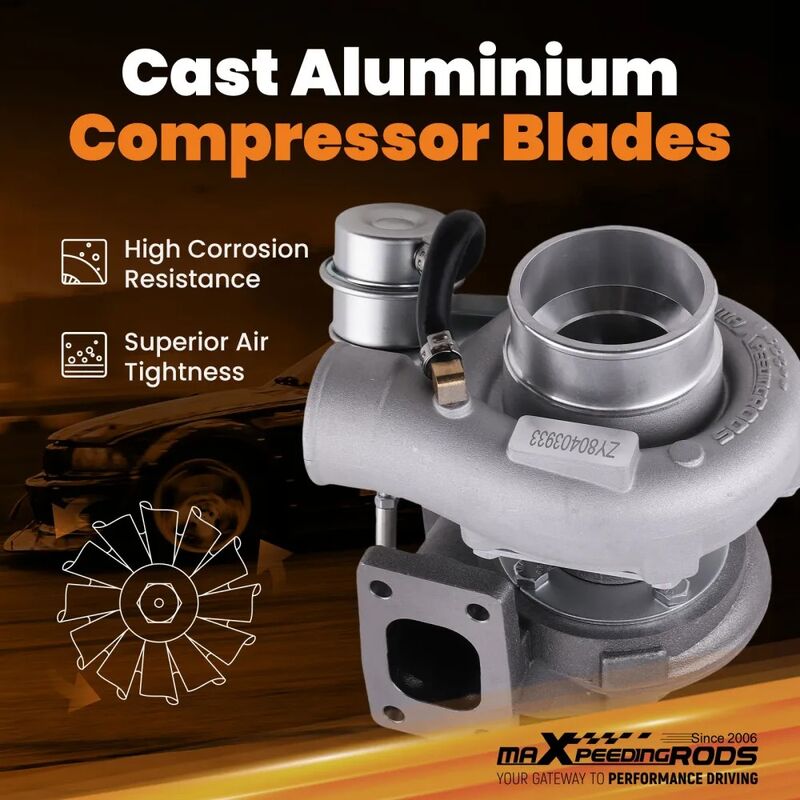

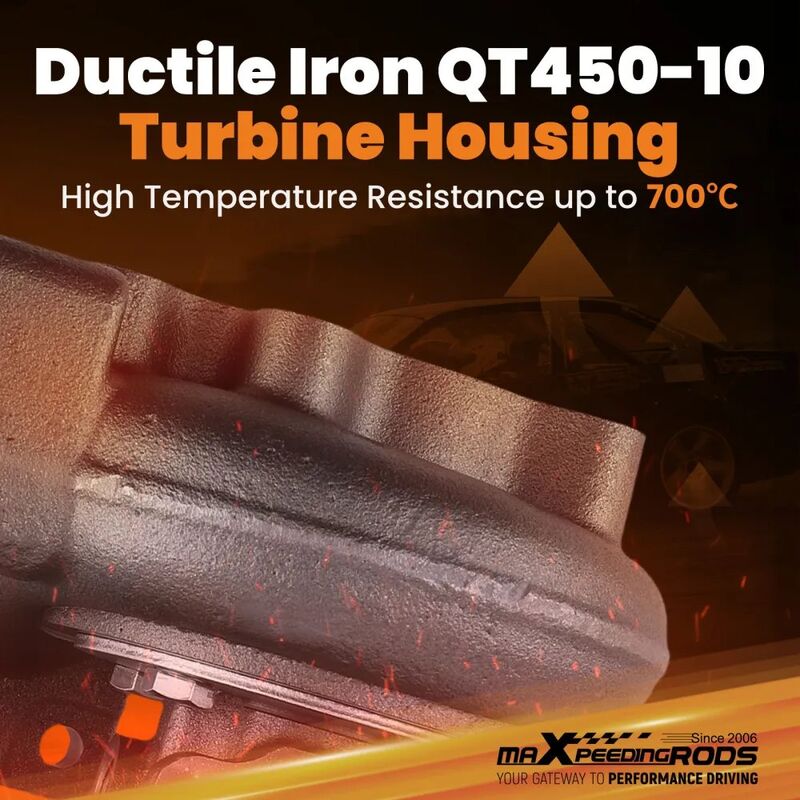

Feature 1. Turbine Housing : Ductile Iron QT450-10 Shell With High-Temperature Resistance Up To 700 Degrees Celsius 2. Steel Turbine Wheel: Made From The Special K418 Alloy To Achieve High Oxidation Resistance And Stability Under High Temperatures Up To 900 Degrees Celsius 3. Compressor Wheel/Blades: Cast Aluminium With Good Gas Tightness And Corrosion Resistance 4. Capable Of Boosting Horse Power Up To 350 BHP
Specifications
| Exhaust Inlet (Turbo Manifold) Flange |
Standard |
| T25 Flange Exhaust Outlet Flange |
5-Bolt |
| Turbine Trim |
76 |
| Turbine A/R |
0.64 |
| Turbine Inducer Diameter |
53.8mm |
| Turbine Exducer Diameter |
47mm |
| Compressor Trim |
48 |
| Compressor A/R |
0.60 |
| Compressor Inducer Diameter |
49.2mm |
| Compressor Exducer Diameter |
71 |
| mm Bearing Type |
Wet |
| Float Cooling Type |
Water + |
| Oil Wastegate |
With |
| Wastegate Oil Restrictor |
Yes |
| Oil Restrictor Size |
Inside |
| Diameter 2mm Oil Feed Size |
12mm |
| Oil Inlet |
M12 |
| x 1.25 Oil Drain Size |
14mm |
| Oil Outlet |
M14 & 2 |
| x M8 x 1.25 Oil Drain Thread Pitch |
40mm |
| Water Thread Size |
M14 |
| x 1.5 Horse Power |
Boost Horse Power Up To 350BHP GGT2871-NPVL |
Important Notes
This turbo is an universal application turbo, some modification may be required based on individual vehicle. Please check the details carefully before purchasing
What’s Included

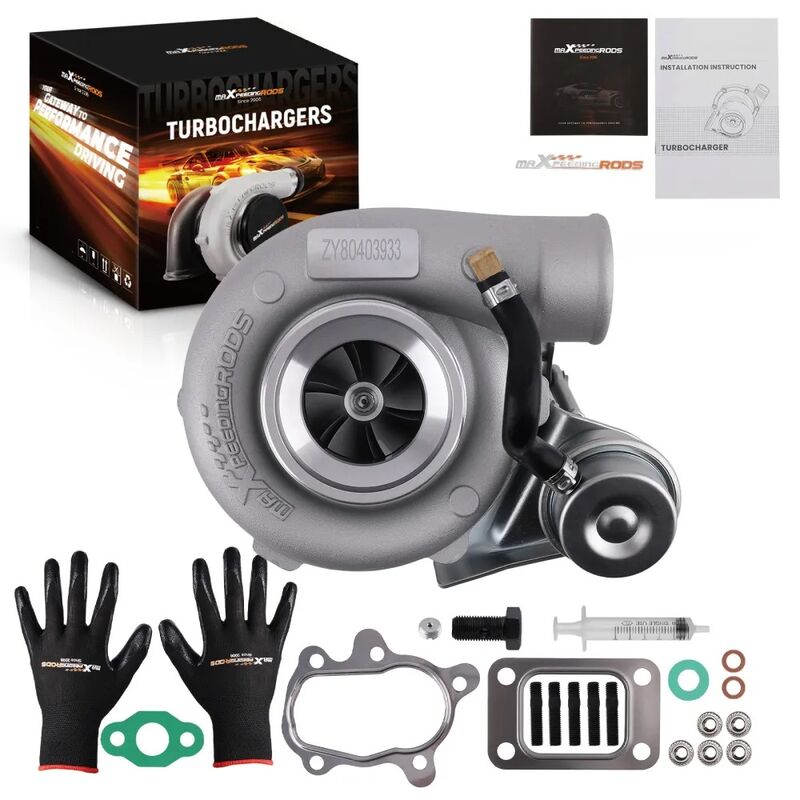

1 x Turbocharger kit
Package Details
-
Package size (L × W × H): 30 × 30 × 30 cm
-
Packaged weight: 8 kg
-
Shipping volume: 0.027 m³
