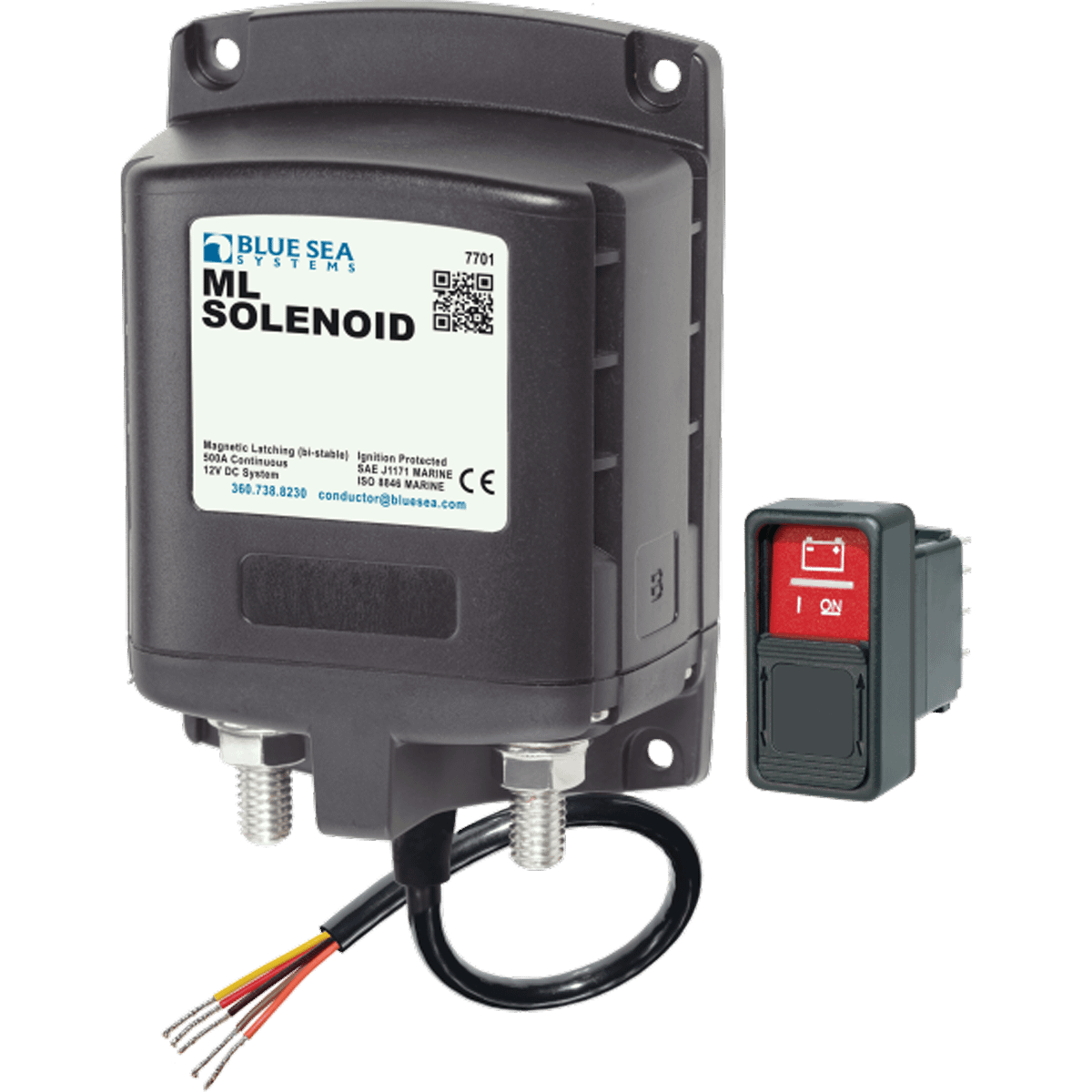

ML Solenoid – 12V DC 500A BS-7701
ML Solenoid – 12V DC 500A BS-7701
SKU:BS-7701
Regular price
$369.00 AUD
Regular price
Sale price
$369.00 AUD
Unit price
/
per
Couldn't load pickup availability
Features
ML Solenoid – 12V DC
- ML-Series Remote Control Contura Switch PN 2145 available as a seperate item.
- 500 Ampere continuous rating for engine, inverter, house loads, and emergency battery combine
- Magnetic latching draws no current in “ON” or “OFF” state, only draws current when changing state of switch
- Silver alloy contacts provides high reliability for switching live loads
- 3/8″ -16 tin-plated copper studs for maximum conductivity and corrosion resistance
- 7/8″ (22mm) stud length accepts multiple cable terminals
- Label recesses for circuit identification
Specifications
| ML Solenoid – 12V DC | |
|---|---|
| Control Circuit Connection | Tinned Wire |
| Nominal Voltage | 12V DC |
| Manual Control | No |
| Coil Function | Bi-Stable |
| Mounting | #10 |
| Amperage Operating Current continuous | 0A |
| Terminal Stud Torque | 140 in-lb (15.82 Nm) |
| Continuous Rating | 500A |
| Intermittent Rating | 700A (5 min) |
| Cranking Rating 10 sec | 2500A |
| Cranking Rating 1 min | 1100A |
| Cable Size to Meet Ratings | 2x (4/0) |
| Terminal Ring Diameter Clearance | 1.18in (29.97 mm) |
| Terminal Stud Length | 0.875in (22.23 mm) |
| Terminal Stud Size | 3/8″ – 16 (M10) |
| Weight | 0.79 kg |
