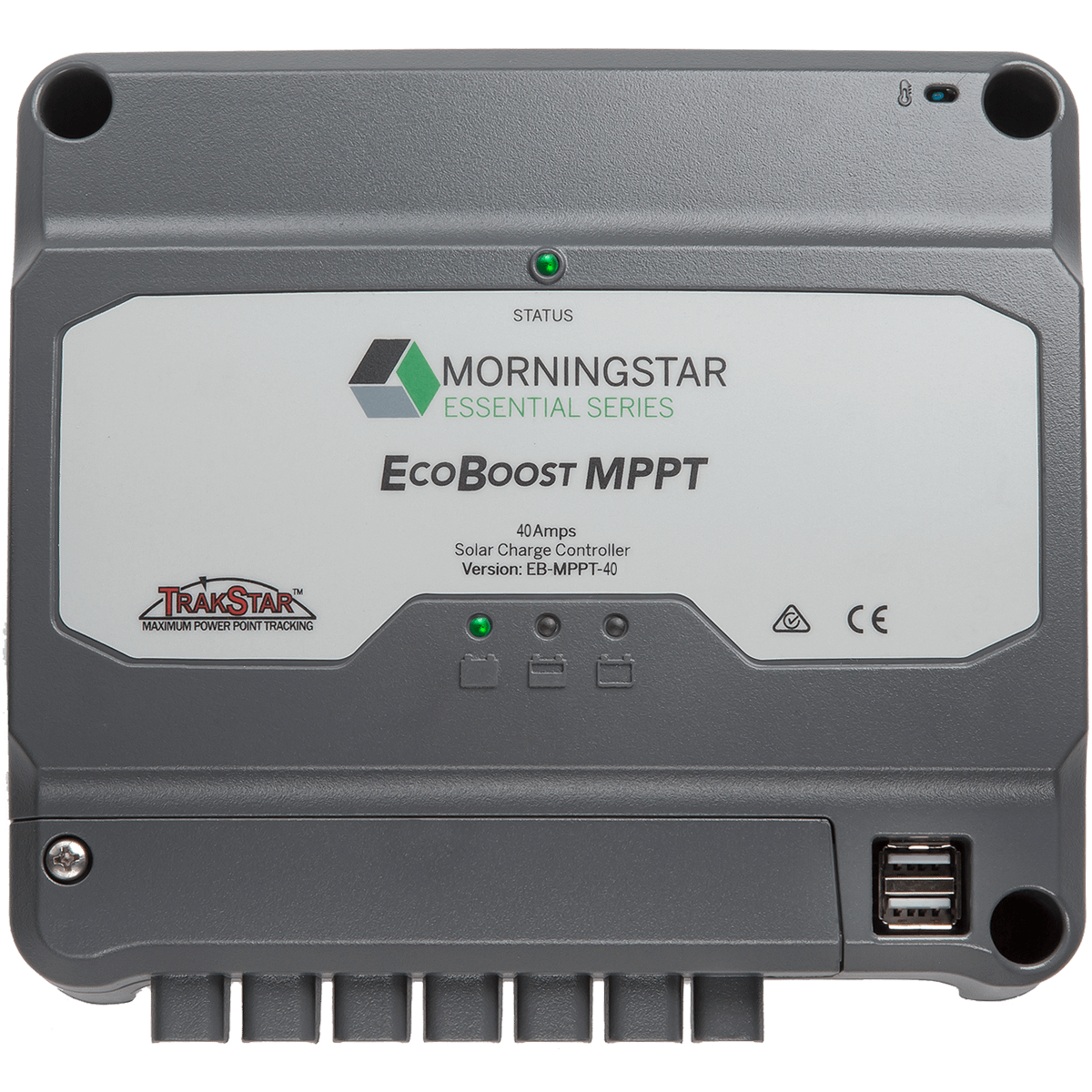

Morningstar EcoBoost MPPT Solar Controller
Morningstar EcoBoost MPPT Solar Controller
SKU:SR-EB-MPPT-20
Regular price
$383.00 AUD
Regular price
Sale price
$383.00 AUD
Unit price
/
per
Couldn't load pickup availability
Features
The EcoBoost MPPT™ is a Maximum Power Point Tracking (MPPT) solar charge controller within Morningstar’s Essential Series™. This controller was developed for residential and leisure consumer applications where an MPPT controller is desired to provide additional power and accommodations for modules that are not supported by other types of controllers. Metered and non-metered versions of this product are available at 20, 30, and 40 amp charge ratings for 12 and 24 volt battery systems.
- Two USB-A ports for charging multiple mobile phones/tablets
- 3 Amps of USB charging capacity
- Metered and non-metered versions
- Four stage battery charging
- Dusk ‘til dawn lighting control
- Load control
- Electronic and environmental protections
- Wide operating temperature range
Specifications
| Morningstar EcoBoost MPPT 20amp | Morningstar EcoBoost MPPT 30amp | Morningstar EcoBoost MPPT 40amp | |
|---|---|---|---|
| SKU | SR-EB-MPPT-20 SR-EB-MPPT-20M |
SR-EB-MPPT-30 SR-EB-MPPT-30M |
SR-EB-MPPT-40 SR-EB-MPPT-40M |
| Electrical | |||
| Nominal Battery Voltage | 12V or 24V auto-detect | ||
| Battery Voltage Range | 10-35V | ||
| Voltage Accuracy | <= 0.1% +/- 50mV | ||
| Maximum Battery Current | 20A, 30A or 40A | ||
| Maximum PV open-circuit voltage | 120V | ||
| Load Current Rating | 20A, 30A or 40A | ||
| Self-Consumption | <1.2 Watts | ||
| LED Indications | (1) status, (3) Battery state of charge | ||
| Transient Surge Protection | 1500 Watts (solar, battery, load) | ||
| Environmental | |||
| Operating Temperature | -40°C to + 60°C | ||
| Storage Temperature | -40°C to + 80°C | ||
| Humidity | 100% non-condensing | ||
| Tropicalization | conformal coating, marine-rated terminals | ||
| Mechanical | |||
| Dimensions (W x L x D) | 196 x 173 x 71 cm | ||
| Weight | 1.4 kg | ||
| Wire Size Range | Power Terminals: 2.5 – 16 mm2 / 14 – 6 AWG Battery/Temp. Sense: 0.25 – 1.0 mm2 / 24 – 16 AWG |
||
| Enclosure | IP20, Type 1 | ||
| Electronic Protections | |||
| Solar Input | overload, short-circuit, high voltage, reverse polarity, high temperature, nighttime reverse current | ||
| Load Output | overload, short-circuit, high temperature, reverse polarity | ||
| Battery | reverse polarity (no battery removal) | ||
| Battery Charging | |||
| 4-Stage charging | Bulk, Absorption, Float, Equalize | ||
| Temperature Compensation Coefficient | -30mV/°C/12volt | ||
| Set-points | Absorption, Float, Equalize, HVD | ||
| Load & Lighting Control | |||
| Low Voltage Disconnect, Low Voltage Reconnect Settings | 11.4 V / 12.6 V or Custom (x2 for 24 volt systems) | ||
| Lighting Settings | Dusk to Dawn | ||
| Certifications | |||
| CE, TUV Listed | IEC 62109 | ||
