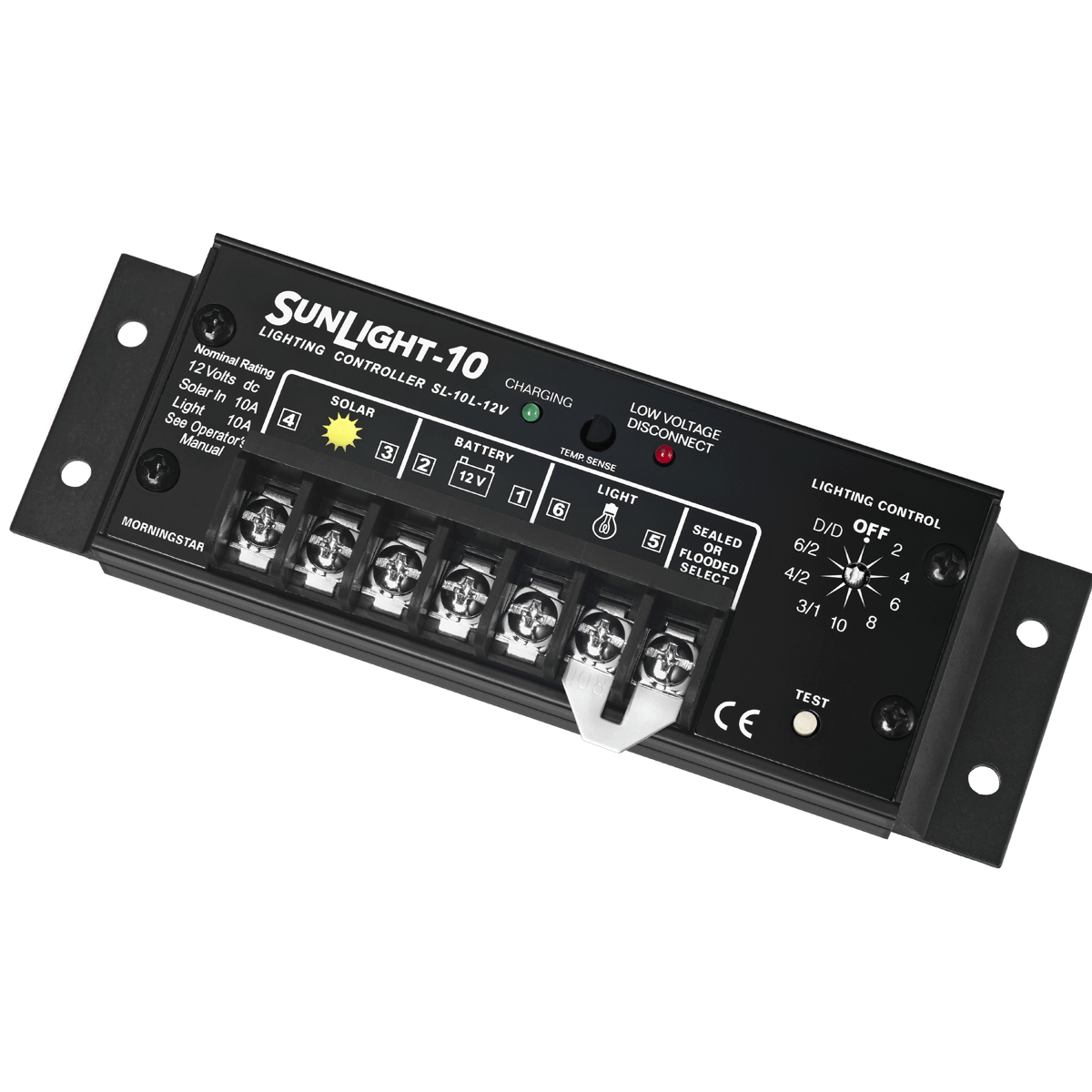

Morningstar SunLight Controller

Morningstar SunLight Controller

SL-10-12V

$266.00 AUD
$266.00 AUD
Sale Sold out

Features

  • Provides 10 lighting options – User adjustable for 2 to 10 hours on or for on all night. Unique ON/OFF/ON settings conserve energy and turns light on again for 1 or 2 hours before sunrise. Timer accuracy is within 2 seconds.
  • Easy to install – To confirm correct installation, test button turns light on during the day and LED indicates selected lighting option.
  • Rugged industrial design – Epoxy encapsulated electronics, marine rated terminals and anodized aluminium case.

Specifications

Model SL-10 SL-20 24 V
System Voltage 12 V 12 V 12 V
Maximum Voltage 30 V 30 V 50 V
Rated Solar Input 10A 20A n/a
PV Short Circuit Rating 12.5A 25A n/a
Rated Load 10A 20A n/a
25% Current Overload 5 minutes 5 minutes n/a
Regulation Voltage:
Sealed PWM 14.1 V 14.1 V 28.2 V
Flooded PWM 14.4 V 14.4 V 28.8 V
LVD 11.7 V 11.7 V 23.4 V
LVD Reconnect 12.8 V 12.8 V 25.6 V
Temp Compensation -27 mV/°C -27 mV/°C -54 mV/°C
Self consumption 8 mA 8 mA 9 mA
Ambient Operating Temperature –40°C to +60°C
Dimensions 16.8 x 5.5 x 3.4 cm
Warranty 5 years
