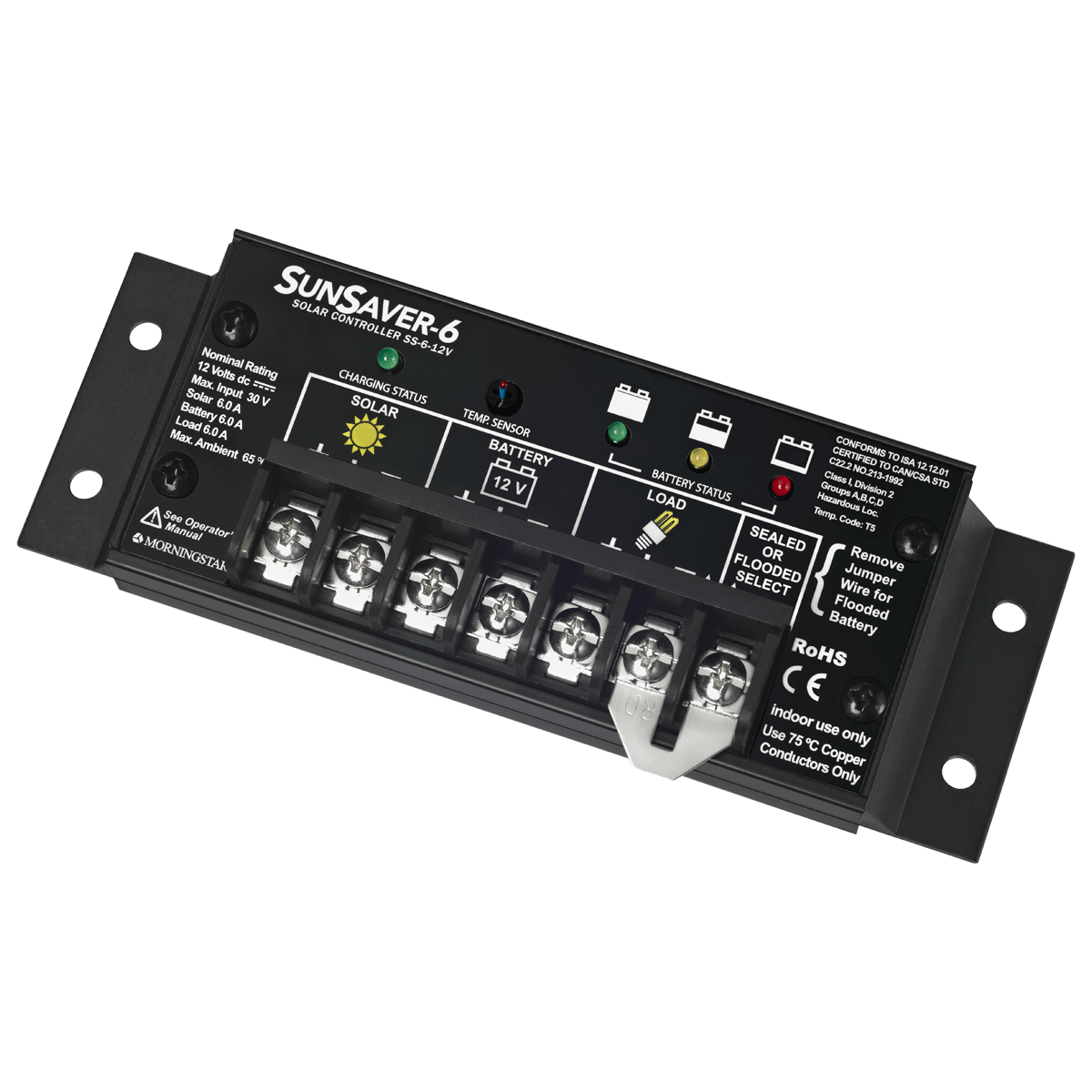

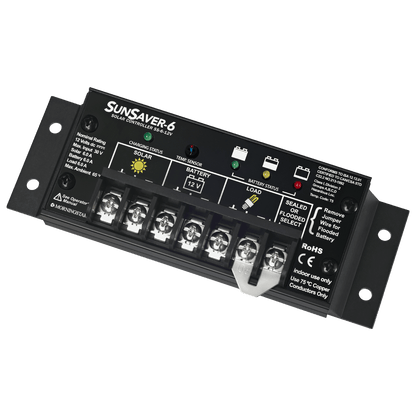

Morningstar SunSaver Controller
Morningstar SunSaver Controller
SKU:SS -6L-12V
Regular price
$155.00 AUD
Regular price
Sale price
$155.00 AUD
Unit price
/
per
Couldn't load pickup availability
Features
Morningstar SunSaver Controller. 6, 10 or 20 amps / 12 or 24 volts.
The Morningstar SunSaver is the world’s leading small solar controller for industrial and leisure markets.
- Extended battery life – PWM 4 stage battery charging with temperature compensation.
- Sealed/flooded battery select.
- TROPICALIZATION – Epoxy encapsulation, marine rated terminals and anodized aluminium case provides environmental protection.
- Ideal for oil/gas applications – Approved for use in hazardous locations: Class 1, Division 2, Groups A-D.
- NEW FEATURES – Full electronic protections, 3 battery state LED’s, cover for terminals, dead battery recovery, 15V max. load.
Specifications
| Model | SS -6-12V | SS -6L-12V | SS -10-12V | SS -10L-12V | SS -10L-24V | SS -20L-12V | SS -20L-24V |
|---|---|---|---|---|---|---|---|
| Load Control | No | Yes | No | Yes | Yes | Yes | Yes |
| Solar Rating | 6 A | 6 A | 10 A | 10 A | 10 A | 20 A | 20 A |
| Load Rating | 6 A | 6 A | 10 A | 10 A | 10 A | 20 A | 20 A |
| System Voltage | 12 V | 12 V | 12 V | 12 V | 24 V | 12 V | 24 V |
| Ambient Operating Temperature | –40°C to +60°C | ||||||
| Terminal | 16 mm | ||||||
| Weight | 0.60 kg | ||||||
| Dimensions | 16.8 x 5.5 x 7.0 cm | ||||||
| Warranty | 5 years | ||||||
