Description

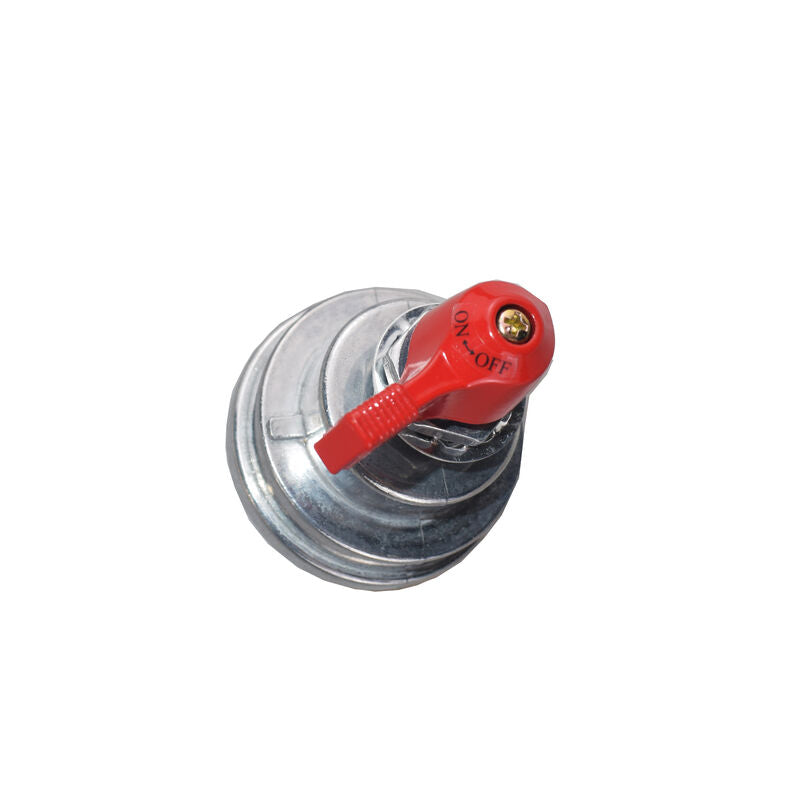

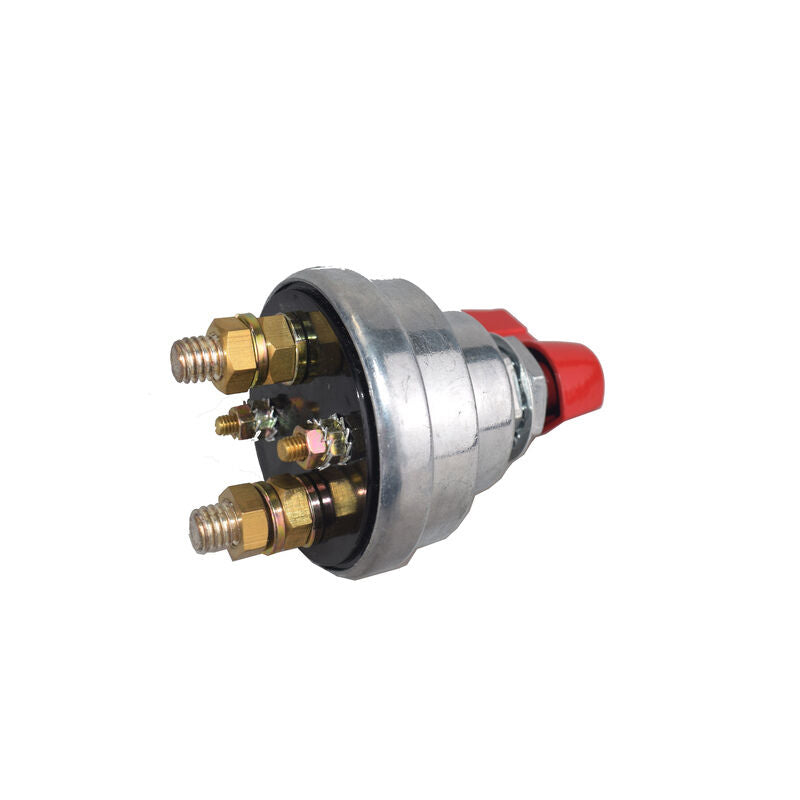

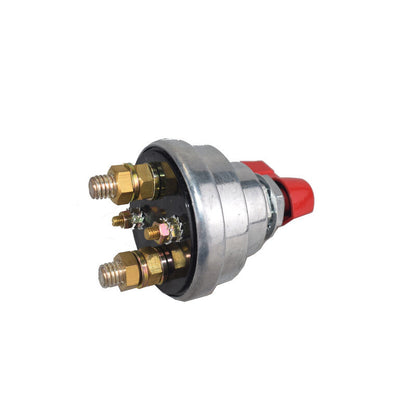

This Master Disconnect Switch Is Made To Fit For Alternator/Generator Field Circuits And Features An Indexing Post To Help Align The Switch And Prevent Rotation. It Has A Mount Opening With A Diameter Of 19mm. Among The Wide Range Of Narva Battery Switches, You'll Be Able To Find One Perfect For Your Own Desired Application. They Are All Made By High-Quality,Reliable And Longlasting Material.

 Specification

Mounting opening: 19mm Diameter

Large Terminals:

1000A at 12V For 20 Seconds
500A at 24V For 20 Seconds
180A at 12V Continuous Load Max
90A at 24V Continuous Load Max
Small Terminals:
20A at 12V Continuous Load Max
10A at 24V Continuous Load Max

 OEM Number

61075

 Package

1 x Battery Master Switch Lever
