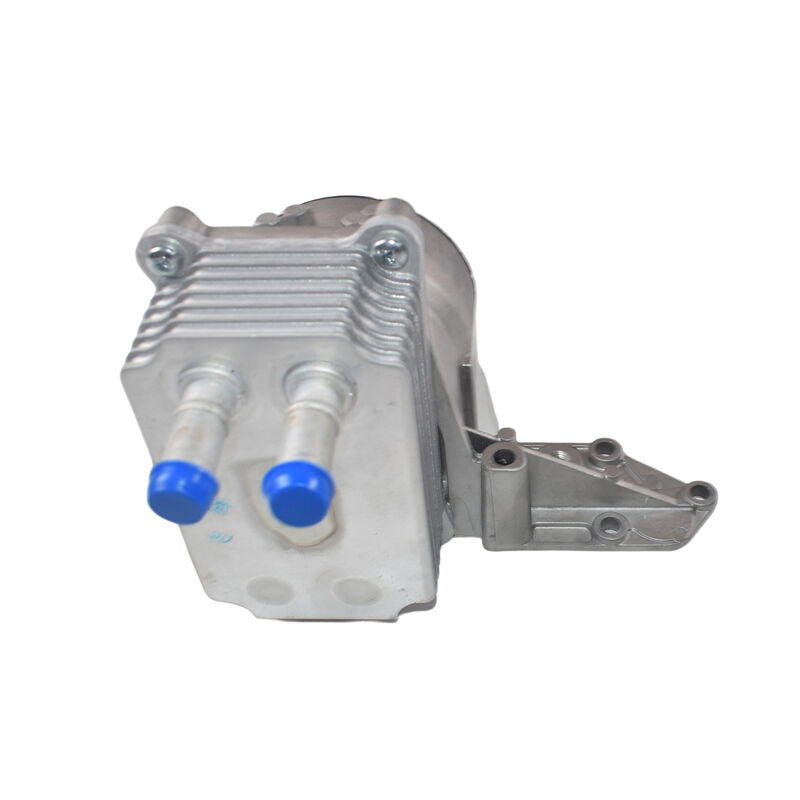

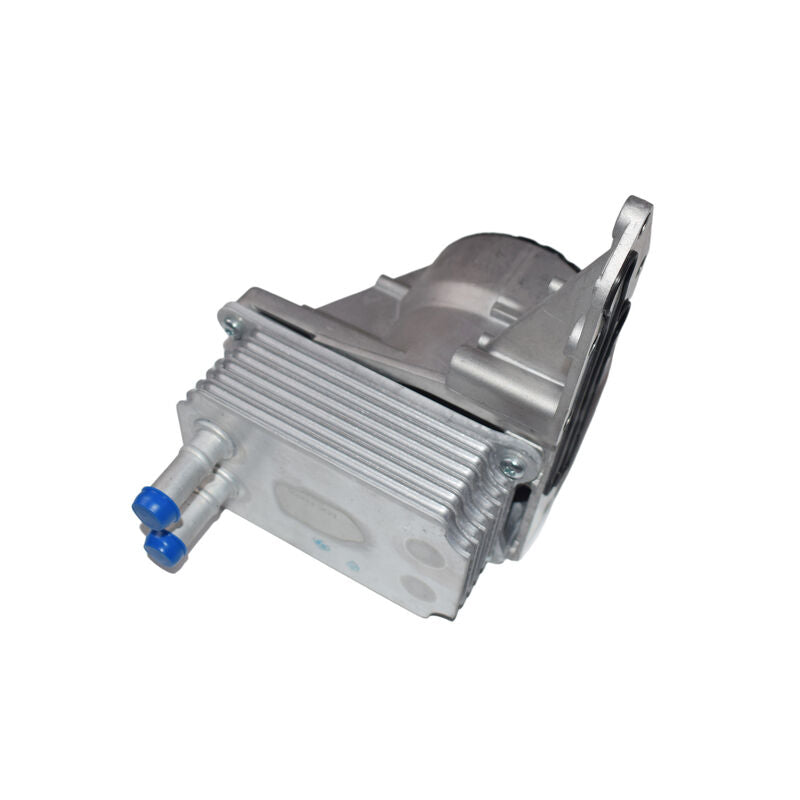

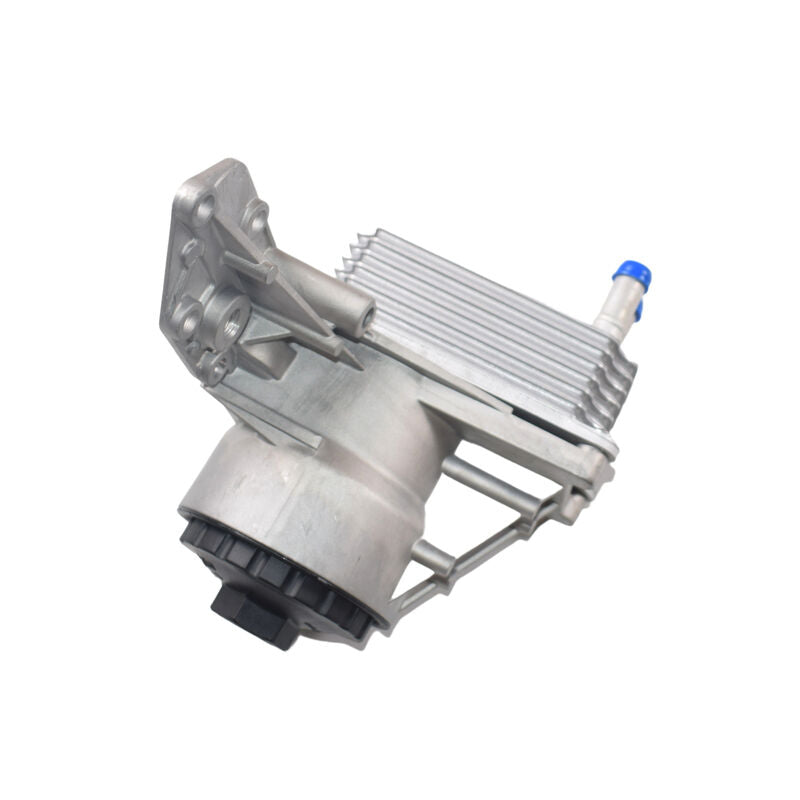

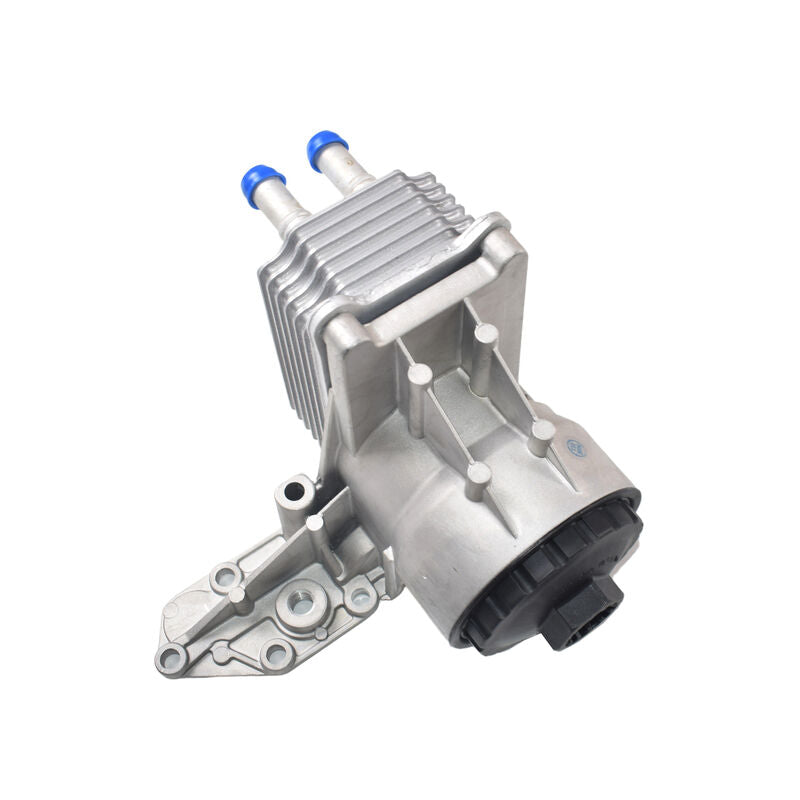

Product Overview

Product Structure The Oil Filter Is Mounted On The Base And Communicated With The Oil Passage Of The Base, The Heat Dissipation Cover Is Connected With The Base, And a Cooling Water Chamber Is Arranged Between The Cover And The Base, And The Oil Cooler, The Oil Cooler And The Cover Are Installed In The Cooling Water Chamber. The Oil Passages On The Plate Communicate With Each Other, And The Oil Passage On The Cover Communicates With The Oil Passage Of The Base. Product Advantages The Oil Filter And The Cooler Are Combined Into An Assembly, Which Is Compact In Structure, Small In Size, Light In Weight, Good In Versatility, Strong In Adaptability, Reduces External Piping, Safe And Reliable In Operation, And Convenient To Use And Maintain!

OEM / Reference Numbers

YC1Q6B624AK, 1211772, LR004426, 1143708, 1097629

Vehicle Fitment

• Fit For Ford Transit VH VJ (Duratorq 2.4L Diesel) 01/2000-2006
• Fit For Ford Transit Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.4 DI (F_B_F_C_F_A_) 01/2000 -05/2006 2402 66 90 Bus
• Fit For Ford Transit Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.4 DI RWD (F_B_F_C_F_A_) 01/2000 -05/2006 2402 88 120 Bus
• Fit For Ford Transit Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.4 TDCi 03/2004 -05/2006 2402 101 137 Bus
• Fit For Ford Transit Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.4 TDE 03/2004 -05/2006 2402 85 115 Bus
• Fit For Ford Transit Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.4 TDE (F_C_F_B_F_A_) 07/2001 -05/2006 2402 92 125 Bus
• Fit For Ford Transit Platform/Chassis (FM_ _, FN_ _) 2.4 DI (F_A_F_B_F_C_F_D_) 01/2000 -05/2006 2402 66 90 Platform/Chassis
• Fit For Ford Transit Platform/Chassis (FM_ _, FN_ _) 2.4 DI (F_A_F_B_F_C_F_D_) 01/2000 -05/2006 2402 88 120 Platform/Chassis
• Fit For Ford Transit Platform/Chassis (FM_ _, FN_ _) 2.4 TDCi 03/2004 -05/2006 2402 101 137 Platform/Chassis
• Fit For Ford Transit Platform/Chassis (FM_ _, FN_ _) 2.4 TDE 07/2001 -05/2006 2402 92 125 Platform/Chassis
• Fit For Ford Transit Platform/Chassis (FM_ _, FN_ _) 2.4 TDE 03/2004 -05/2006 2402 85 115 Platform/Chassis
• Fit For Ford Transit Van (FA_ _) 2.4 DI (FAA_FAB_FAC_FAD_) 01/2000 -05/2006 2402 66 90 Van
• Fit For Ford Transit Van (FA_ _) 2.4 DI RWD (FAA_FAB_FAC_FAD_) 01/2000 -05/2006 2402 88 120 Van
• Fit For Ford Transit Van (FA_ _) 2.4 TDCi 03/2004 -05/2006 2402 101 137 Van
• Fit For Ford Transit Van (FA_ _) 2.4 TDE 07/2001 -05/2006 2402 92 125 Van
• Fit For Ford Transit Van (FA_ _) 2.4 TDE 03/2004 -05/2006 2402 85 115 Van
• Fit For Land Rover Defender Cabrio (L316) 2.2 Td4 4x4 (L317) 08/2011 -02/2016 2198 90 122 Open Off-Road Vehicle Important Notes : Vehicle Identification Number (VIN) to: DA444246
• Fit For Land Rover Defender Cabrio (L316) 2.4 Td4 4x4 (L317) 05/2007 -02/2016 2402 90 122 Open Off-Road Vehicle
• Fit For Land Rover Defender Pick Up (L316) 2.2 Td4 4x4 (L317) 08/2011 -02/2016 2198 90 122 Open Off-Road Vehicle Important Notes: Vehicle Identification Number (VIN) to: DA444246
• Fit For Land Rover Defender Pick Up (L316) 2.4 Td4 4x4 (L317) 05/2007 -02/2016 2402 90 122 Open Off-Road Vehicle
• Fit For Land Rover Defender Platform/Chassis (L316) 2.2 Td4 4x4 (L317) 08/2011 -02/2016 2198 90 122 Platform/Chassis Important Notes : Vehicle Identification Number (VIN) to: DA444246
• Fit For Land Rover Defender Platform/Chassis (L316) 2.4 TD4 4x4 05/2007 -02/2016 2402 90 122 Platform/Chassis
• Fit For Land Rover Defender Station Wagon (L316) 2.2 Td4 4x4 (L316) 02/2015 -02/2016 2198 110 150 SUV
• Fit For Land Rover Defender Station Wagon (L316) 2.2 Td4 4x4 (L316) 08/2011 -02/2016 2198 90 122 SUV Important Notes: Vehicle Identification Number (VIN) to: DA444246
• Fit For Land Rover Defender Station Wagon (L316) 2.4 Td4 4x4 07/2007 -02/2016 2402 103 140 SUV
• Fit For Land Rover Defender Station Wagon (L316) 2.4 Td4 4x4 (L316) 10/2006 -02/2016 2402 90 122 SUV

What’s Included

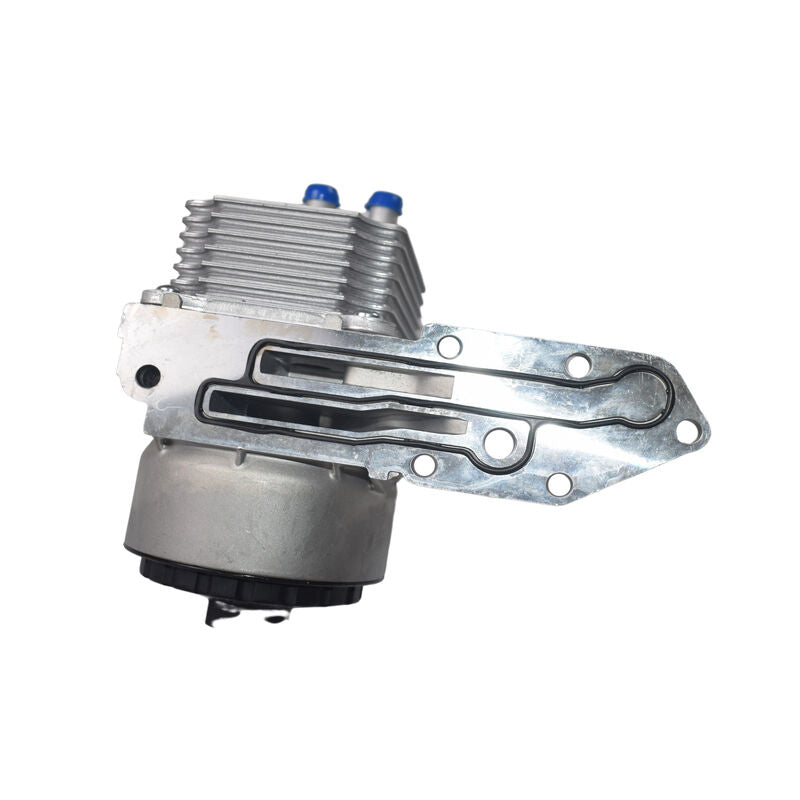

1 x Oil Cooler Assembly With Gasket

Package Details

• Package size (L × W × H): 26 × 22 × 18 cm
• Packaged weight: 2.248 kg
• Shipping volume: 0.010296 m³
