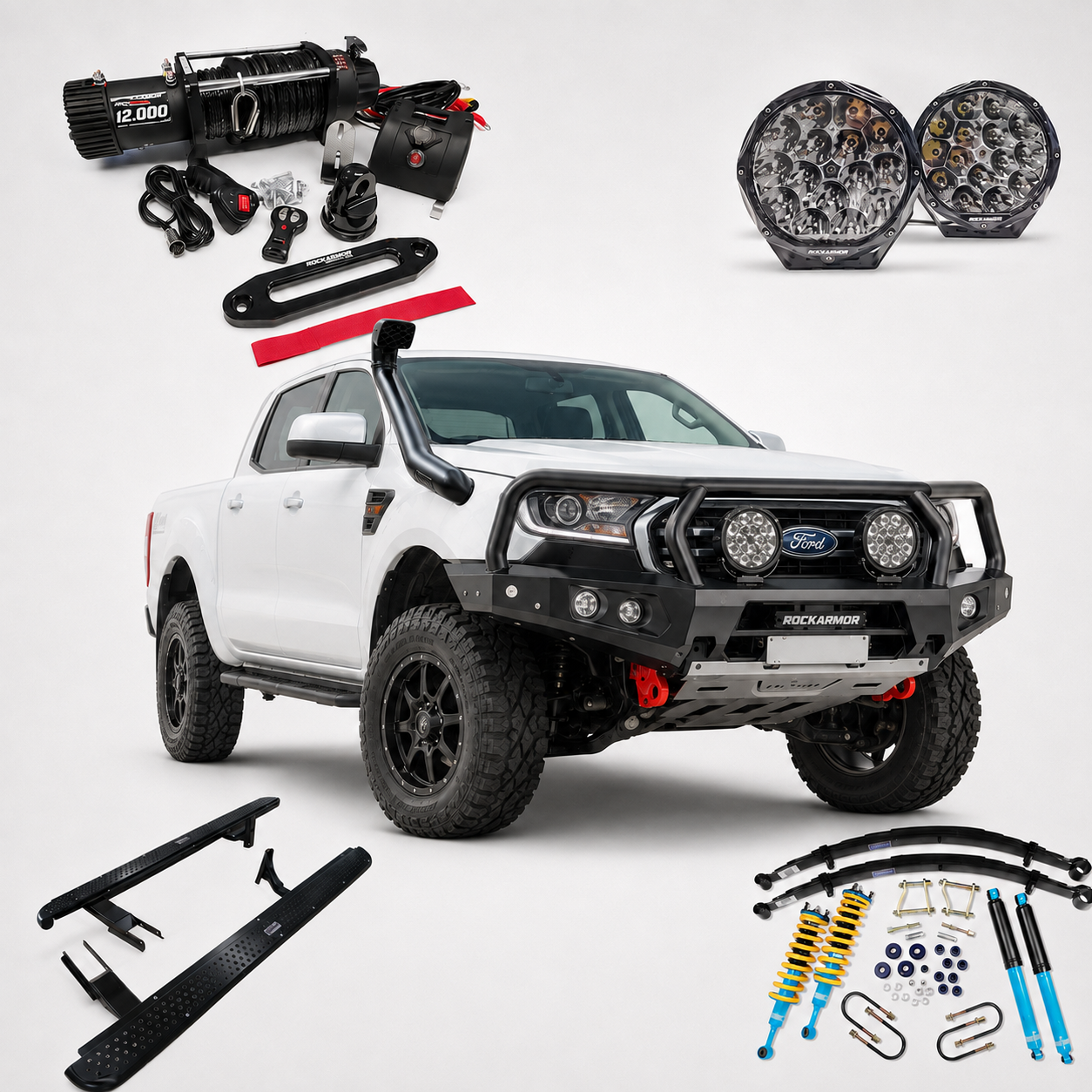

Ramped Up 4x4 Ford Ranger PX2 Complete Package

A complete vehicle-specific touring and off-road package for the Ford Ranger PX2 2015–2018. Every configuration includes a Rockarmor bull bar, Rockarmor Recovery M8 12,000lb winch, Rockarmor R85 driving-light pair, Rockarmor side steps, a Ramped Up 4x4 4-inch gloss-black stainless steel snorkel and the Formula 4x4 ReadyStrut lift kit with two rear leaf springs.

Choose your setup

Select the Rockarmor GT hooped or GT no-loop bull bar, the correct rear constant-load leaf-spring rate and either supply-only depot freight or professional installation at Penrith NSW 2750. The displayed price updates automatically.

Package inclusions and component pricing

• Rockarmor GT no-loop bull bar: $1,888.95, or Rockarmor GT hooped bull bar: $1,990.00
• Rockarmor Recovery M8 12,000lb winch: $879.00
• Rockarmor R85 8.5-inch driving lights: $220.00 per pair
• Rockarmor chassis-mounted side steps: $990.00
• Ramped Up 4x4 4-inch gloss-black stainless steel snorkel: $399.00
• Formula 4x4 RANG-306R ReadyStrut lift kit: from $2117.00, including two rear leaf springs

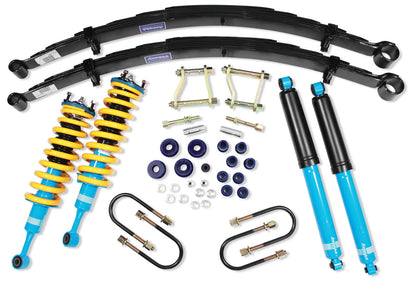

Formula lift kit contents

Formula ReadyStrut kit 1 × RANGE08-FOR; Formula rear shocks 2 × 50002; Formula leaf springs 2 × FLS-005; U-bolts 4 × FUB-004; SuperPro shackle, pin and bush kit 1 × KIT168SK; SuperPro centre-bearing alignment kit 1 × SPF4659K.

Rear leaf-spring choices

• Rear load 0–300kg: base package price
• Rear load 300–500kg: add $50.00
• Rear load 500kg+: add $100.00

Rear load means the vehicle’s constant rear load. Matching the spring rate to the vehicle’s actual permanent weight is essential for ride height, comfort and suspension performance.

Bull bar, winch and lighting

The Rockarmor GT bull bars are designed for PX2/PX3 Ranger and Wildtrak applications. The hooped bar is ADR approved, airbag compatible, tech-pack and parking-sensor compatible, supports a winch up to 12,000lb and includes LED fog lights/indicators, bash plates and 5-tonne recovery points for use with a bridle strap. The M8 winch includes synthetic rope, wireless control, fairlead and recovery link. The R85 driving lights include the pair, mounting hardware and wiring harness.

Side steps and snorkel

The package includes Rockarmor/Rockarmor-range chassis-mounted steel side steps and a Ramped Up 4x4 4-inch gloss-black stainless steel snorkel. The exact snorkel intake connection is confirmed against the vehicle engine and factory airbox before supply.

Fitment

Suits Ford Ranger PX2 4WD, 2015 to July 2018. Bull-bar fitment applies to compatible Ranger and Wildtrak variants from June 2015.

We will confirm the model series, build date, engine, drivetrain, front accessory load, rear constant load, factory sensors and airbox before dispatch or installation. This package does not suit Ranger Raptor or PX1.

Supply-only freight

$499 flat freight to the closest eligible depot. The complete package is supplied in multiple cartons. Depot availability and the receiving location are confirmed after checkout.

Professional installation – Penrith NSW 2750

The installed option adds exactly $2,500 and includes professional fitment of the bull bar, winch, spotlights, side steps, snorkel and Formula lift kit, plus wiring and the required driving-light piggyback loom. Wheel alignment is not included. Installation is by appointment at Penrith NSW 2750 after vehicle and parts availability confirmation.

Estimated packed freight details

Multiple cartons; estimated combined package weight approximately 245–260kg depending on bull-bar and spring selection. Largest estimated freight piece approximately 210 × 85 × 70cm. Final carrier measurements may vary.

Downloads

• Formula 4x4 lift-kit fitting instructions (PDF)
• Formula 4x4 warranty activation

Vehicle Ford Ranger PX2 2015–2018 Package lift-kit SKU RANG-306R Bull-bar choices Rockarmor GT no-loop or Rockarmor GT hooped Rear spring choices 0–300kg, 300–500kg, 500kg+ constant load Snorkel Ramped Up 4x4 4-inch gloss-black stainless steel Supply freight $499 to closest eligible depot Installed option Penrith NSW 2750; +$2,500; wheel alignment excluded Estimated combined weight 245–260kg by configuration

1 × Rockarmor GT bull bar selected at checkout 1 × Rockarmor Recovery M8 12,000lb winch with synthetic rope and wireless control 1 pair × Rockarmor R85 8.5-inch driving lights with harness and mounting hardware 1 pair × Rockarmor chassis-mounted side steps 1 × Ramped Up 4x4 4-inch gloss-black stainless steel snorkel 1 × Formula 4x4 RANG-306R ReadyStrut lift kit Formula contents: 1 × RANGE08-FOR ReadyStrut kit; 2 × 50002 rear shocks; 2 × FLS-005 leaf springs; 4 × FUB-004 U-bolts; 1 × KIT168SK shackle/pin/bush kit; 1 × SPF4659K centre-bearing alignment kit. Installed option includes professional installation, wiring and driving-light piggyback loom. Wheel alignment is not included.

Warranty: Formula 4x4 lift kit – 5 years, subject to manufacturer terms and warranty activation. Rockarmor GT bull bar – 12 months. Rockarmor Recovery M8 winch – 5 years. Rockarmor R85 driving lights – 1 year. Remaining components are covered by their applicable manufacturer warranty terms.
