Ramped Up 4x4 Mitsubishi Triton MR Complete Package

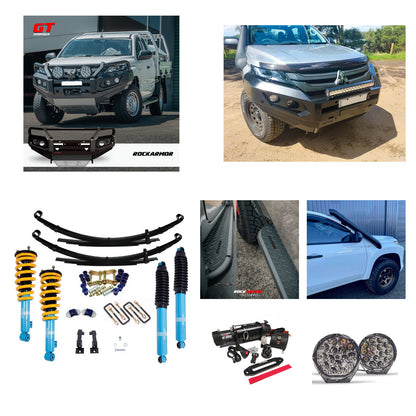

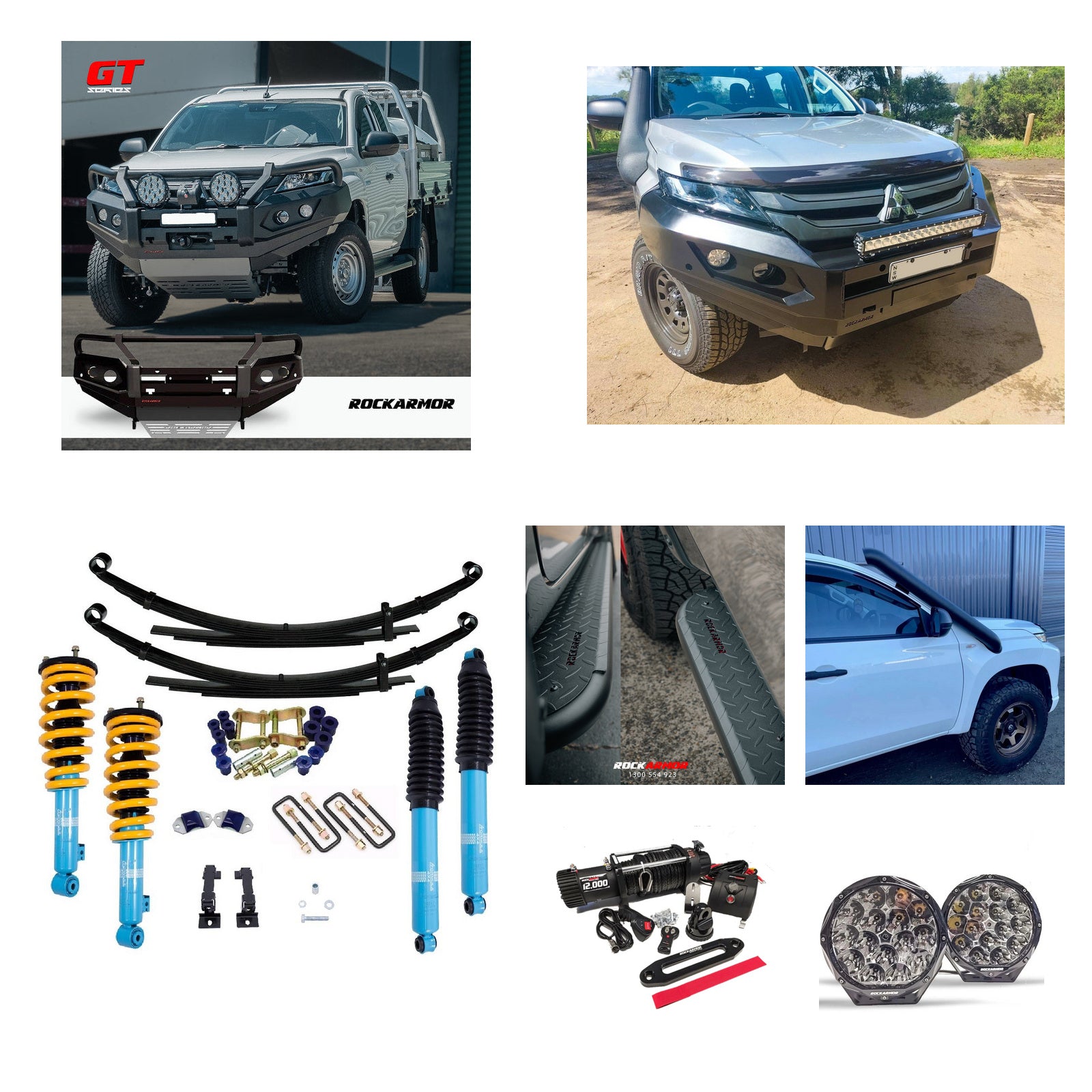

A complete vehicle-specific touring and off-road package for the Mitsubishi Triton MR 2019–2023. Every configuration includes a genuine Rockarmor bull bar, Rockarmor Recovery M8 12,000lb winch, Rockarmor R85 driving-light pair, Rockarmor rock-slider side steps, a Ramped Up 4x4 4-inch gloss-black stainless steel snorkel and the Formula 4x4 TRI-017R ReadyStrut lift kit with two rear leaf springs.

Choose your setup

Select the Rockarmor GT hooped or GT no-loop bull bar, the correct rear constant-load leaf-spring rate and either supply-only depot freight or professional installation at Penrith NSW 2750. The displayed price updates automatically.

Package inclusions and component pricing

• Rockarmor GT no-loop bull bar: $1,888.95, or Rockarmor GT hooped bull bar: $2,098.00
• Rockarmor Recovery M8 12,000lb winch: $879.00
• Rockarmor R85 8.5-inch driving lights: $220.00 per pair
• Rockarmor SSSRA-TRITON rock-slider side steps: $990.00
• Ramped Up 4x4 4-inch gloss-black stainless steel snorkel: $399.00
• Formula 4x4 TRI-017R ReadyStrut lift kit: from $2,308.00, including two rear leaf springs

Formula lift kit contents

Formula ReadyStrut kit 1 × TRIT055SP-FOR; Formula rear shock absorbers 2 × 50003; Formula leaf springs 2 × FLS-097; U-bolts 4 × FUB-006; shackle, pin and bush kit 1 × KIT218SK; bump-stop kit 1 × SPF4633K; bracket TRC0044; ABS-cable extension 1 × SPF4896K; brake-line spacer 1 × SPF4954K.

Rear leaf-spring choices

• Rear load 150kg: base package price
• Rear load 250kg: add $50.00
• Rear load 400kg: add $100.00

Rear load means the vehicle’s constant rear load. Matching the spring rate to the vehicle’s actual permanent weight is essential for ride height, comfort and suspension performance.

Bull bar, winch and lighting

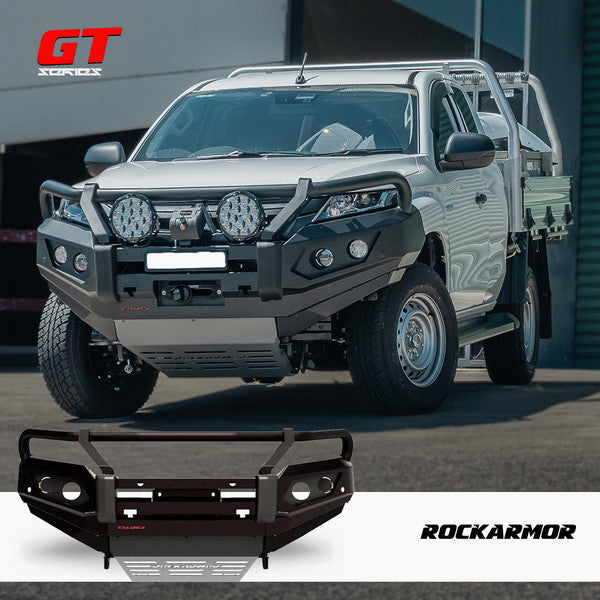

Both Rockarmor GT bar options are full-bumper-replacement steel bars engineered for the Triton MR. They include rated recovery points, an integrated winch cradle suitable for a winch up to 12,000lb, bash-plate protection and driving-light provisions. The hooped bar adds the 63mm cross tube and is ADR compliant, airbag compatible and designed to retain compatible factory sensors. Final sensor and variant compatibility is confirmed before supply.

The Rockarmor Recovery M8 includes 28m synthetic rope, wireless control, hawse fairlead and recovery link. The Rockarmor R85 driving-light kit includes one pair of 8.5-inch LED lights, mounting hardware and wiring harness.

Side steps and snorkel

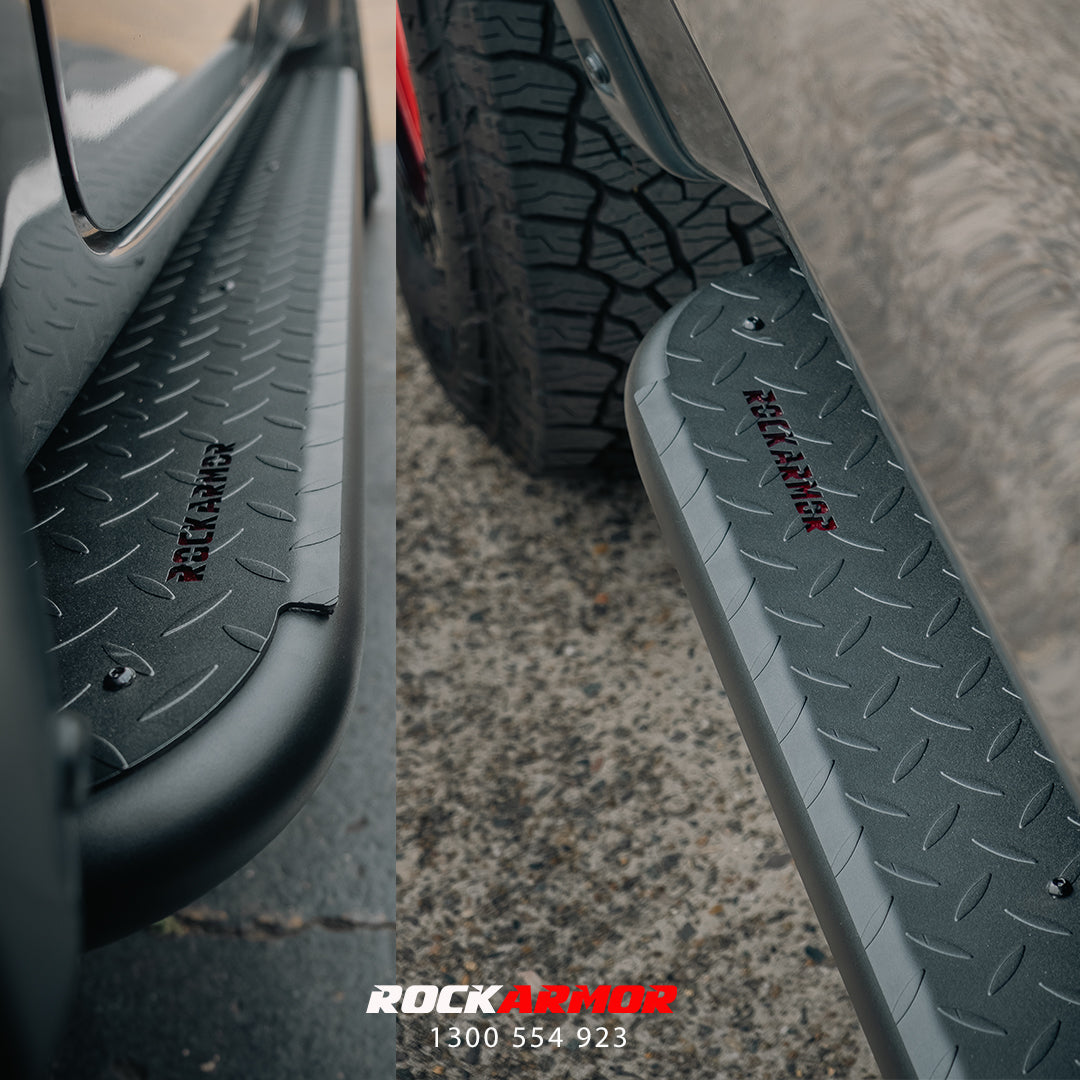

The Rockarmor SSSRA-TRITON side steps use a dual-rail, chassis-mounted steel design with 52mm mandrel-bent tubing, textured black powder coat and side-airbag-compatible construction. The included Ramped Up 4x4 snorkel is a 4-inch gloss-black powder-coated stainless steel kit and connects to the MR Triton factory airbox. Guard cutting and careful intake sealing are required.

Fitment

Suits Mitsubishi Triton MR 4WD, 2019–2023, including compatible GLX, GLX+, GLS and GLS-R variants. It does not suit Mitsubishi Triton MQ or the 2024-on Triton MV.

We will confirm the model series, build date, engine, cab/body style, front accessory load, rear constant load, factory sensors and airbox before dispatch or installation.

Supply-only freight

$499 flat freight to the closest eligible depot. The complete package is supplied in multiple cartons. Depot availability and the receiving location are confirmed after checkout.

Professional installation – Penrith NSW 2750

The installed option adds exactly $2,500 and includes professional fitment of the bull bar, winch, spotlights, side steps, snorkel and Formula lift kit, plus wiring and the required driving-light piggyback loom. Wheel alignment is not included. Installation is by appointment at Penrith NSW 2750 after vehicle and parts availability confirmation.

Estimated packed freight details

Multiple cartons; estimated combined package weight approximately 245–260kg depending on bull-bar and rear-spring selection. Largest estimated freight piece approximately 210 × 85 × 70cm. Final carrier measurements may vary.

Downloads

• Formula 4x4 lift-kit fitting instructions (PDF)
• Formula 4x4 warranty activation

Vehicle: Mitsubishi Triton MR 4WD, 2019–2023 Bull bars: Rockarmor GT hooped BBRA-MRGT or GT no-loop BBRA-MRGTNH Winch: Rockarmor Recovery M8, 12,000lb, 28m synthetic rope, IP67 Driving lights: Rockarmor R85 pair, 8.5-inch, 150W each, IP68 Side steps: Rockarmor SSSRA-TRITON, dual-rail 52mm steel, textured black Snorkel: Ramped Up 4x4 4-inch gloss-black stainless steel; factory-airbox connection Suspension: Formula 4x4 TRI-017R ReadyStrut lift kit Rear constant-load choices: 150kg, 250kg or 400kg Installation location: Penrith NSW 2750; wheel alignment excluded

1 × Rockarmor GT bull bar selected by customer 1 × Rockarmor Recovery M8 12,000lb winch with synthetic rope, wireless control, hawse fairlead and recovery link 1 × pair Rockarmor R85 LED driving lights with harness and mounts 1 × pair Rockarmor SSSRA-TRITON rock-slider side steps 1 × Ramped Up 4x4 4-inch gloss-black stainless steel snorkel kit 1 × Formula 4x4 TRI-017R lift kit containing TRIT055SP-FOR ReadyStruts, 2 × 50003 rear shocks, 2 × FLS-097 leaf springs, 4 × FUB-006 U-bolts, KIT218SK shackle/pin/bush kit, SPF4633K bump stops, TRC0044 bracket, SPF4896K ABS-cable extension and SPF4954K brake-line spacer

Formula 4x4 lift kit: 5 years / unlimited kilometres after online warranty activation. Rockarmor Recovery M8 winch: 5 years. Rockarmor R85 driving lights: 1 year. Bull bar, side steps and snorkel: manufacturer or supplier warranty terms apply.
