Ramped Up 4x4 complete Toyota Hilux package

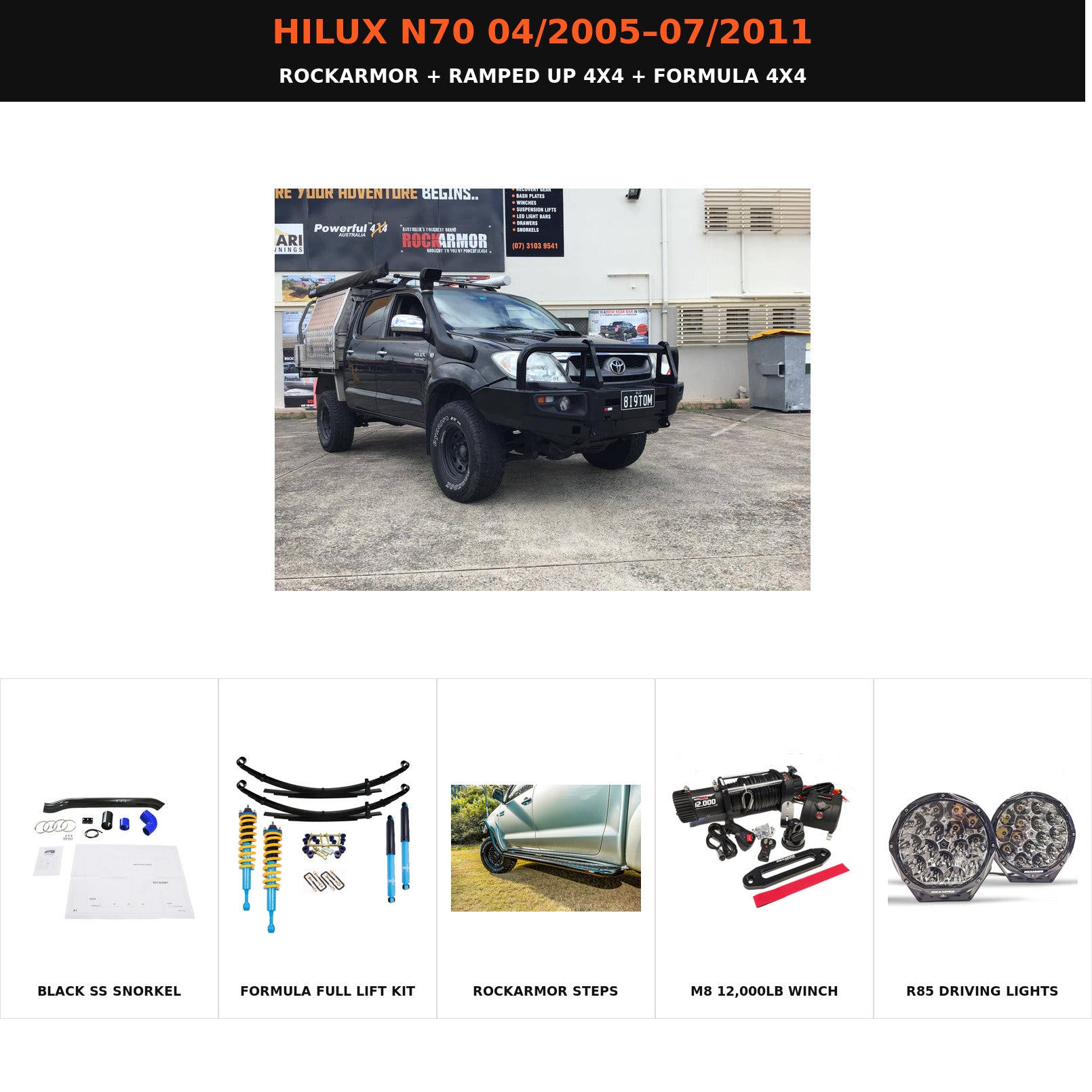

This vehicle-specific package combines Rockarmor protection and recovery gear, a Ramped Up 4x4 black 4-inch stainless snorkel and a complete Formula 4x4 ReadyStrut suspension kit with two rear leaf springs. Component prices have been totalled into each selectable configuration.

Confirmed fitment

Toyota Hilux N70 SR/SR5 Dual Cab, 04/2005–07/2011.

The included Rockarmor sliders are Dual Cab parts, so this complete package is for Dual Cab vehicles. Engine, model grade, build date, front safety equipment and permanent loads are confirmed before supply.

Choose your setup

Select the rear constant-load leaf springs and then choose depot freight or professional installation. The price updates automatically. The Formula front springs will be matched to the steel bull bar and winch load during order confirmation.

What's included

• Rockarmor Premium Series 3mm-steel full-bumper-replacement bull bar with 63mm tube, LED fog lights/indicators, winch cradle and ADR/airbag compatibility
• Rockarmor M8 12,000lb winch with 7.2HP motor, 28m synthetic rope, hawse fairlead and wireless/wired controls — RAW12000
• Rockarmor R85 8.5-inch LED driving lights (pair), wiring harness and mounts — RA85LED
• Rockarmor chassis-mounted dual-rail rock-slider side steps with fitting kit — SSSRA-HILN70
• Ramped Up 4x4 black 4-inch 304 stainless-steel snorkel kit — $399 component value
• Formula 4x4 full ReadyStrut lift kit with two rear leaf springs — HILUX-016R

Formula lift-kit contents

• Formula ReadyStrut Kit × 1 — HILUX101-FOR
• Formula rear shock absorbers × 2 — 50001
• Formula leaf springs × 2 — FLS-001
• Formula U-bolts × 4 — FUB-006
• SuperPro greasable shackle, pin and bush kit × 1 — KIT096SK
• Brake-hose-to-diff extension mount × 1 — SPF4359K

Freight or installation

Depot freight: $499 to the closest eligible freight depot. The supply variants are assigned to the complete-package depot-freight profile.

Installed at Penrith NSW 2750: exactly $2,500 above the matching supply price. Includes professional fitting and wiring of the listed components and the required high-beam piggyback connection. Wheel alignment is not included.

Estimated freight data

Estimated combined packaged weight: 255 kg across multiple cartons. Largest estimated carton: approximately 220 × 110 × 90 cm. These values are for freight handling; the checkout charge remains the fixed $499 depot rate.

Downloads

• Formula 4x4 lift-kit fitting instructions (PDF)
• Rockarmor fitting-instructions library

Important: Suspension ride height varies with factory height, age and constant load. Professional installation is recommended. A post-install wheel alignment is required but is excluded from the $2,500 installation price.

Complete touring package with Rockarmor Premium bull bar, Rockarmor M8 12,000lb winch, Rockarmor R85 LED driving lights, Rockarmor dual-cab side steps/rock sliders, Ramped Up 4x4 black stainless snorkel and Formula 4x4 50mm lift kit. Formula rear spring choices: 100kg, 300kg or 400kg constant rear load. Estimated combined package weight: 255kg. Supply variants use fixed $499 freight to the closest eligible depot. Installed variants are fitted and wired at Penrith NSW 2750 and exclude wheel alignment.

Rockarmor Premium bull bar; Rockarmor M8 12,000lb winch; pair of Rockarmor R85 LED driving lights; Rockarmor N70 Dual Cab side steps/rock sliders; Ramped Up 4x4 black stainless snorkel; Formula 4x4 HILUX-016R lift kit comprising HILUX101-FOR ReadyStrut kit x1, Formula 4x4 50001 rear shock absorbers x2, selected FLS-001 rear leaf springs x2, FUB-006 U-bolts x4, SuperPro KIT096SK greasable shackle/pin/bush kit x1 and SPF4359K brake-hose-to-differential extension mount x1. Installed option includes professional fitment, wiring and high-beam piggyback at Penrith NSW 2750; wheel alignment is not included.

Warranty: Formula 4x4 lift kit – 5 years. Rockarmor bull bar, side steps/rock sliders, M8 winch and R85 driving lights – manufacturer warranty applies. Ramped Up 4x4 black stainless snorkel – Ramped Up 4x4 warranty applies. All warranty coverage is subject to the applicable manufacturer’s terms, correct professional fitment and intended use.
