Ramped Up 4x4 complete Toyota Hilux package

This vehicle-specific package combines Rockarmor protection and recovery gear, a Ramped Up 4x4 black 4-inch stainless snorkel and a complete Formula 4x4 suspension kit with two rear leaf springs. Component prices have been totalled into every configuration.

Confirmed fitment

Toyota Hilux N80 SR, SR Hi-Rider, SR5, Rogue, Rugged and Rugged X Dual Cab, 09/2015–07/2020. Does not suit Workmate.

The included Rockarmor sliders are Dual Cab parts. Engine, model grade, build date, front safety equipment and permanent accessory loads are confirmed before supply.

Choose your setup

Select the rear constant-load leaf springs and then choose depot freight or professional installation. Pricing updates automatically. Formula front springs are matched to the steel bull bar and winch load during order confirmation.

What's included

• Rockarmor GT hooped bull bar — BBRA-HIL15GT — with ADR approval, rated recovery points, bash plates, LED fog lights/indicators and sensor compatibility
• Rockarmor M8 12,000lb winch with 7.2HP motor, 28m synthetic rope, hawse fairlead and wireless/wired controls — RAW12000
• Rockarmor R85 8.5-inch LED driving lights (pair), wiring harness and mounts — RA85LED
• Rockarmor N80 chassis-mounted dual-rail rock-slider side steps with fitting kit — SSSRA-HILN80
• Ramped Up 4x4 black 4-inch 304 stainless-steel snorkel kit — $399 component value
• Formula 4x4 full ReadyStrut lift kit with two rear leaf springs — HILUX-022R

Formula lift-kit contents

• Formula ReadyStrut Kit × 1 — HILUX101-FOR
• Formula rear shock absorbers × 2 — 50016
• Formula leaf springs × 2 — FLS-095
• Formula U-bolts × 4 — FUB-006
• SuperPro shackle, pin and bush kit × 1 — KIT219SK
• Brake-line spacer kit × 1 — SPF4855K

Freight or installation

Depot freight: $499 to the closest eligible freight depot. Supply variants are assigned to the complete-package depot-freight profile.

Installed at Penrith NSW 2750: exactly $2,500 above the matching supply price. Includes professional fitting and wiring of the listed components and the required high-beam piggyback connection. Wheel alignment is not included.

Estimated freight data

Estimated combined packaged weight: 270 kg across multiple cartons. Largest estimated carton: approximately 220 × 110 × 90 cm. These values are for freight handling; checkout remains the fixed $499 depot rate.

Downloads

• Formula 4x4 lift-kit fitting instructions (PDF)
• Rockarmor fitting-instructions library

Important: Suspension ride height varies with factory height, age and constant load. Professional installation is recommended. A post-install wheel alignment is required but is excluded from the $2,500 installation price.

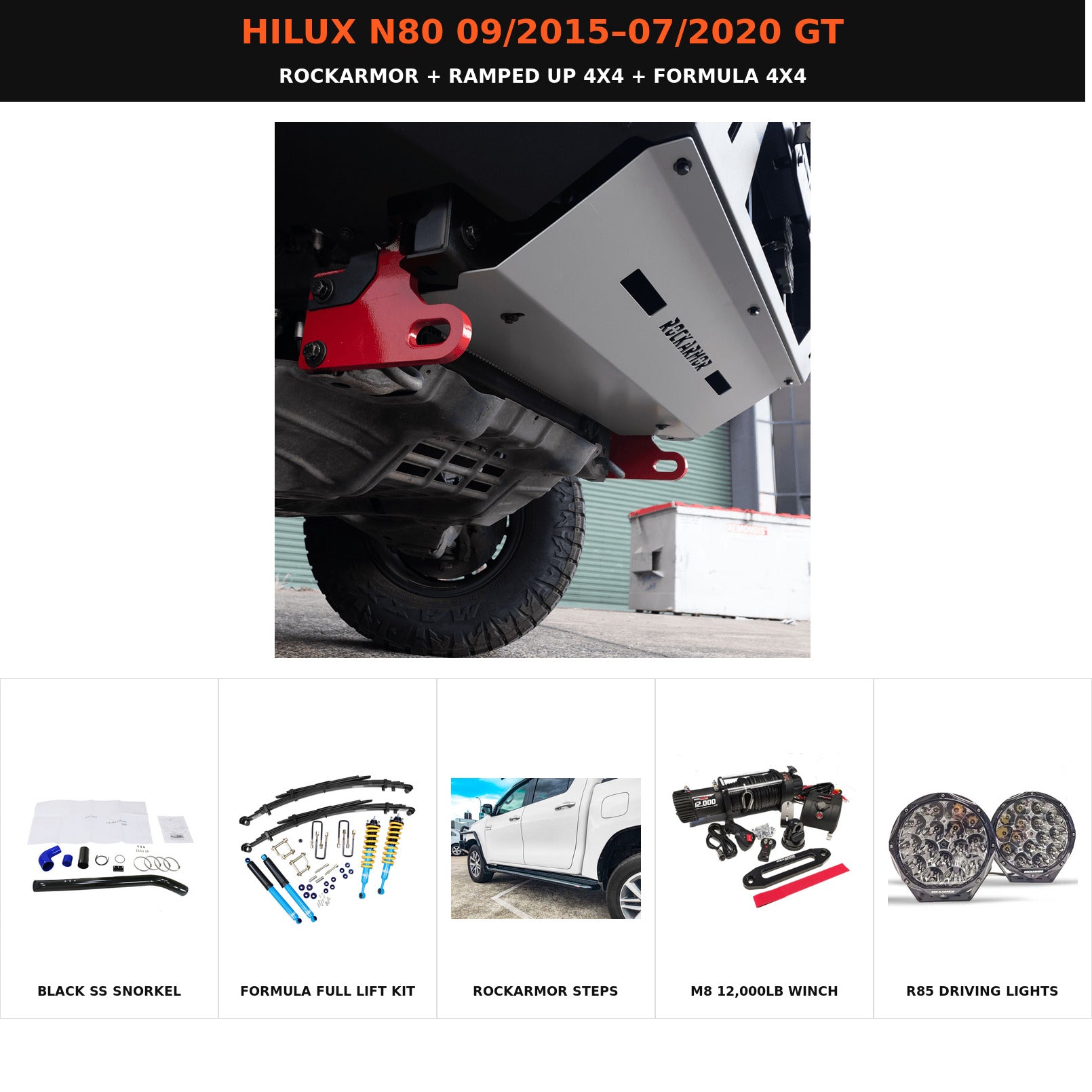

Complete touring package with Rockarmor GT hooped bull bar, Rockarmor M8 12,000lb winch, Rockarmor R85 LED driving lights, Rockarmor N80 dual-cab side steps/rock sliders, Ramped Up 4x4 black stainless snorkel and Formula 4x4 HILUX-022R 50mm lift kit. Rear spring choices: 0–200kg, 200–400kg or 400–500kg constant rear load. Estimated combined package weight: 270kg. Supply variants use fixed $499 freight to the closest eligible depot. Installed variants are fitted and wired at Penrith NSW 2750 and exclude wheel alignment.

Rockarmor GT hooped bull bar; Rockarmor M8 12,000lb winch; pair of Rockarmor R85 LED driving lights; Rockarmor N80 Dual Cab side steps/rock sliders; Ramped Up 4x4 black stainless snorkel; Formula 4x4 HILUX-022R lift kit comprising HILUX101-FOR ReadyStrut kit x1, Formula 4x4 50016 rear shock absorbers x2, selected FLS-095 rear leaf springs x2, FUB-006 U-bolts x4, SuperPro KIT219SK shackle/pin/bush kit x1 and SPF4855K brake-line spacer kit x1. Installed option includes professional fitment, wiring and high-beam piggyback at Penrith NSW 2750; wheel alignment is not included.

Warranty: Formula 4x4 lift kit – 5 years. Rockarmor bull bar, side steps/rock sliders, M8 winch and R85 driving lights – manufacturer warranty applies. Ramped Up 4x4 black stainless snorkel – Ramped Up 4x4 warranty applies. All warranty coverage is subject to the applicable manufacturer’s terms, correct professional fitment and intended use.
