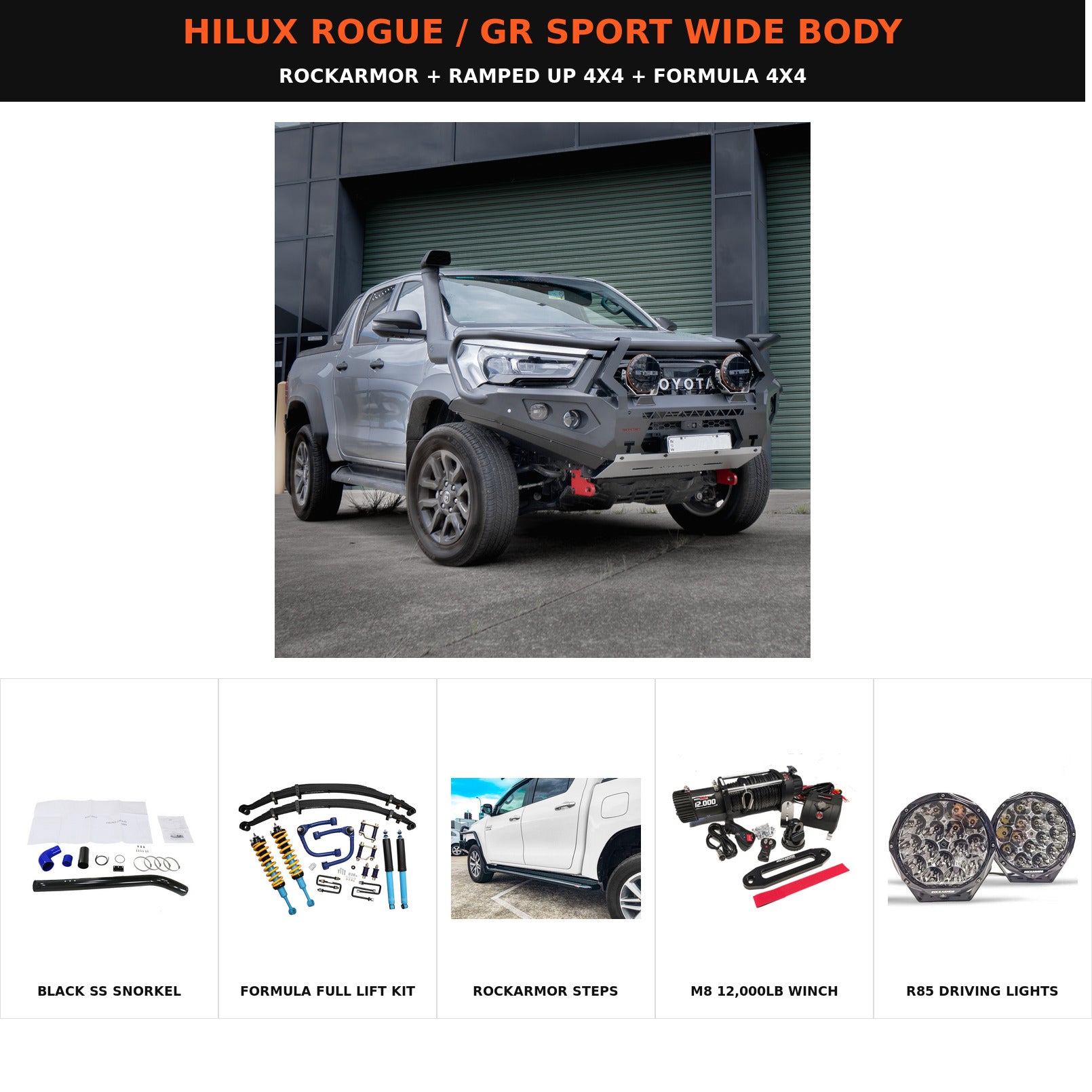

Ramped Up 4x4 complete Toyota Hilux package

This vehicle-specific package combines Rockarmor protection and recovery gear, a Ramped Up 4x4 black 4-inch stainless snorkel and a complete Formula 4x4 suspension kit with two rear leaf springs. Component prices have been totalled into every configuration.

Confirmed fitment

Toyota Hilux Rogue wide-body variants 2022–2025 and GR Sport 2023–2025 Dual Cab.

The included Rockarmor sliders are Dual Cab parts. Engine, model grade, build date, front safety equipment and permanent accessory loads are confirmed before supply.

Choose your setup

Select the rear constant-load leaf springs and then choose depot freight or professional installation. Pricing updates automatically. Formula front springs are matched to the steel bull bar and winch load during order confirmation.

What's included

• Dedicated Rockarmor GT wide-body bull bar — BBRA-HILUXGTWIDE — with rated recovery points, winch access, bash plates, LED fog lights/indicators and factory safety-system compatibility
• Rockarmor M8 12,000lb winch with 7.2HP motor, 28m synthetic rope, hawse fairlead and wireless/wired controls — RAW12000
• Rockarmor R85 8.5-inch LED driving lights (pair), wiring harness and mounts — RA85LED
• Rockarmor N80 chassis-mounted dual-rail rock-slider side steps with fitting kit — SSSRA-HILN80
• Ramped Up 4x4 black 4-inch 304 stainless-steel snorkel kit — $399 component value
• Dedicated Formula 4x4 height-adjustable full lift kit with two rear leaf springs, upper control arms and geometry-correction hardware — ROGUE-002R ($2,930.20 package component value, 2% below $2,990 retail)

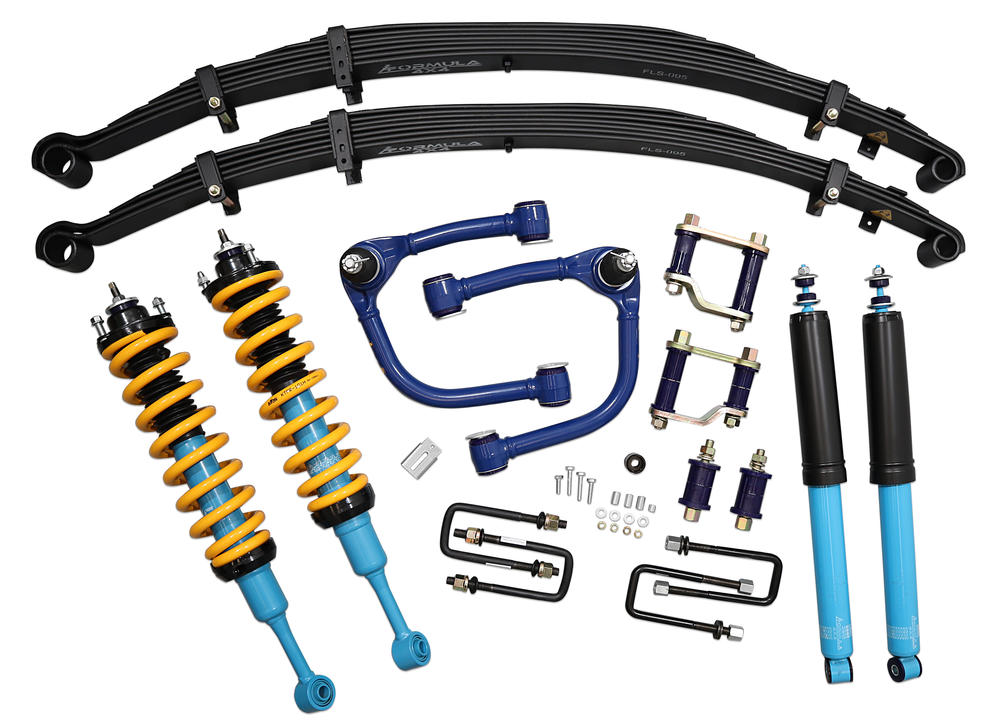

Formula lift-kit contents

• Formula height-adjustable ReadyStrut Kit × 1 — ROGUE101H-FOR-ADJ
• Formula rear shock absorbers × 2 — 50038
• SuperPro fixed-offset upper control arms × 1 — TRC6475
• SuperPro chassis-brace drop spacer kit × 1 — TRC9012
• Sway-bar relocation kit × 1 — TRC0089
• Formula leaf springs × 2 — FLS-095
• Formula U-bolts × 4 — C454-2
• SuperPro shackle, pin and bush kit × 1 — KIT219SK
• Brake-line spacer kit × 1 — SPF4855K
• Headlight adjuster clip × 1 — 10-1103

Freight or installation

Depot freight: $499 to the closest eligible freight depot. Supply variants are assigned to the complete-package depot-freight profile.

Installed at Penrith NSW 2750: exactly $2,500 above the matching supply price. Includes professional fitting and wiring of the listed components and the required high-beam piggyback connection. Wheel alignment is not included.

Estimated freight data

Estimated combined packaged weight: 275 kg across multiple cartons. Largest estimated carton: approximately 220 × 110 × 90 cm. These values are for freight handling; checkout remains the fixed $499 depot rate.

Downloads

• Formula 8000 Series ReadyStrut instructions (PDF)
• Formula 4x4 lift-kit fitting instructions (PDF)
• Rockarmor fitting-instructions library

Important: Suspension ride height varies with factory height, age and constant load. Professional installation is recommended. A post-install wheel alignment is required but is excluded from the $2,500 installation price.

Complete wide-body touring package with Rockarmor GT wide-body bull bar, Rockarmor M8 12,000lb winch, Rockarmor R85 LED driving lights, Rockarmor N80 dual-cab side steps/rock sliders, Ramped Up 4x4 black stainless snorkel and Formula 4x4 ROGUE-002R 50mm lift kit. Rear spring choices: 0–200kg, 200–400kg or 400–500kg constant rear load. Estimated combined package weight: 275kg. Supply variants use fixed $499 freight to the closest eligible depot. Installed variants are fitted and wired at Penrith NSW 2750 and exclude wheel alignment.

Rockarmor GT wide-body bull bar; Rockarmor M8 12,000lb winch; pair of Rockarmor R85 LED driving lights; Rockarmor N80 Dual Cab side steps/rock sliders; Ramped Up 4x4 black stainless snorkel; Formula 4x4 ROGUE-002R lift kit comprising ROGUE101H-FOR-ADJ ReadyStrut kit x1, Formula 4x4 50038 rear shock absorbers x2, SuperPro TRC6475 upper control arms, TRC9012 chassis brace drop spacer, TRC0089 sway-bar relocation kit, selected FLS-095 rear leaf springs x2, C454-2 U-bolts x4, KIT219SK shackle/pin/bush kit, SPF4855K brake-line spacer and 10-1103 headlight adjuster. Installed option includes professional fitment, wiring and high-beam piggyback at Penrith NSW 2750; wheel alignment is not included.

Warranty: Formula 4x4 lift kit – 5 years. Rockarmor bull bar, side steps/rock sliders, M8 winch and R85 driving lights – manufacturer warranty applies. Ramped Up 4x4 black stainless snorkel – Ramped Up 4x4 warranty applies. All warranty coverage is subject to the applicable manufacturer’s terms, correct professional fitment and intended use.
