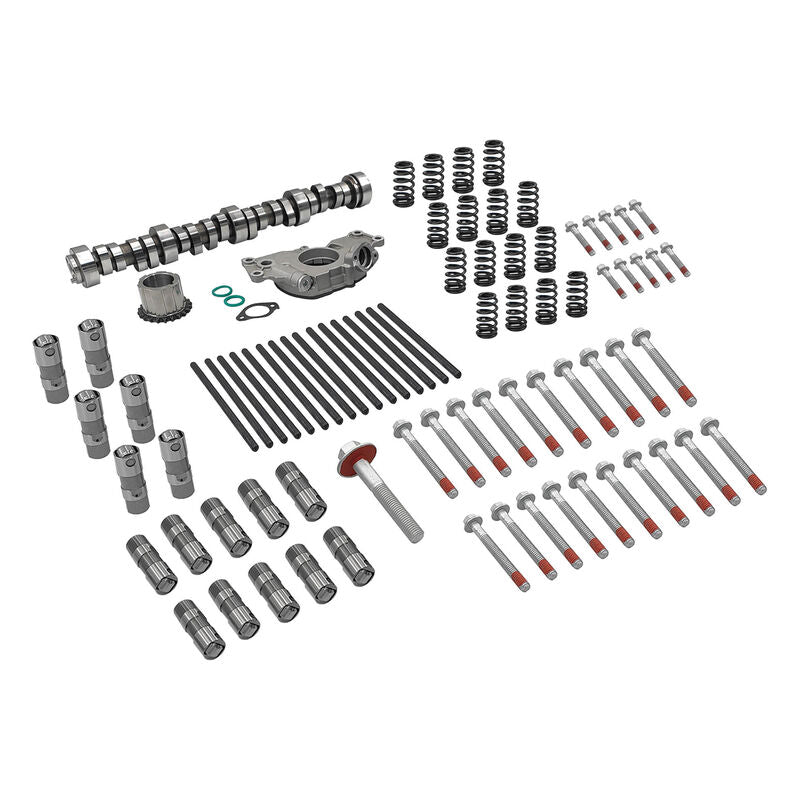

Product Overview

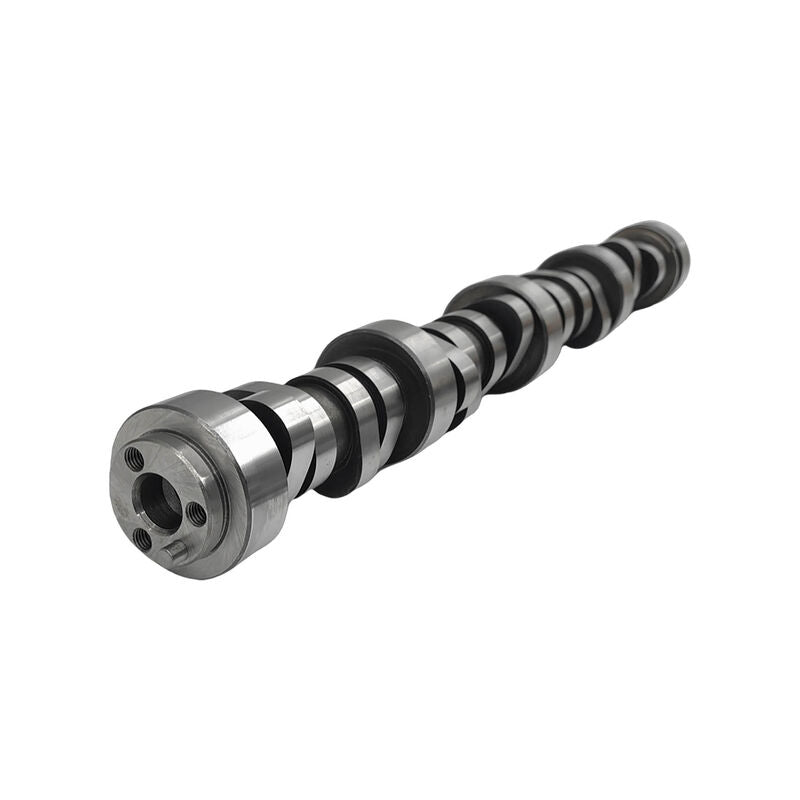

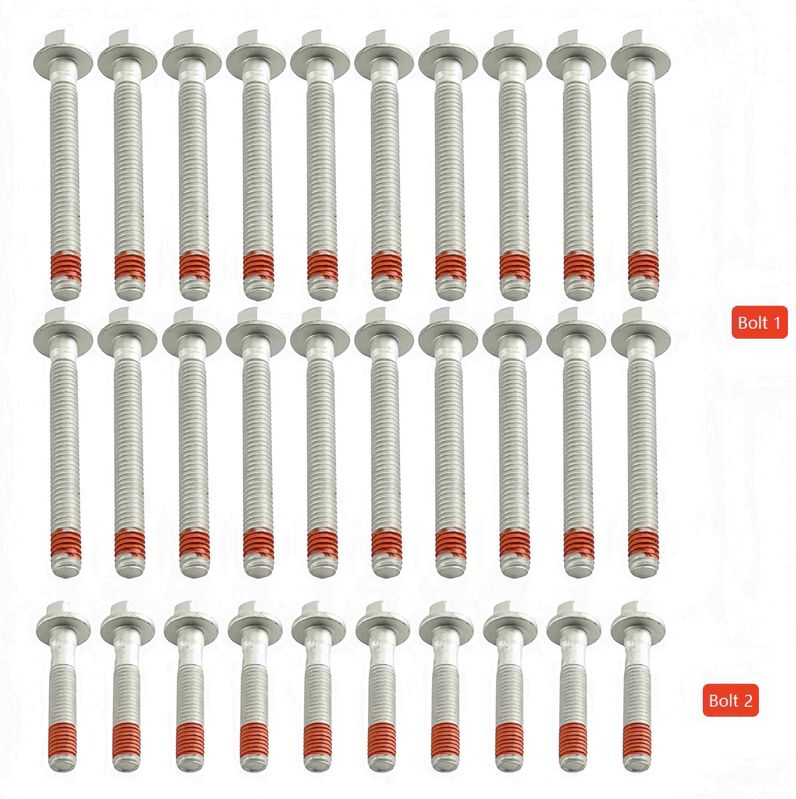

Features The Sloppy Stage 2 Camshaft Is A Cam With A Fairly Aggressive Profile. It Will Have A Nice Lopey Idle And Make Tons Of Power All While Keeping Costs Low. This Cam Is A Great Choice For Those Daily Drivers That Like A Nice Lopey/Choppy Idle. Great For Cars, Trucks, SUV's, Street Rods, And LS Swaps. There Is No Hiding This Cam As Will Will Have A Muscle Car Sounds To It. Everyone Will Take Note Of This Street Warrior. Automatic's Will Perform Best With A 2,600-2,800 Stall Converter. Size ES72220 Bolt size Bolt Critical Length: 100mm (Bolt 1); 45mm (Bolt 2) Bolt Diameter: 11mm (Bolt 1); 8mm (Bolt 2) Bolt Head Size: 15mm (Bolt 1); 10mm (Bolt 2) Bolt Thread Length: 85mm (Bolt 1); 32mm (Bolt 2) Bolt Thread Pitch: 2.00 (Bolt 1); 1.25 (Bolt 2) 12557840 Bolt size Length (mm): 104.1 mm Material: Steel Seat Type: Flange Head Thread Diameter (IN): 0.63 IN Thread Diameter (mm): 16 mm Thread Length: 2.56 IN; 65.1 mm
Specifications
| Camshaft Compatibility |
For Chevy LS-Series Engine 2004-Up |
| Not for use with AFM/DOD Camshaft RPM Range |
2200 |
| to 5400 RPM Camshaft Intake Valve Lift |
585" |
| Camshaft Exhaust Valve Lift |
585" |
| Camshaft Advertised Intake Duration |
283° |
| Camshaft Advertised Exhaust Duration |
286° Camshaft Intake Duration at .050": 228° Camshaft Exhaust Duration at .050": 230° |
| Camshaft Lobe Separation |
112° |
| Camshaft Intake Centerline |
108° |
| Camshaft Cam Gear Attachment |
3-Bolt 2 |

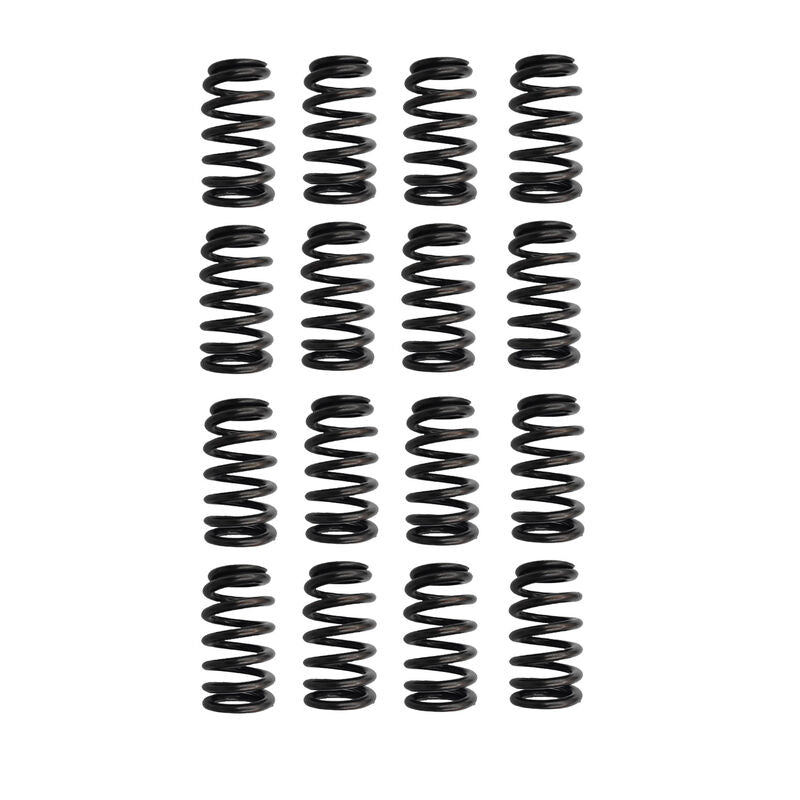

| Number of Springs Per Valve |
Single |
| Outside Diameter of Outer Spring (in) |
1.290 |
| in. Spring Coil Bind Height (in) |
1.140 |
| in. Damper Spring Included |
No |
| Spring Install Load |
130lbs |
| Spring Install Height |
1.800" |
| Spring Open Height |
1.175" |
| Spring Open Load |
318 |
| lbs Spring Rate (lbs/in) |
313 |
| lbs./in. Inside Diameter of Outer Spring (in) |
0.885 |

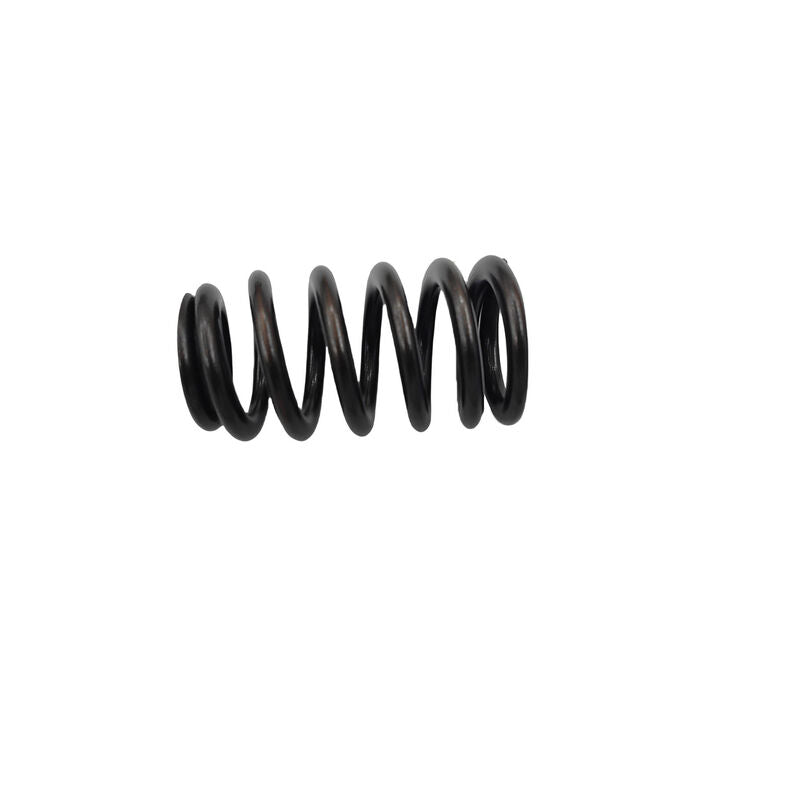

| in. Valve Spring Style |

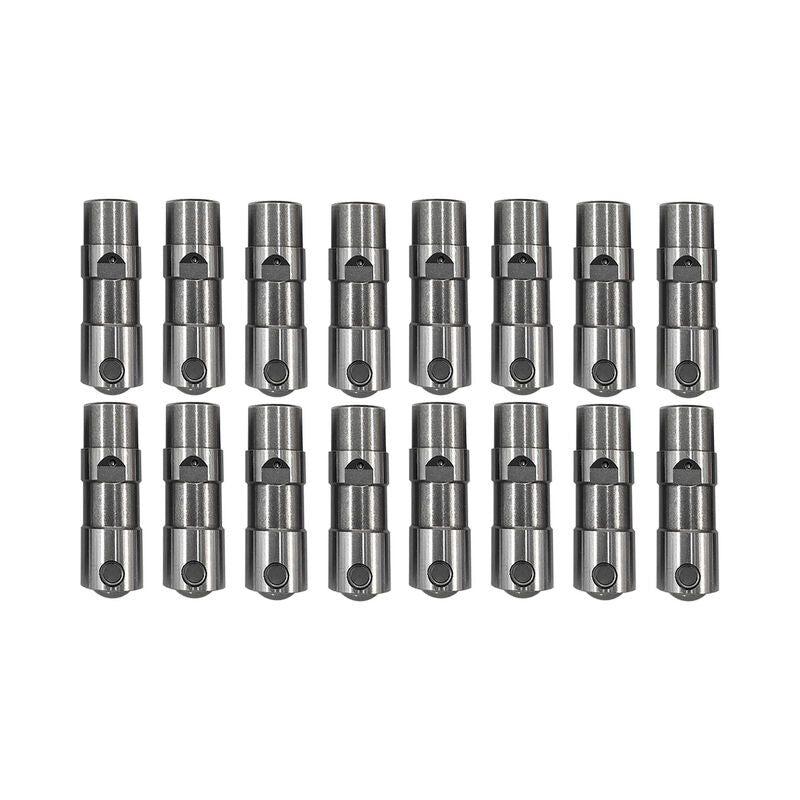

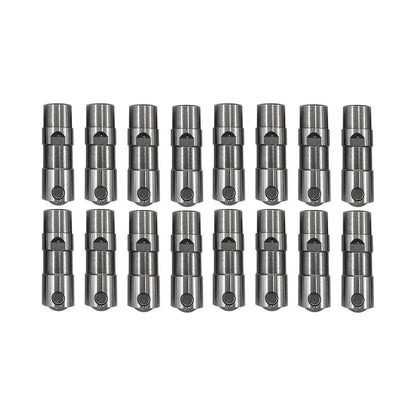

Beehive 3. Set of 16 Elgin Roller Lifters for 2004-2015 Chevy/GM LS Series Factory Roller applications without Active Fuel Management |
Vehicle Fitment
- Fit For 2004-2005 5.7L LS6 V-8
- Fit For 2004-2007 Trucks/SUVs 5.3L V-8 VIN-T,Z,B
- Fit For 2004-2010 Trucks/SUVs 6.0L V-8 VIN-U,K
- Fit For 2004-2012 Trucks/SUVs 4.8L V-8 VIN-V,C,A
- Fit For 2005-2009 6.0L LS2 V-8

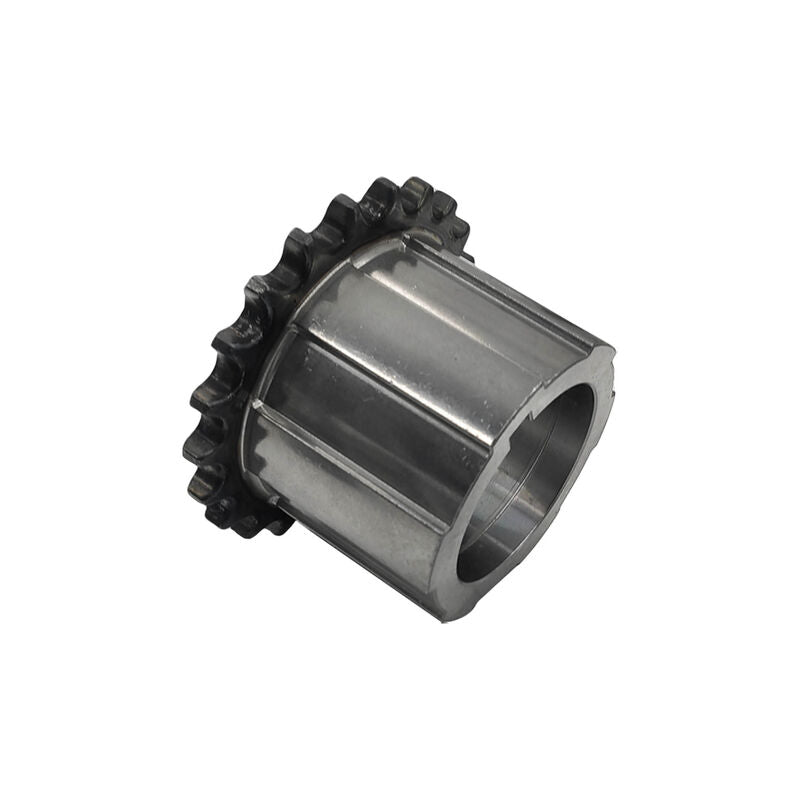

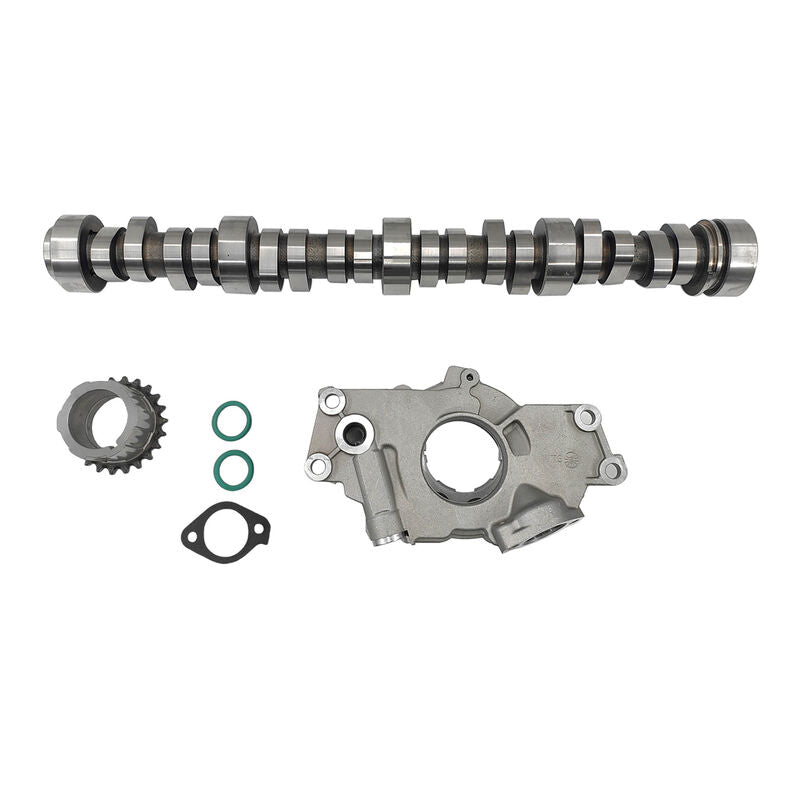

- Fit For 2006-2013 7.0L LS7 V-8 *4 putters 5/16" Diameter - 7.400" Length - .080 Wall Thickness *5 M295(12586665) Oil Pump Timing chain
- Fit For 2008-2013 6.2L LS3 V-8; Without AFM
Package Details
-
Package size (L × W × H): 60 × 35 × 16.5 cm
-
Packaged weight: 16.4 kg
-
Shipping volume: 0.03465 m³
