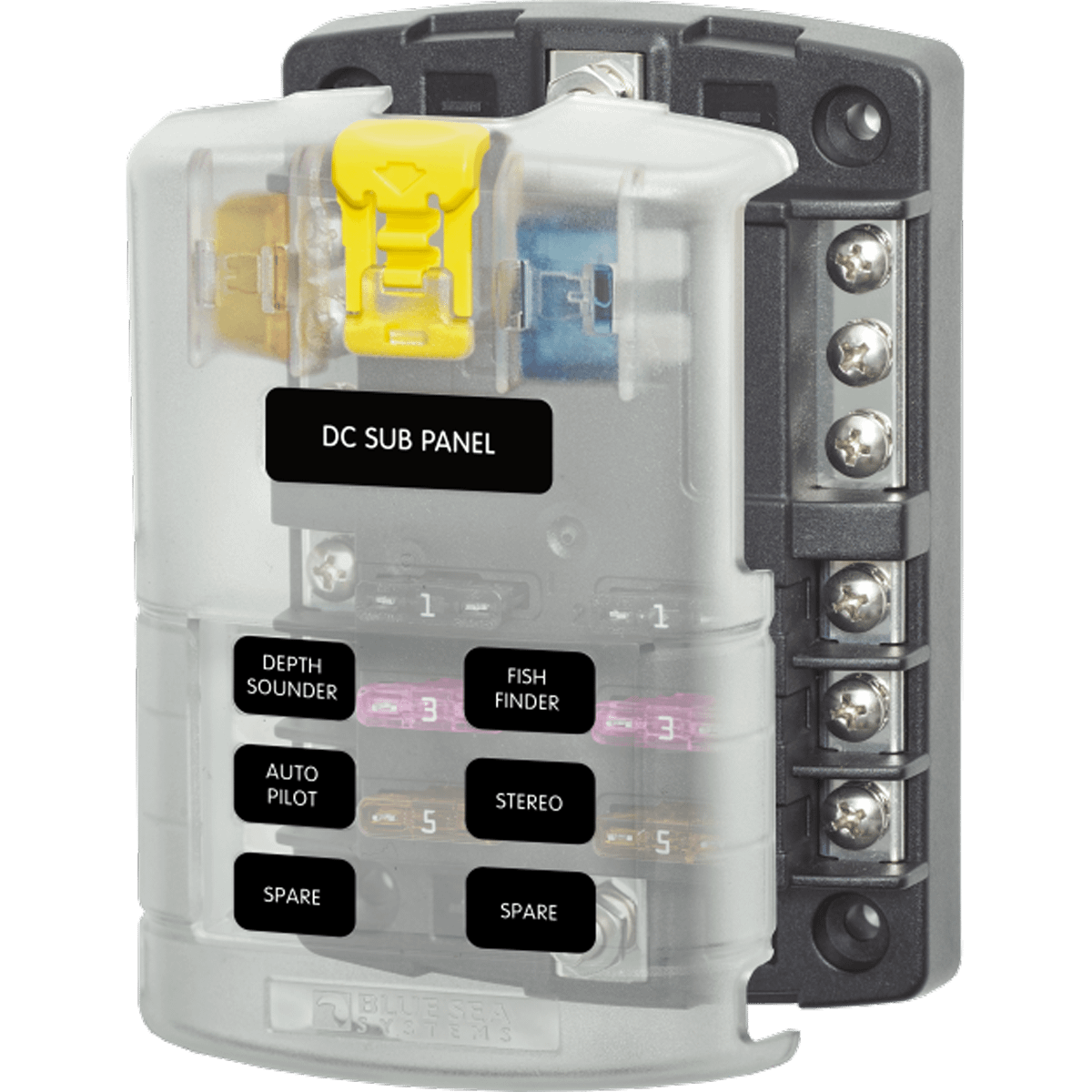

ST Blade Fuse Block – 6 Circuits with Negative Bus and Cover BS-5025B

ST Blade Fuse Block – 6 Circuits with Negative Bus and Cover BS-5025B

BS-5025B

$75.00 AUD
$75.00 AUD
Sale Sold out

Features

Consolidates branch circuits and in-line fuses

  • Positive distribution bus with #10-32 stud
  • Can be used for 24-hour circuits
  • Models available with or without a cover
  • Cover satisfies ABYC/USCG requirements for insulation, incorporates an easy to open push button latch providing easy access to fuses, storage for two spare fuses, and label recesses that accept Blue Sea Systems” Small Format Labels for circuit identification
  • Tin-plated copper buses and fuse clips
  • Accepts ring or spade type terminals
  • Accepts ATO® and ATC® fast acting blade fuses
  • Circuit labels sold separately
  • Fuses sold separately

Specifications

ST Blade Fuse Block – 6 Circuits with Negative Bus and Cover
Circuits 6
Maximum Amperage 30A per circuit
100A per block
Maximum Voltage 32V DC
Mounting 8″ Screw [M4]
Negative Bus #10-32 Stud
Positive Bus #10-32 Stud
Recommended Torque 24 in-lb (2.71 N.m)
Screw Terminal Type #8-32 with captive start lock washer
Weight 0.25 kg
