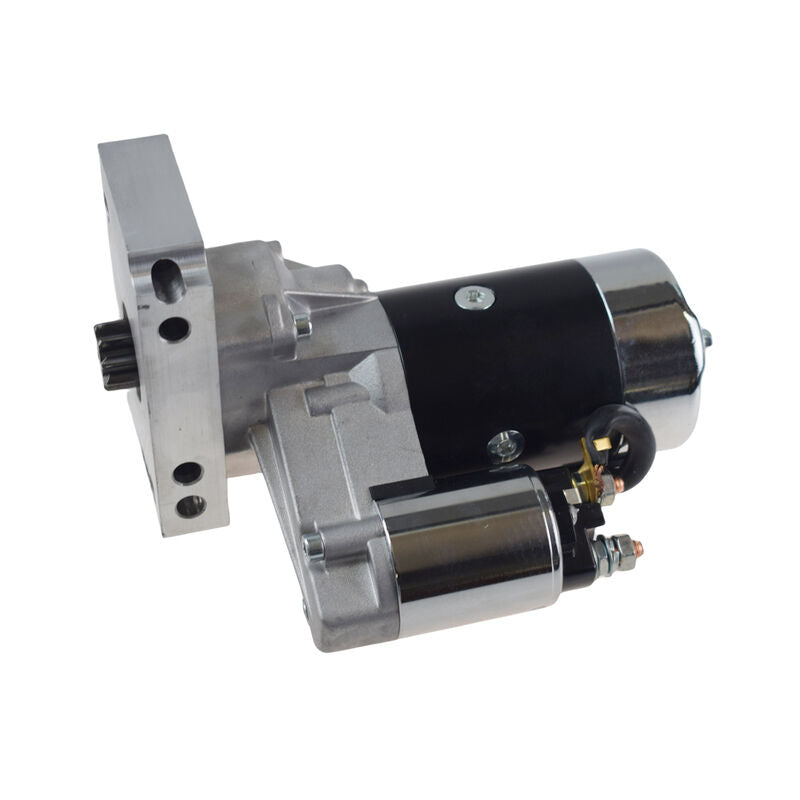

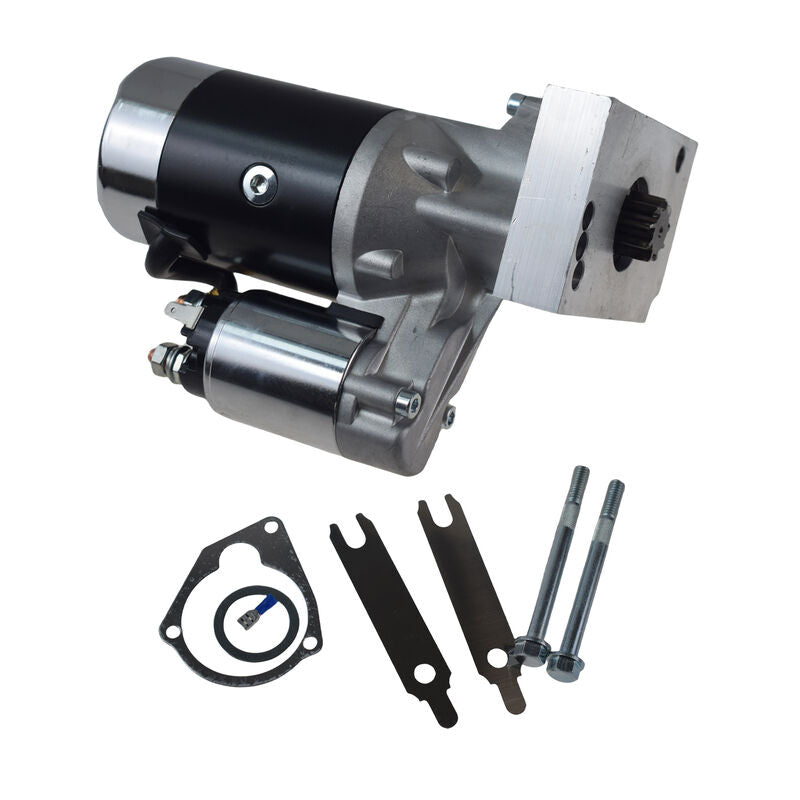

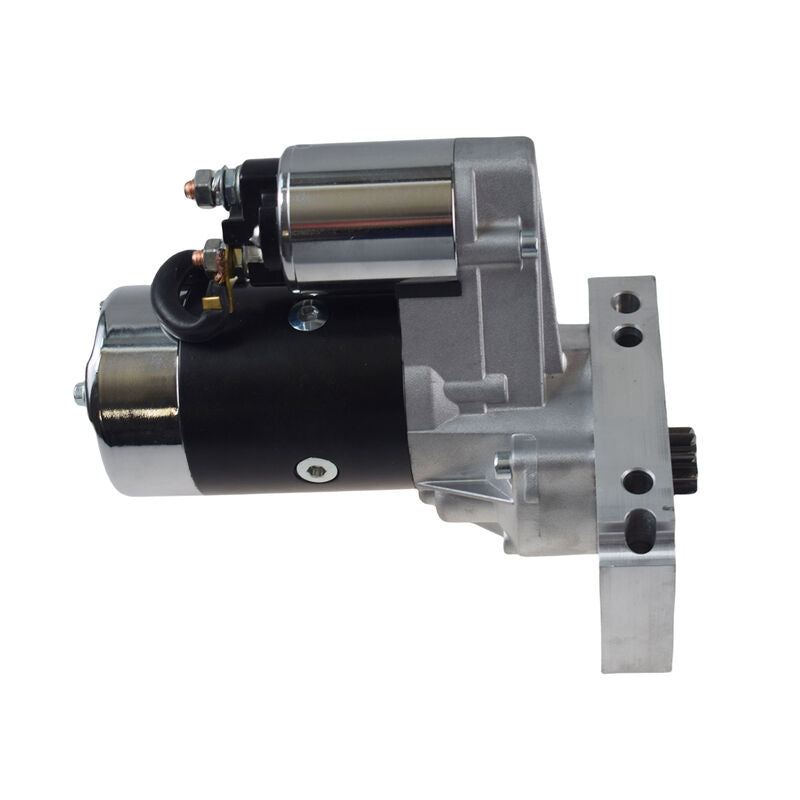

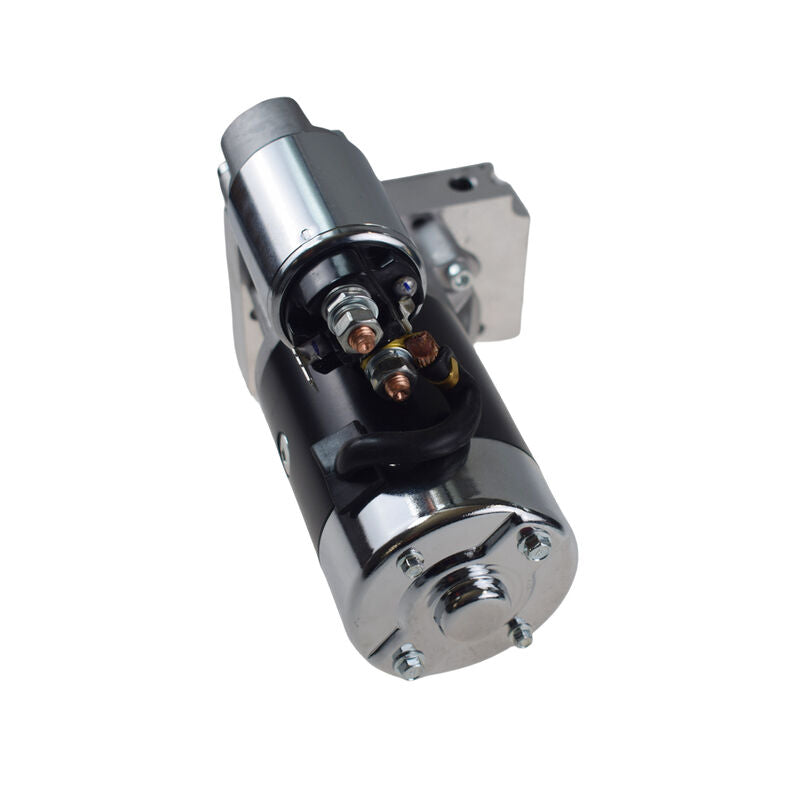

Name: Starter Motor 9 Tooth Fit For Chevy V8 Small Block, Big Block V6 3HP 305 350 454
Brand: Machter
SKU: SMOTOR-CV003
Price: 266.4 AUD
Availability: InStock

1 4

Machter

Starter Motor 9 Tooth Fit For Chevy V8 Small Block, Big Block V6 3HP 305 350 454

SKU:SMOTOR-CV003

$266.40 AUD

~~$296.00 AUD~~ $266.40 AUD

Sale Sold out

Product variants

Quantity

Product Overview

Features High Torque, High Output Gear Reduction Drive Design Spins Your Engine Over Faster. 50% More Cranking Torque Perfect For High Compression Or Supercharged Engines. Straight Bolt Mounting Plates, Works With All 153 Tooth Or 168 Tooth Ring-Gears On All Small Block And Big Block For Chevy V8 And For Chevy V6. Compact Off-Set Design, Allows More Header And Chassis Clearance. Capable Of Cranking A 15:1 Compression Engine That Is Up To 700 Cubic Inches. 3HP MOTOR Ideal For High Compression Engines Soolid Billet Aluminum Mounting Block Torate Motor Position For Additional Clearance Full Ball Bearing Design Compact Design For More Clearance Between Oil Pan & Headers Larger Field Windings,Stronger Armature, Bigger Brushes And 1 Inch Longerh Than The S1935N

Specifications

Color	Black
Material	Aluminum
Interchange Part Number	for 18493, for 18493N S114-254S1BX, S114-823SBX, SD114-254S1 Replacement for Pp106, Pe106, 91-25-1201
Hatachi	S13-65C, S13-65S1,
S13-65S1BX Type	3HP
Tooth Flywheel	153
and 168 Number of Teeth	9
Voltage	12V
Power	2KW / 2.68HP
Rotation	CW
Starter Size	for
Mini Type Gear OD	0.988in / 25.1mm
Version	High
Torque Version/3-Clocking Positions Mtg Ear 1 Hole	10mm
Unthreaded Mtg Ear 2 Hole	10mm
Unthreaded Mtg Ear 3 Hole	10mm
Unthreaded Mtg Ear 4 Hole	10mm Unthreaded

Important Notes

Please Check With Pictures / Numbers / Specs Before Ordering

Vehicle Fitment

This Starter Motor Comes With 9-Tooth
Fit For Chevy fits GMC HD Starter Motor 3HP 305 350 454
Fit For Chevy-V8 Small Block, Big Block& V6 with A/T& M/T with 153 or 168 Tooth Ring Gear OEM(s) Replaced: for Chevrolet, for GMC Motors
