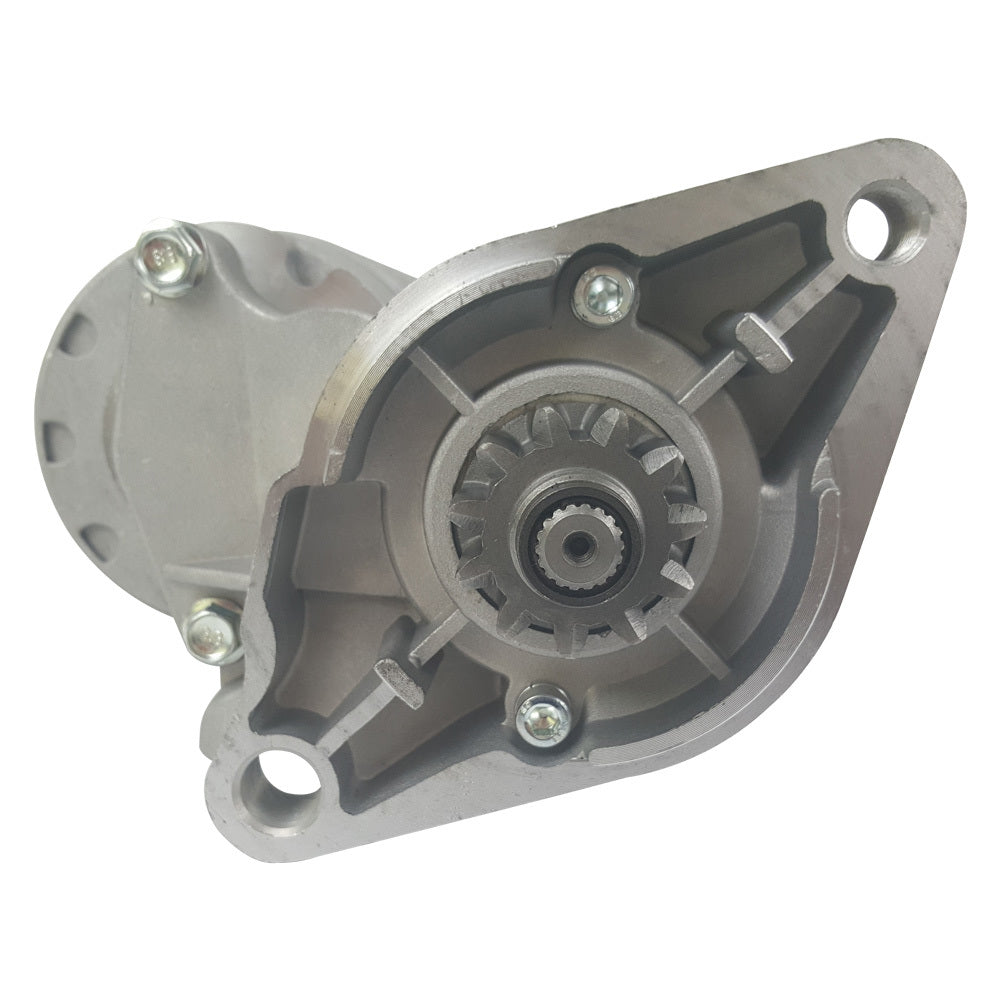

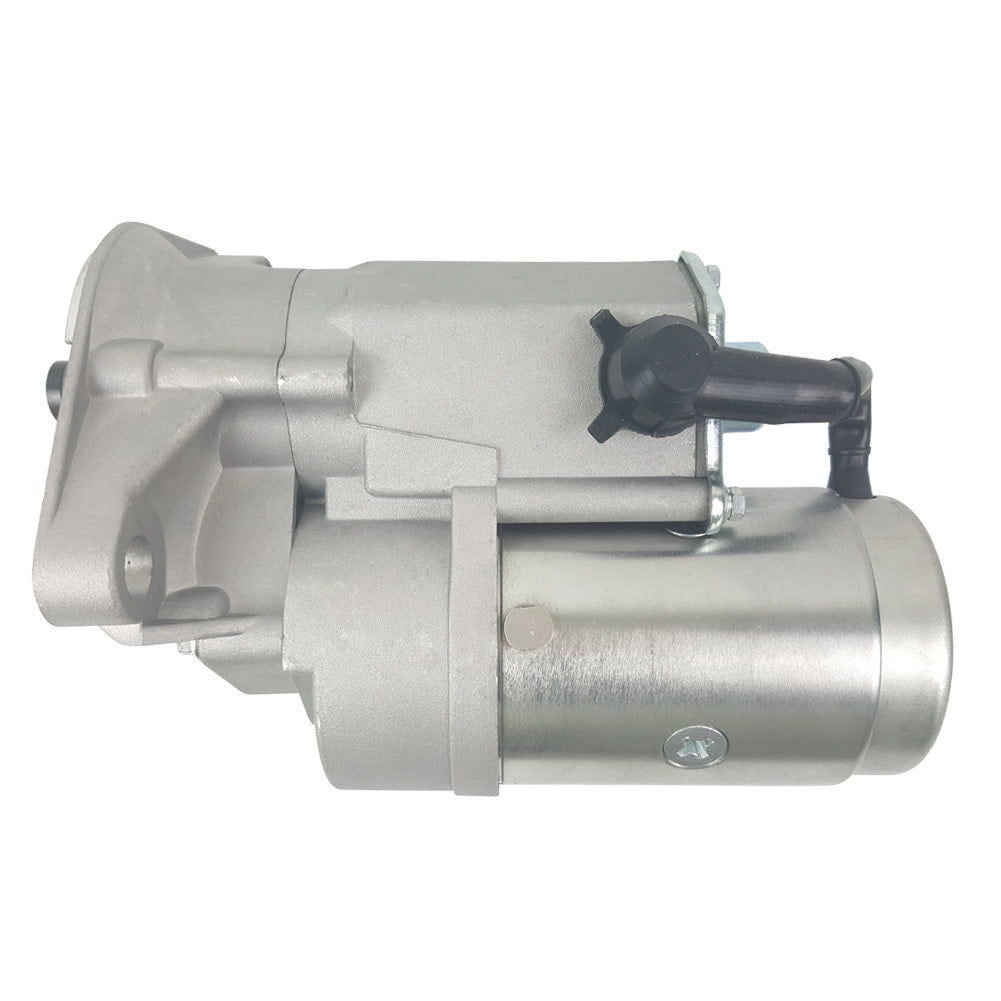

Starter Motor Fit For Toyota Hilux LN147 165 LN167 LN172 3L 5LE 3.0L Diesel

Parts for repair only

Item Number:
SMOTOR-TA003M

Features:
12V, 2.0KW, 11teeth, CW, eng. L, 2L, 3L, 5L Diesel

Suit:
Fit for Toyota 4Runner LR60 eng.2L 2.4L Diesel 84-85;
Fit for Toyota 4Runner LR61 eng.2L 2.4L Diesel 85-89;
Fit for Toyota 4Runner LR61 eng.3L 2.8L Diesel 85-96;
Fit for Toyota Blizzard eng.L 2.2L Diesel 82-83;
Fit for Toyota Bundera LJ70 eng.2L-T 2.4L Diesel 85-91;
Fit for Toyota Dyna 150 Series LY211 eng. 3L 2.8L 94-01;
Fit for Toyota Dyna 150 Series LY230R eng. 5L 3.0L 01-05;
Fit for Toyota Dyna 150 Series LY61R eng. 2L 2.4L 88-95;
Fit for Toyota Dyna 150 Series LY61R eng. 3L 2.8L 88-95;
Fit for Toyota Hi-Ace LH11, LH20, LH30, LH50, LH60, LH70 eng.L 2.2L 81-84;
Fit for Toyota Hi-Ace LH51, LH61, LH71 eng.2L 2.4L 84-89;
Fit for Toyota Hi-Ace LH103, LH113, LH125 eng.3L 2.8L 89-00;
Fit for Toyota Hi-Ace LH162, LH172, LH184R eng.5L 3.0L 00-05;
Fit for Toyota Hi-Lux LN40, LN46R, LN55 eng.L 2.2L Diesel 79-89;
Fit for Toyota Hi-Lux LN56, LN60, LN61, LN65, LN65R, LN85, LN86 eng.2L 2.4L 83-97;
Fit for Toyota Hi-Lux LN86, LN106, LN106R, LN107, LN111, LN130, LN131, LN132 including Surf eng.3L 2.8L 89-97;
Fit for Toyota Hi-Lux LN147, LN165, LN167, LN172 eng.3L, 5LE 3.0L 97-05;

Specifications:
Volts    12V
KiloWatts    2.0KW
Overall Length    230mm
Mount Hole Dia.    13.5/M12x1.5
Mt. Hole Cnt. To Cnt.    135mm
Flange Dia.    82mm
Nose Cone Length    27mm
Pinion Dia.    39.7mm
Out of Mesh Clearance    15mm
Field Hsg. Dia.    76mm
Teeth    11TH
Rotation    CW

Package:
1* Starter Motor
