Complete front geometry-correction package for standard and 1–3 inch lifted Isuzu D-Max, MU-X and Mazda BT-50 vehicles.

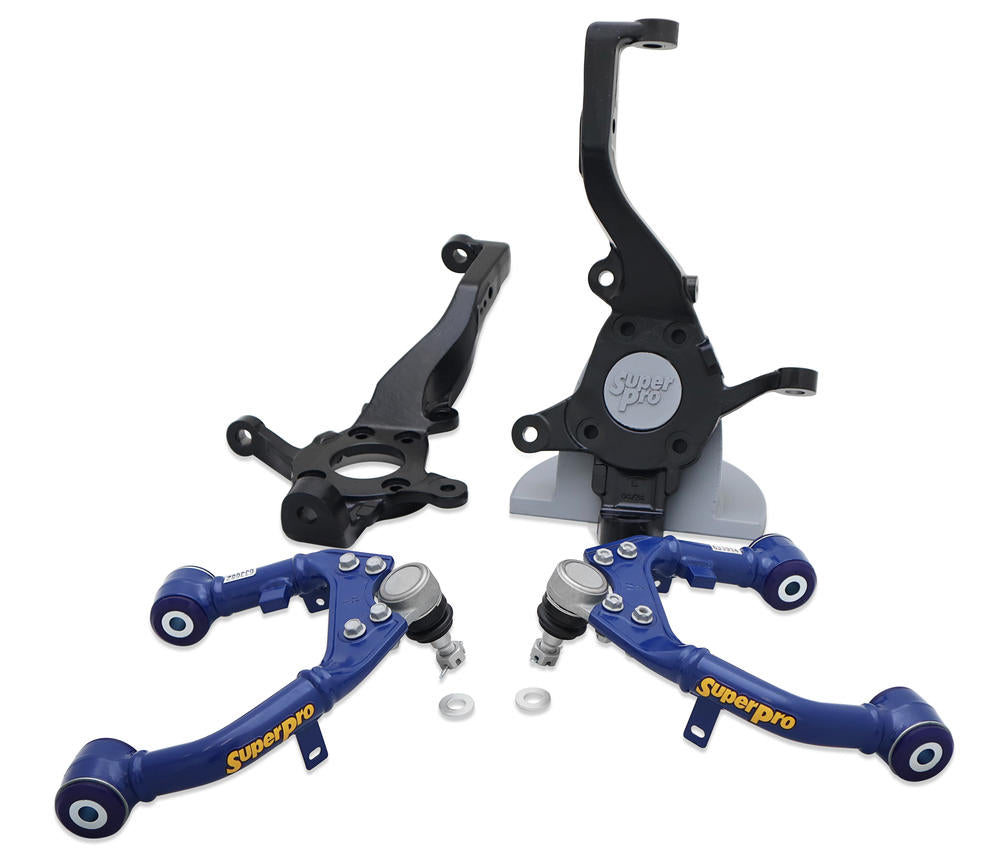

The TRC6680KIT combines SuperPro’s upgraded steering knuckles with fixed-offset upper control arms. The knuckles correct the steering pickup geometry to reduce bump steer, while the upper arms restore caster and camber after a suspension lift.

The steering knuckles are hot-forged from 4140 AISI steel, post-machined, heat-treated and black e-coated. The upper arms use high-strength steel construction, SuperPro polyurethane bushes and heavy-duty high-articulation ball joints.

What it corrects

• Bump steer and toe change through suspension travel
• Camber and caster loss caused by lifting
• Inconsistent handling and premature front-tyre wear

Fitment

Fits applicable Isuzu D-Max 2019/2020-on, Isuzu MU-X 2021-on and Mazda BT-50 2020-on models at standard height or with approximately 1–3 inches of lift. Confirm the vehicle series, drivetrain and suspension configuration before ordering. Professional installation and a post-fit wheel alignment are required.

Optional related parts

A front differential-drop kit and sway-bar relocation kit are available separately for relevant lifted applications. They are not included in this base SKU.

Downloads

Upper control arm installation instructions (PDF)

Steering knuckle installation and alignment specifications (PDF)

Manufacturer product reference

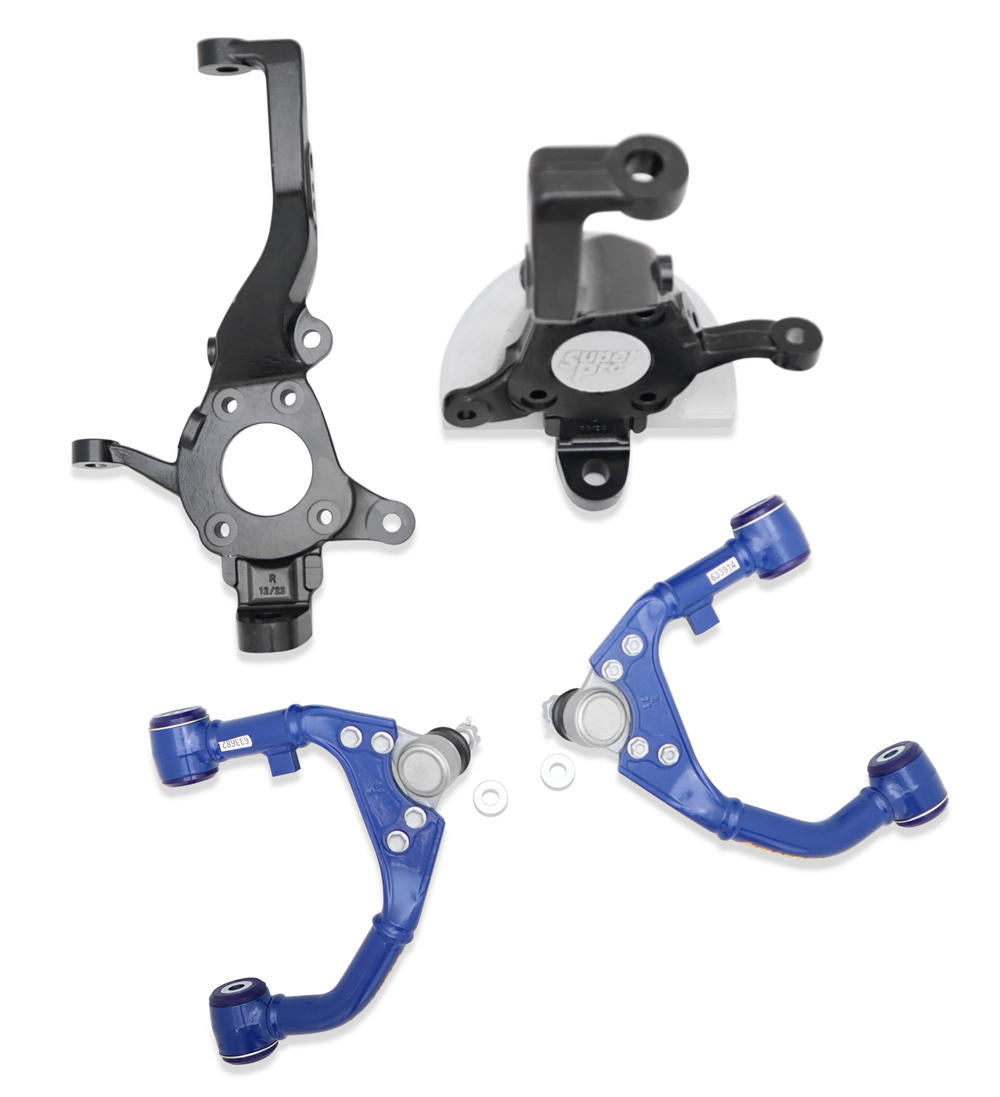

SKU: TRC6680KIT Position: Front suspension and steering Application: Standard height and 1–3 inch lifted vehicles Function: Bump-steer, caster and camber correction Components per kit: 2 steering knuckles and 2 upper control arms Upper arms: Fixed offset with heavy-duty high-articulation ball joints and SuperPro bushes Knuckles: Hot-forged 4140 AISI steel, machined, heat-treated and black e-coated Estimated packaged weight: 27 kg Estimated package dimensions: 60 × 50 × 40 cm EAN: 9317745811237 Freight class: $75 large non-leaf item

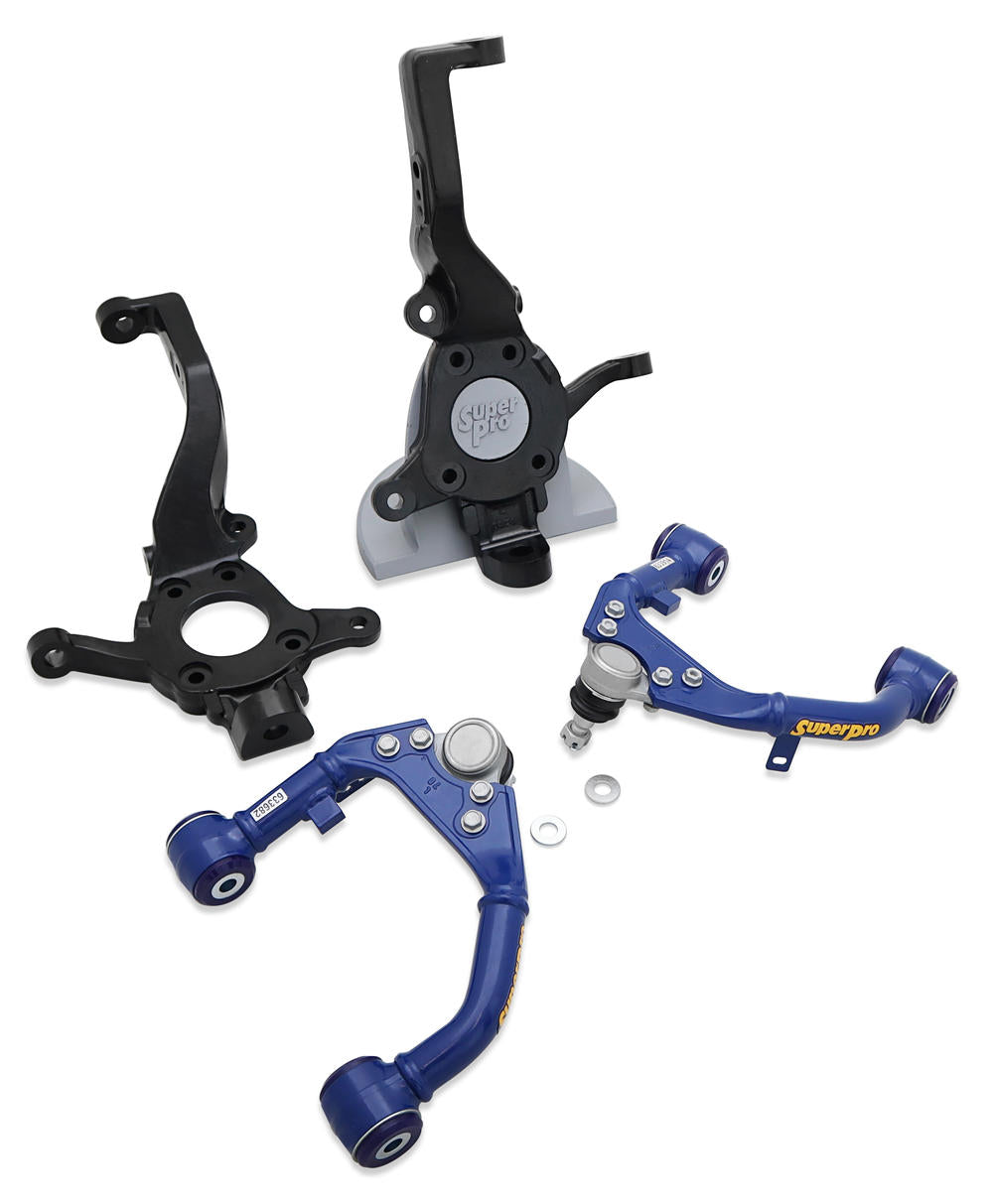

1 × left upgraded front steering knuckle 1 × right upgraded front steering knuckle 1 × left fixed-offset front upper control arm with ball joint 1 × right fixed-offset front upper control arm with ball joint SuperPro polyurethane arm bushes Required installation hardware supplied by the manufacturer Differential-drop and sway-bar relocation kits are not included

Lifetime warranty. Manufacturer terms apply.
