SuperPro TRC9023 bolt-on front differential drop kit for raised Toyota HiLux N90 models. It lowers the front differential by approximately 25mm to improve front axle and CV-joint operating angles and reduce the risk of CV bind at full droop.

Key features

• Approximately 25mm differential drop.
• Corrects CV and front-axle geometry on lifted vehicles.
• Bolt-on installation with no chassis or crossmember modification required.
• Includes vehicle-specific brackets, spacers and mounting hardware.

Fitment: Toyota HiLux N90 4WD, GUN226R/GUN227R, 2025-on. Must be fitted by a qualified person in accordance with the vehicle manufacturer’s service procedures. Recheck all fasteners after 1,000km.

Warranty: Lifetime warranty, subject to SuperPro manufacturer terms.

Downloads

• TRC9023 / Z7183-S installation guide (PDF)

SKU: TRC9023 Components per product: 3 brackets, 3 spacers, 4 bolts and 15 washers Sub-brand: Roll Control / SuperPro Differential drop: approx. 25mm EAN: 9317745080220 Warranty: lifetime

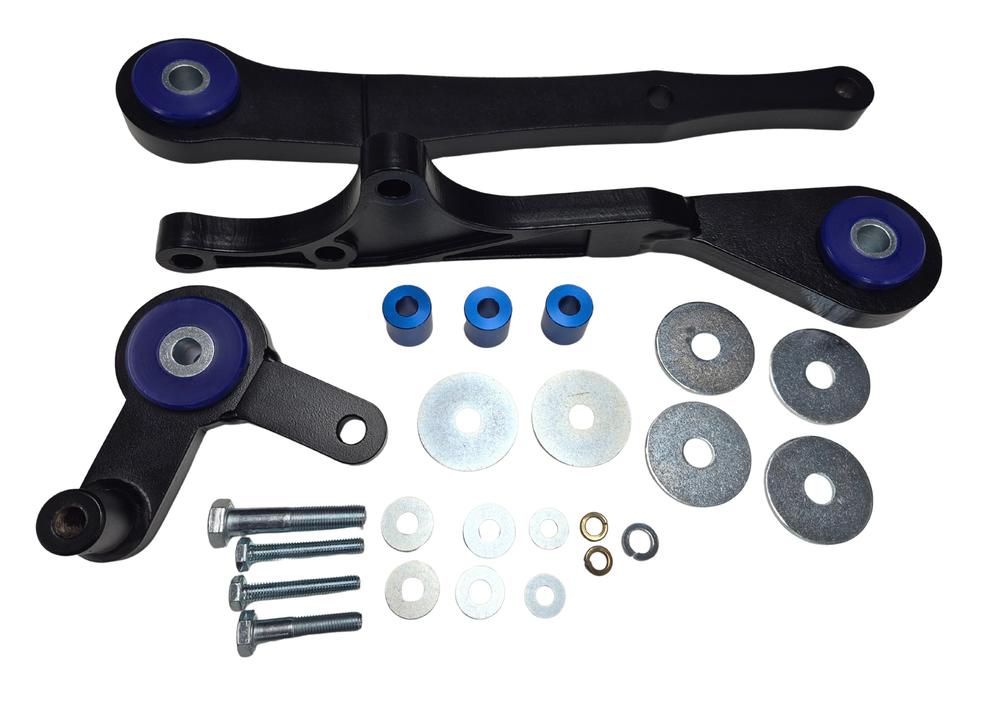

1 × DD16 bracket 1 × DD17 bracket 1 × DD18 bracket 3 × alloy spacers 4 × bolts 15 × washers 1 × grease packet

Warranty: SuperPro lifetime warranty, subject to manufacturer terms.
