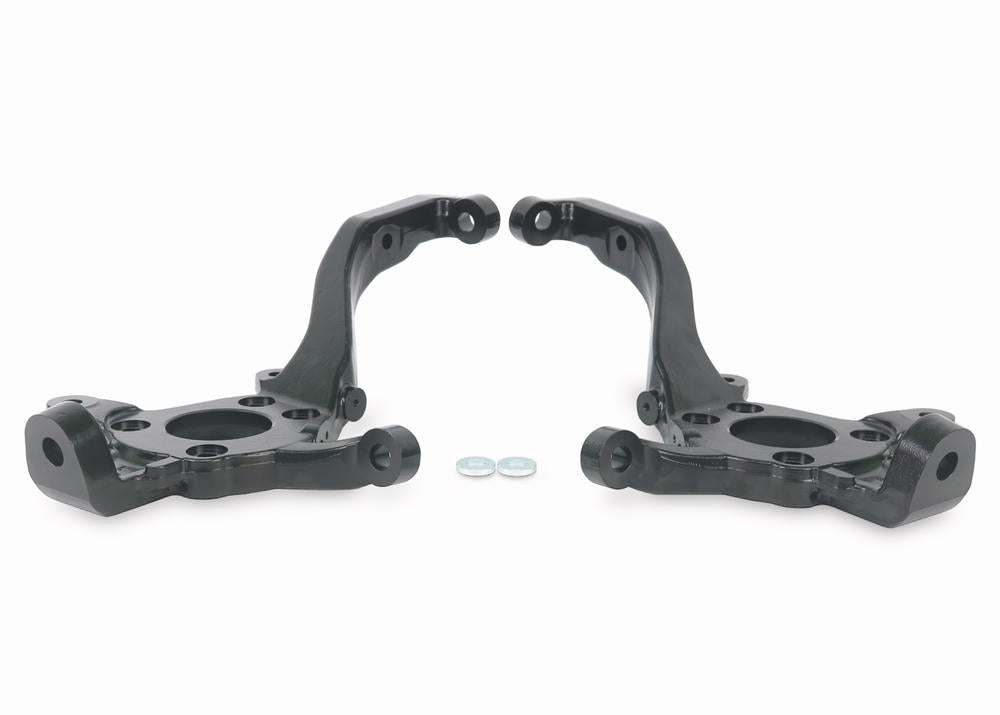

Front steering-knuckle correction kit for late-model Isuzu D-Max, MU-X and Mazda BT-50.

The SuperPro TRC6680 kit changes the steering-rack pickup geometry at the knuckle to reduce bump steer, inconsistent alignment and premature tyre wear. It suits standard-height and raised vehicles and is designed as a direct OE-style replacement without chassis modification.

The paired knuckles are manufactured from hot-forged 4140 AISI steel, post-machined, heat-treated and finished with a black e-coat for corrosion resistance. SuperPro states that the design is VSB 14 approved, ADR compliant and FEA tested to a 1650 kg front axle load.

Key features

• Corrects front bump-steer geometry
• Suitable for standard height and approximately 30–50 mm raised vehicles
• Direct replacement using the vehicle’s existing hubs, seals and related hardware
• Hot-forged 4140 AISI steel construction
• Includes left and right steering knuckles

Fitment

Fits applicable Isuzu D-Max 2019/2020-on, Isuzu MU-X 2021-on and Mazda BT-50 2020-on models. Professional installation and a post-fit wheel alignment are required. For a raised vehicle, SuperPro recommends pairing this kit with TRC6590 upper control arms for the greatest geometry correction.

Downloads

TRC6680 installation instructions and alignment specifications (PDF)

Manufacturer product reference

SKU: TRC6680 Position: Front steering knuckles Application: Standard height and approximately 30–50 mm raised vehicles Function: Bump-steer and front steering-geometry correction Components per kit: 2 knuckles Construction: Hot-forged 4140 AISI steel, machined, heat-treated and black e-coated Manufacturer testing: FEA tested to 1650 kg front axle load Packaged weight: 18 kg Package dimensions: 54 × 24 × 48.5 cm EAN: 9317745801870 Freight class: $75 large non-leaf item

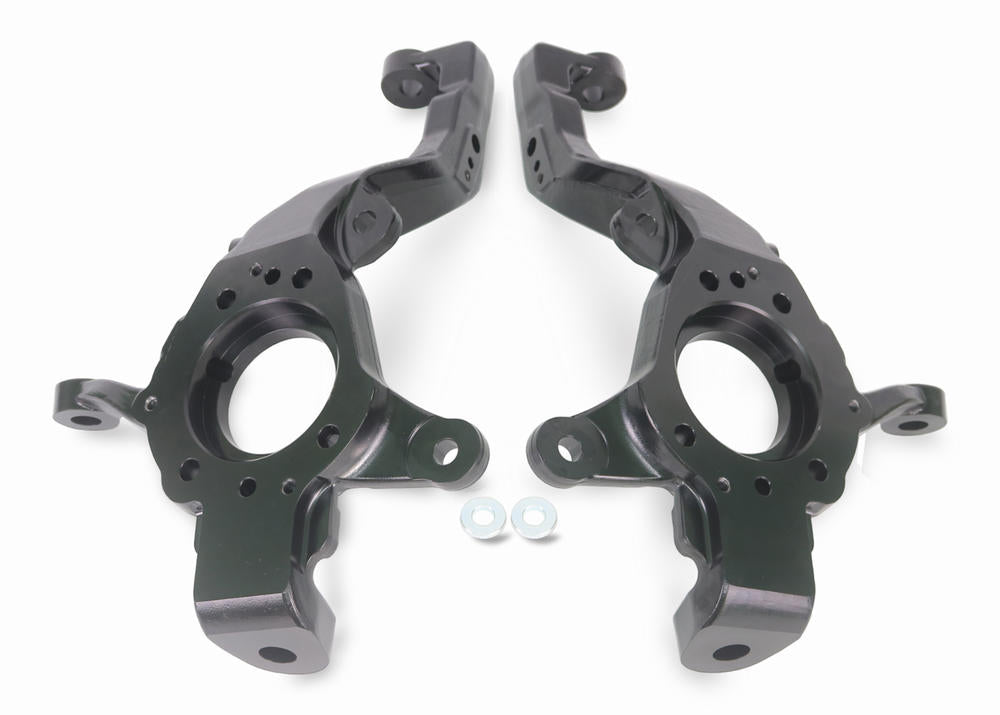

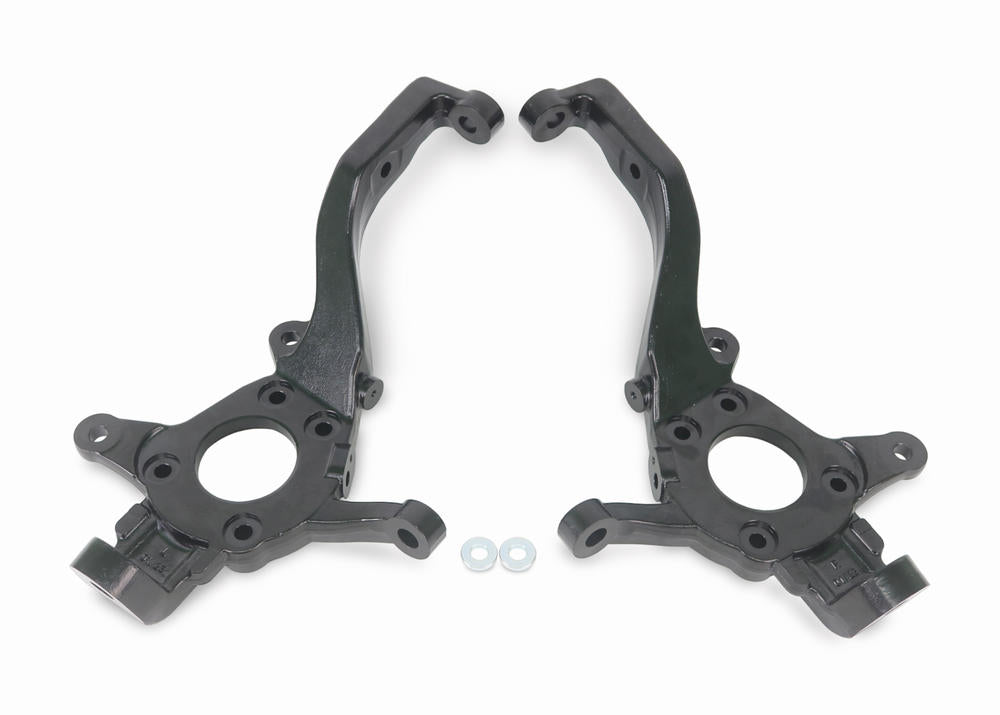

1 × left upgraded front steering knuckle 1 × right upgraded front steering knuckle Supplied knuckle installation washers and hardware listed by the manufacturer Existing wheel hubs, seals and related OE parts are transferred during installation

Lifetime warranty. Manufacturer terms apply.
