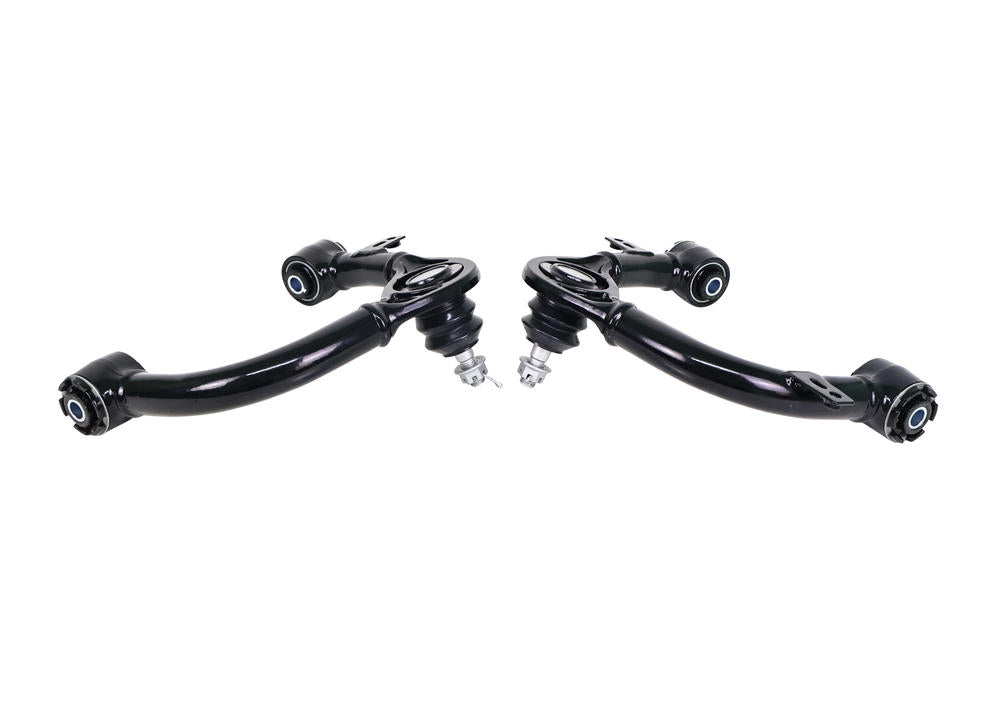

Whiteline fixed-offset front upper control-arm kit for lifted Mitsubishi Triton MV and Nissan Navara D27 4WD applications. The matched left- and right-hand arms restore useful wheel-alignment range and increase strut clearance after a suspension lift.

Features

• Designed for vehicles lifted approximately 30–70 mm.
• Provides approximately +2.5 to +3.5 degrees of caster correction at a nominal 50 mm lift.
• Provides up to approximately 1.5 degrees of additional negative-camber correction at a nominal 50 mm lift.
• Fixed-offset design with included ball joints.
• Maintenance-free GIIRO bushing technology.

Fitment

Confirm the vehicle, suspension lift and wheel-alignment requirements before ordering. Professional installation and a post-fit wheel alignment are required. Recheck all fasteners after 1,000 km or one month.

Downloads

Z7057-W Installation Guide (PDF)

SKU: KTA491 Fitting position: Front axle, upper control arms Correction type: Fixed offset Recommended lift range: Approximately 30–70 mm Caster correction: Approximately +2.5 to +3.5 degrees at nominal 50 mm lift Camber correction: Up to approximately 1.5 degrees additional negative camber at nominal 50 mm lift Ball joints: Included Components per product: 2 arms Sub-brand: Whiteline Performance EAN: 9319924483457

1 × left-hand fixed-offset upper control arm assembly 1 × right-hand fixed-offset upper control arm assembly 2 × fitted ball joints Fitted GIIRO bushings and required arm hardware

Warranty: Lifetime, subject to manufacturer terms, correct application and professional installation.
