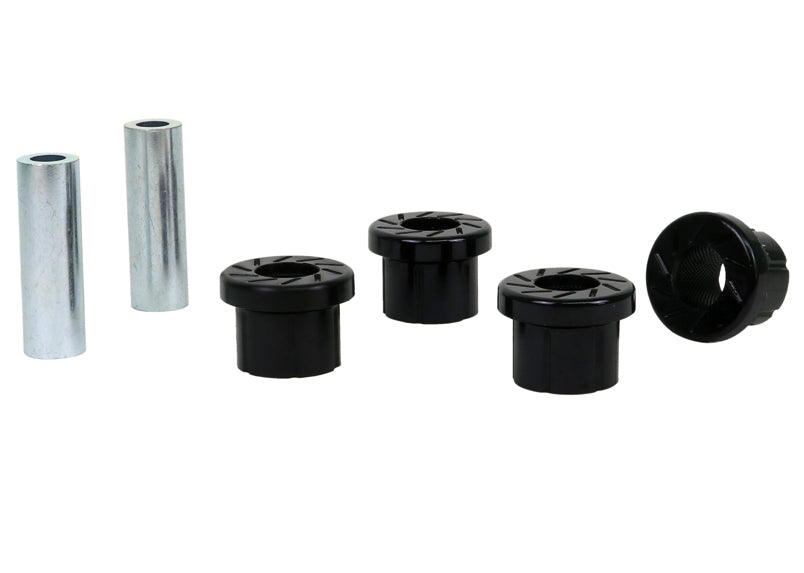

Whiteline W73453 rear leaf-spring front-eye bushing kit for compatible Mitsubishi Triton MQ–MV and Nissan Navara D27 4WD applications. The four synthetic-elastomer bushes and two steel tubes replace worn original front-eye bushes to improve rear-axle location and suspension control under load, towing and off-road use.

Features

• Complete front-eye set: four bushes and two tubes.
• High abrasion resistance and load-bearing capacity.
• Resistant to oil, grease, ozone and weathering.
• Internal grease reservoirs support correct lubrication and long service life.

Dimensions

• Bush outside diameter: 41.2 mm.
• Bush inside diameter: 25.4 mm.
• Bush body length: 38.4 mm.
• Flange thickness: 10 mm.
• Flange outside diameter: 53.5 mm.
• Tube size: 25.4 × 14.5 × 80 mm.

Fitment

Confirm the leaf-spring front-eye application and vehicle before ordering. Professional installation is recommended. Lubricate the specified internal bores and working faces, tighten at normal ride height and recheck after installation.

Downloads

Z5300 Spring-Eye and Shackle Bushing Installation Guide (PDF)

SKU: W73453 Fitting position: Rear axle, leaf-spring front eye Components per product: 4 bushings, 2 tubes Bush outside diameter: 41.2 mm Bush inside diameter: 25.4 mm Bush body length: 38.4 mm Flange thickness: 10 mm Flange outside diameter: 53.5 mm Tube size: 25.4 × 14.5 × 80 mm Packaged weight: 0.631 kg Sub-brand: Whiteline Replacement EAN: 9319924440481

4 × Whiteline 68701 rear leaf-spring front-eye bushings 2 × 25.4 × 14.5 × 80 mm steel tubes 1 × grease sachet

Warranty: Lifetime, subject to manufacturer terms, correct application and professional installation.
